Data List

DATA LIST

HINT: Performing the DATA LIST using the intelligent tester allows the relays and actuators, and other items to operate without removing any parts. Performing the DATA LIST as the first step of troubleshooting is one of the methods to save labor time.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch to the ON position.

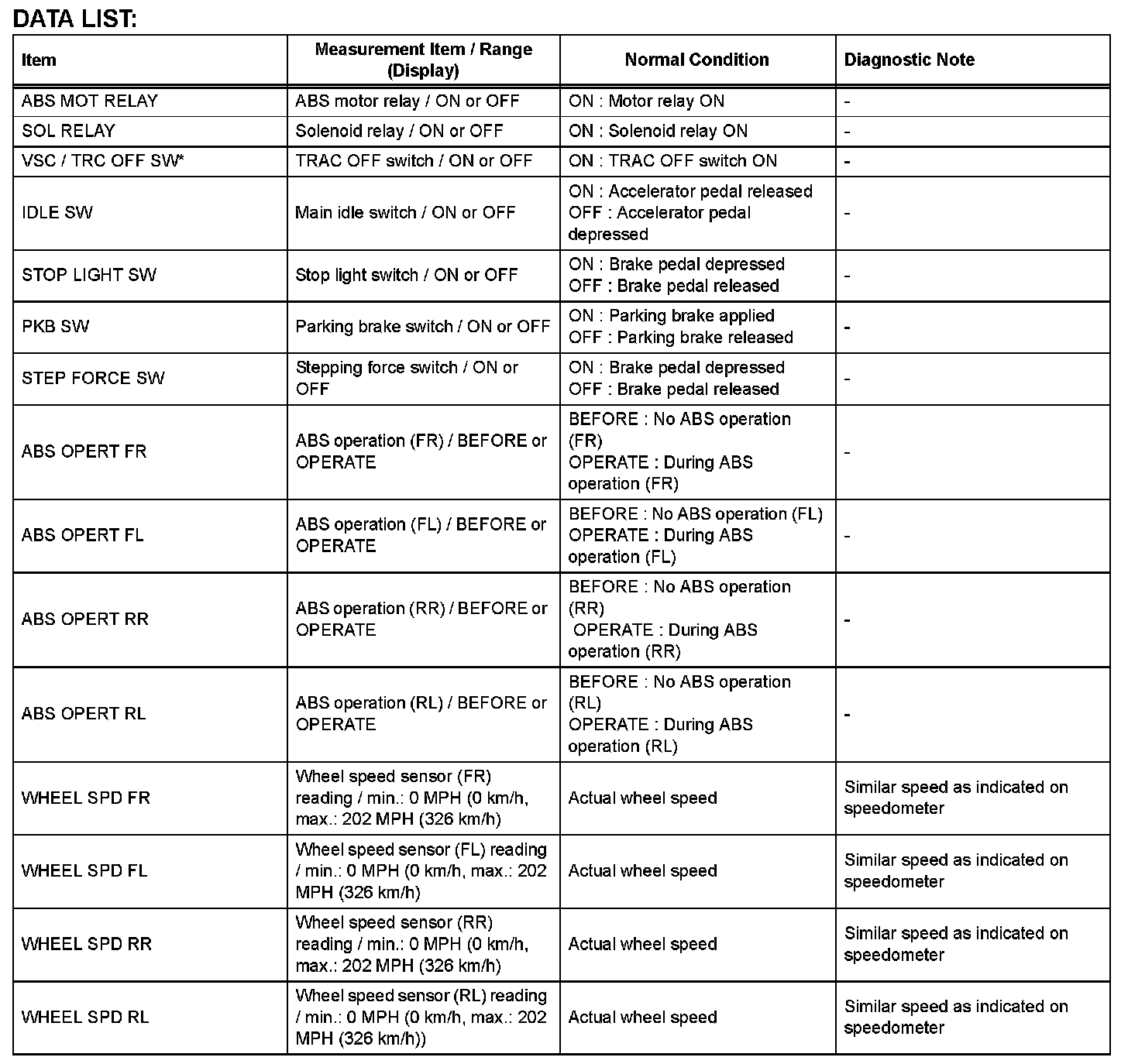

Part 1:

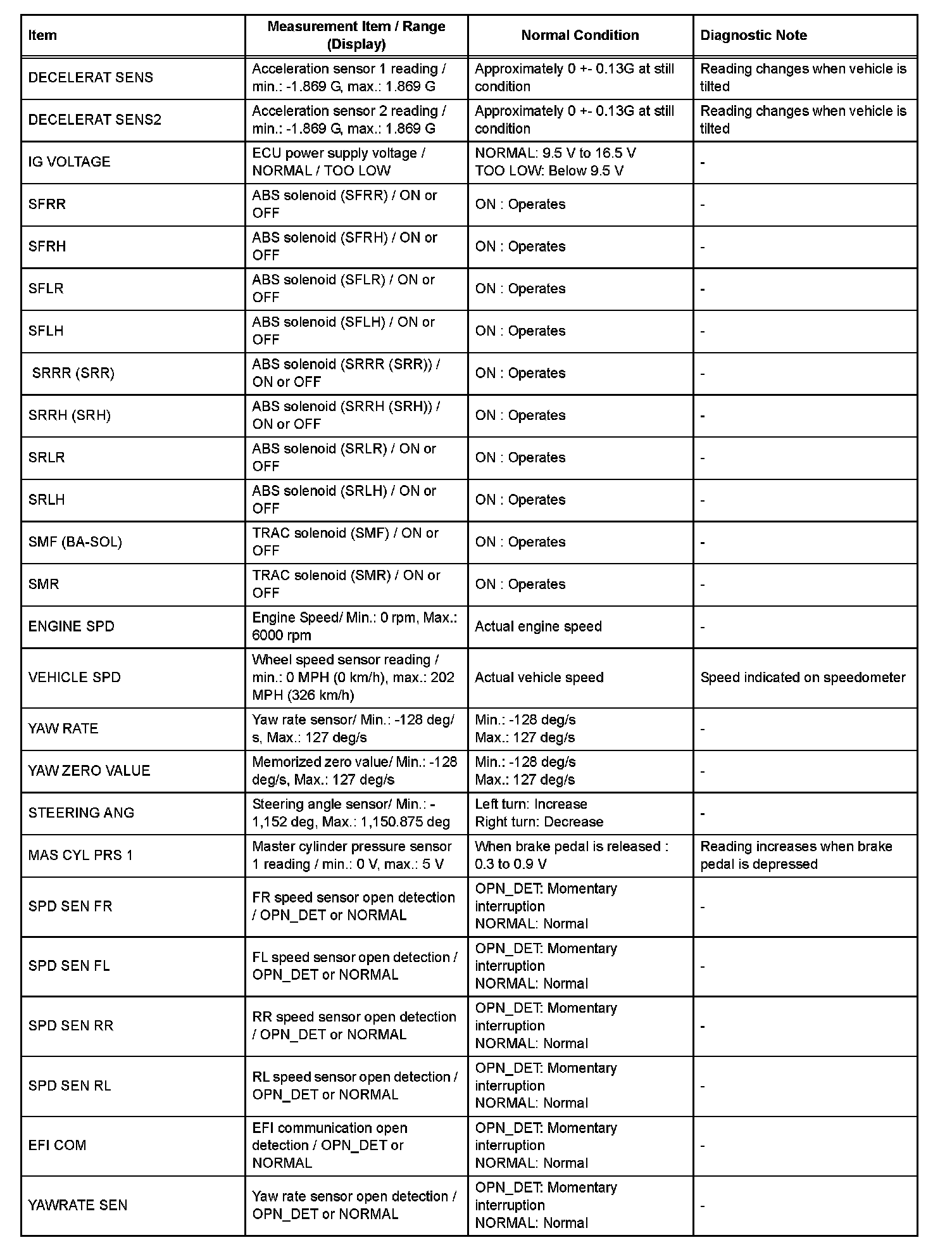

Part 2:




Part 3:




c. According to the display on the tester, perform the "DATA LIST".

HINT: The ignition switch must be turned to the ON position to proceed to the Data List using the intelligent tester.
