IG Power Source Circuit
IG Power Source CircuitDESCRIPTIONThis is the main power source supplied to the A/C amplifier when the ignition switch is turned to the ON position. The power source is used for operating the A/C amplifier and servo motor, etc.
Wiring Diagram:
Step 1:

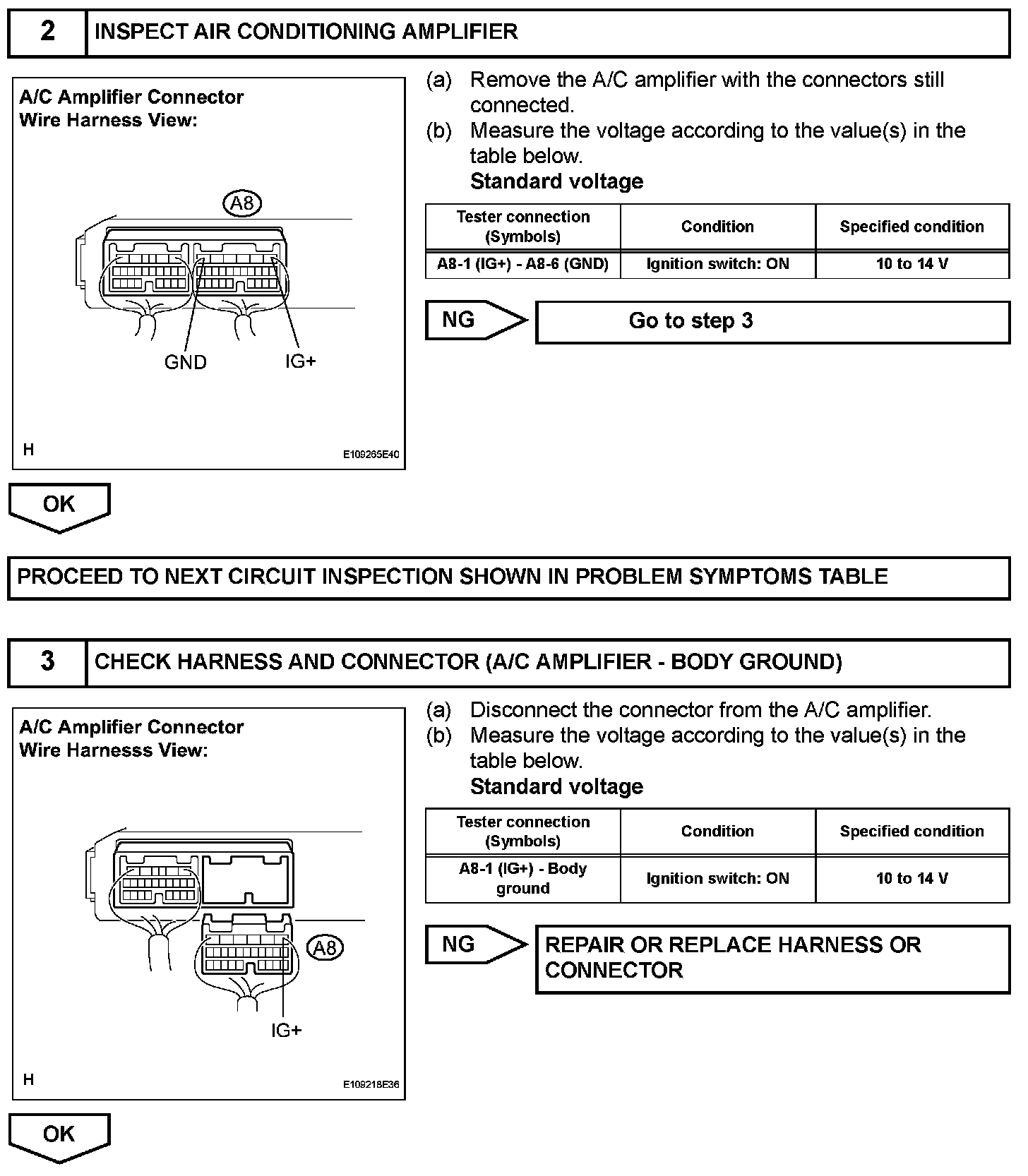

Step 2-3:
Step 4:
INSPECTION PROCEDURE
