Check CAN Bus Line (CAN-L) For Short to +B
Check CAN Bus Line (CAN-L) for Short to +BDESCRIPTION
A short to the +B is suspected in the CAN bus wire when the resistance between terminals 16 (BAT) and 14 (CANL) of the DLC3 is below 6 kohm.

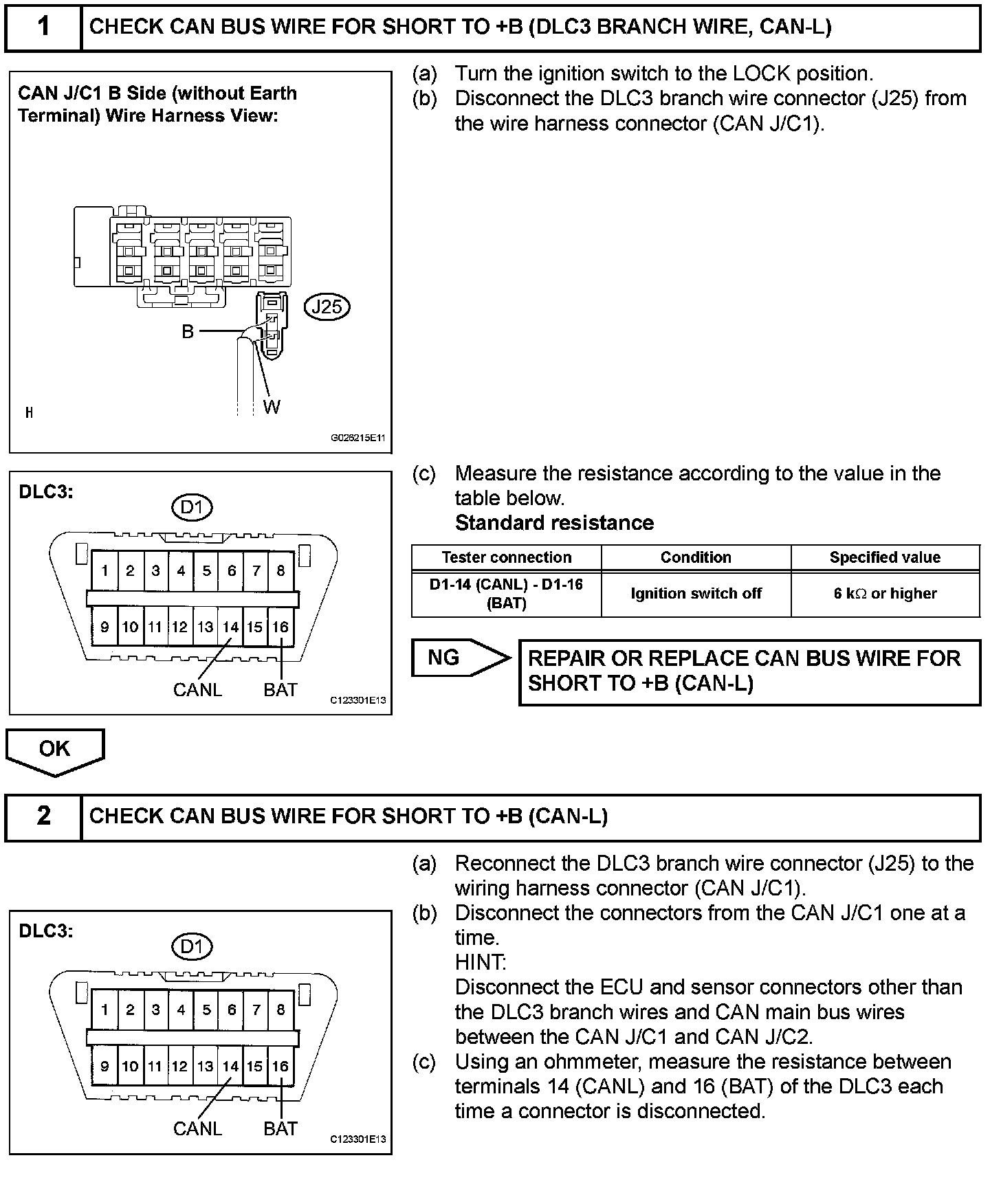

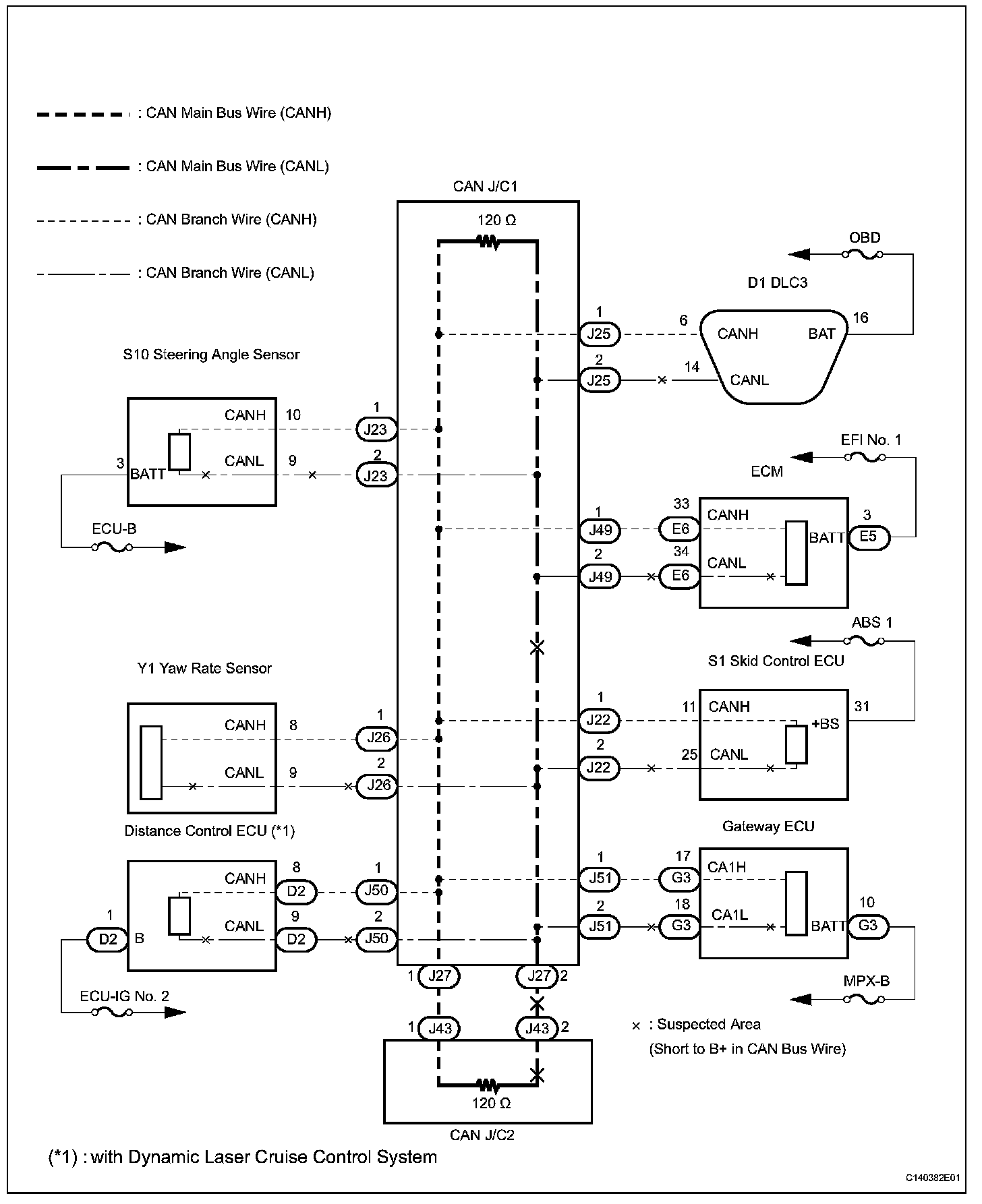

Wiring Diagram:
Step 1-2:

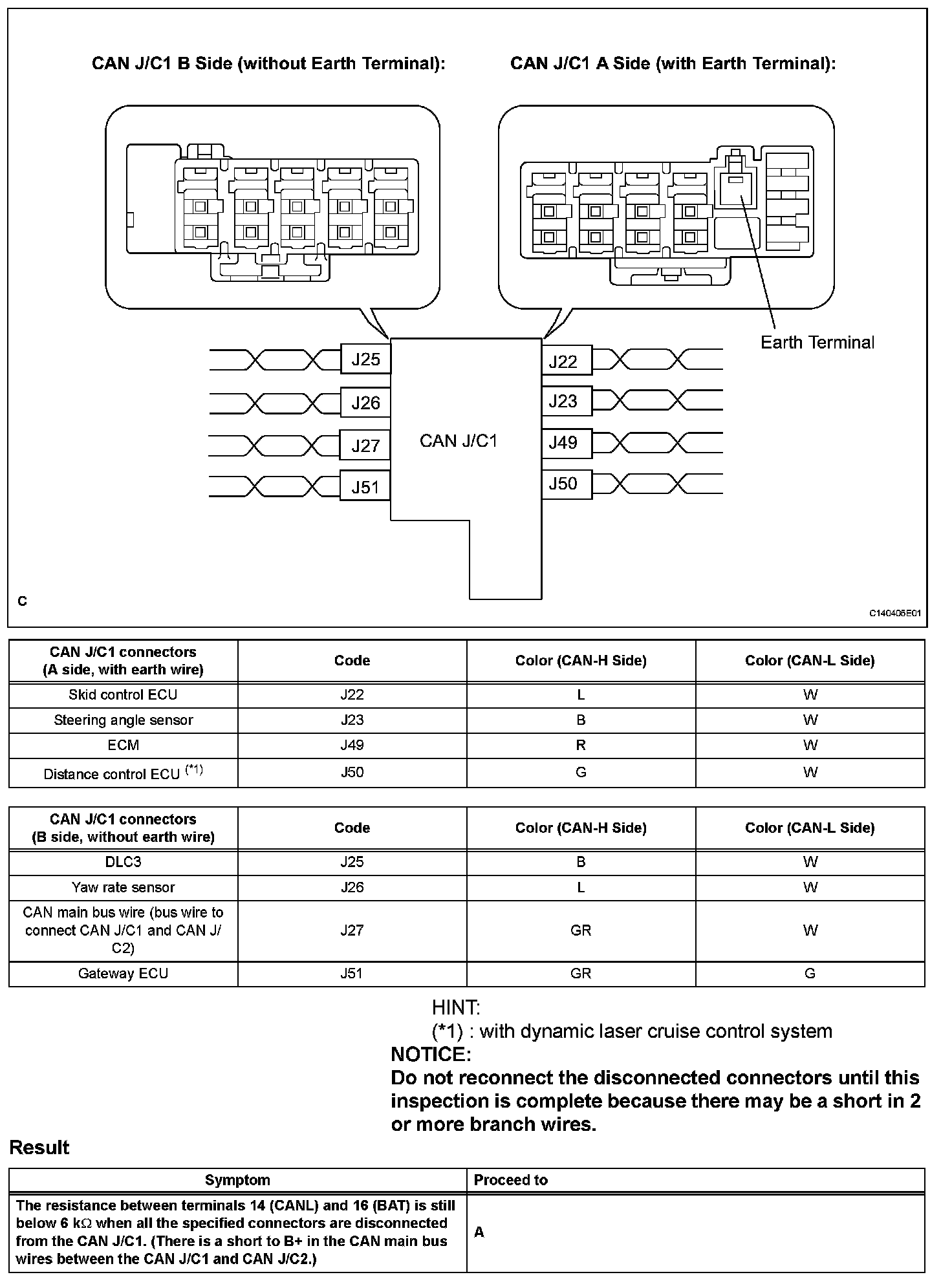

Step 2 (Continued):

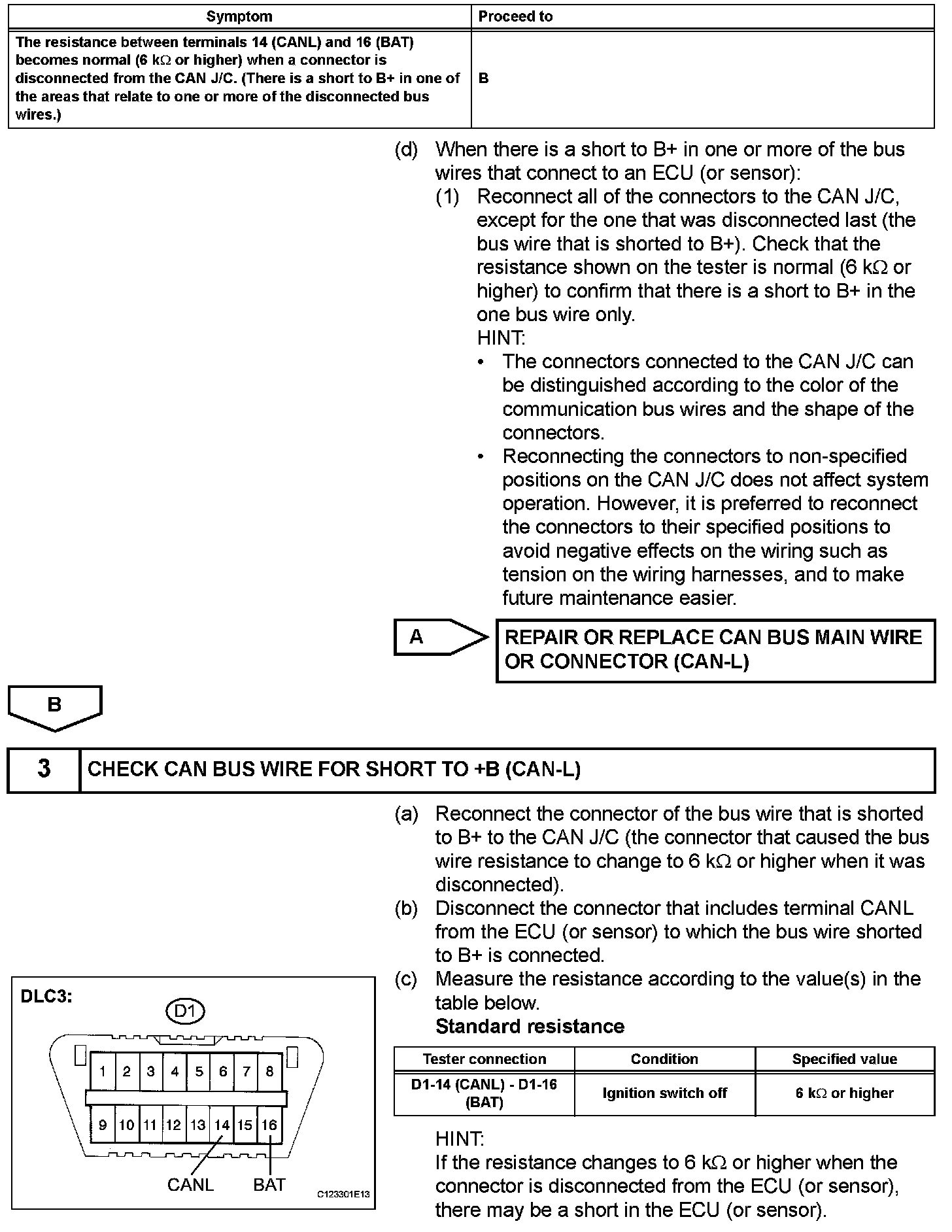

Step 2 (Continued):
Step 2 (Continued)-3:
Step 3 (Continued):
INSPECTION PROCEDURE
HINT: Identify the connector to be checked by its color of the wire and shape of the junction on the CAN J/C because the locations of the connectors to the CAN J/C are confusing.
