Check CAN Bus Line (CAN-L) For Short to GND
Check CAN Bus Line (CAN-L) for Short to GNDDESCRIPTION
A short to GND is suspected in the CAN bus wire when the resistance between terminals 4 (CG) and 14 (CANL) of the DLC3 is below 200 ohms.

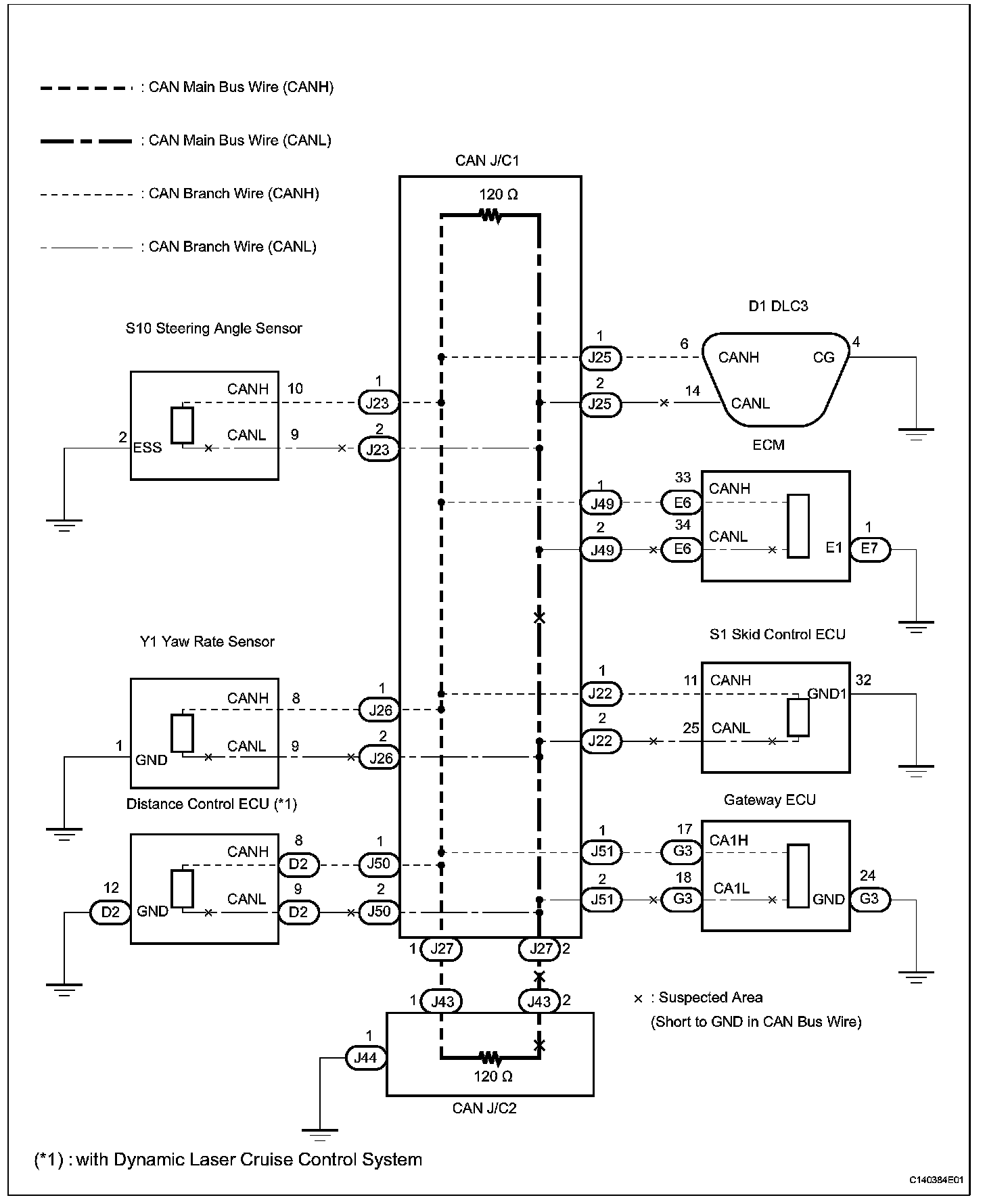

Wiring Diagram:

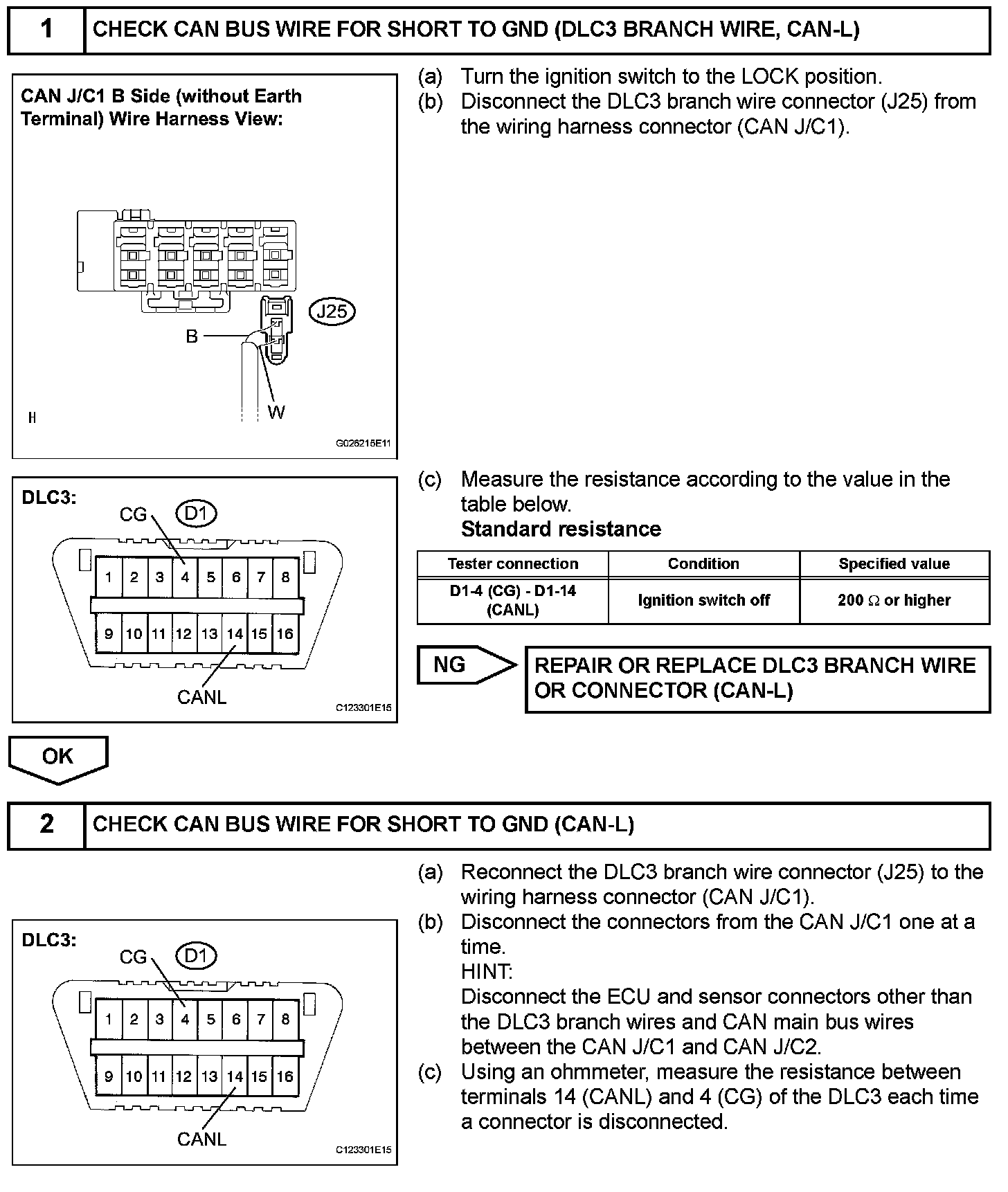

Step 1-2:
Step 2 (Continued):

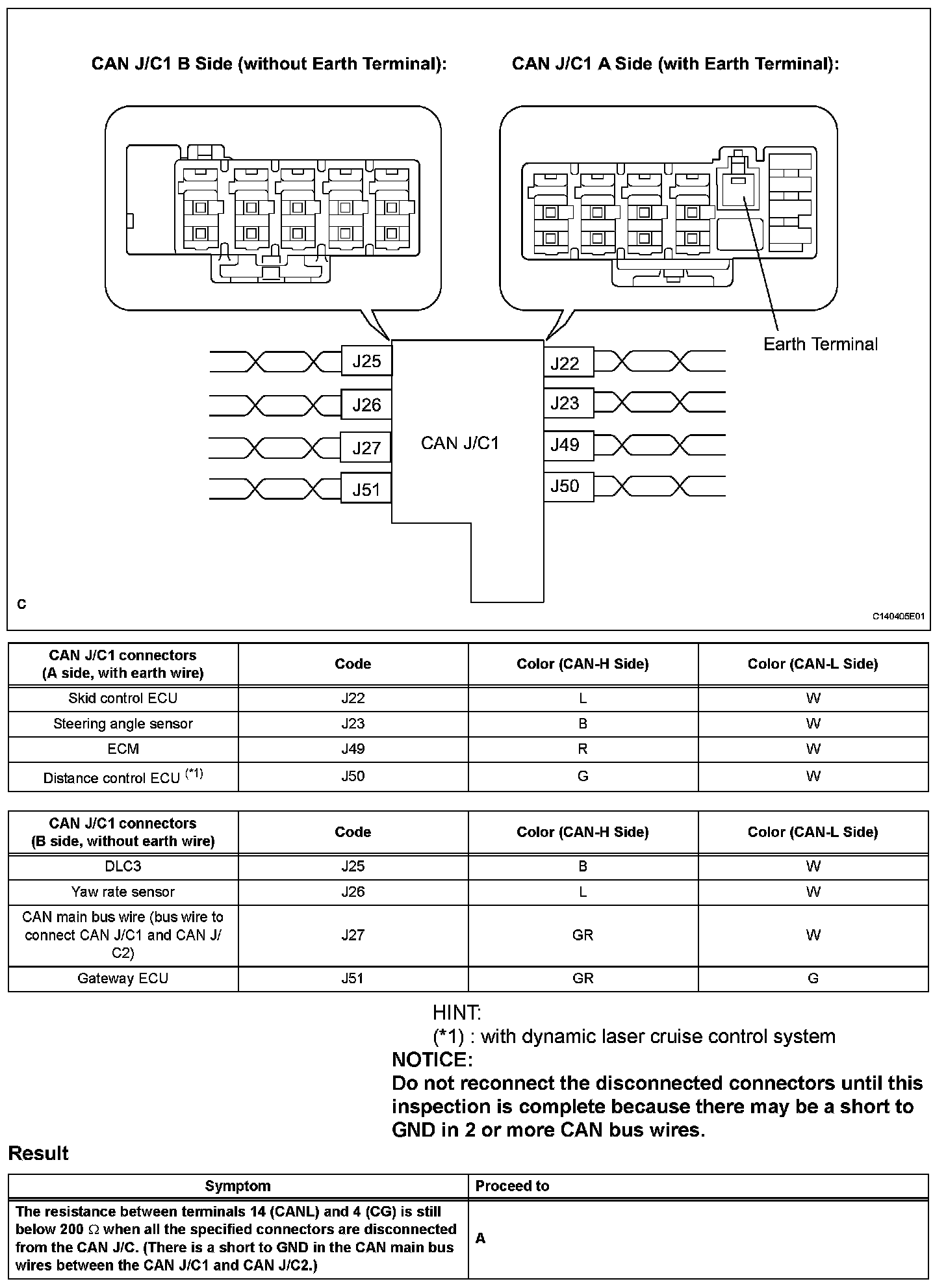

Step 2 (Continued):

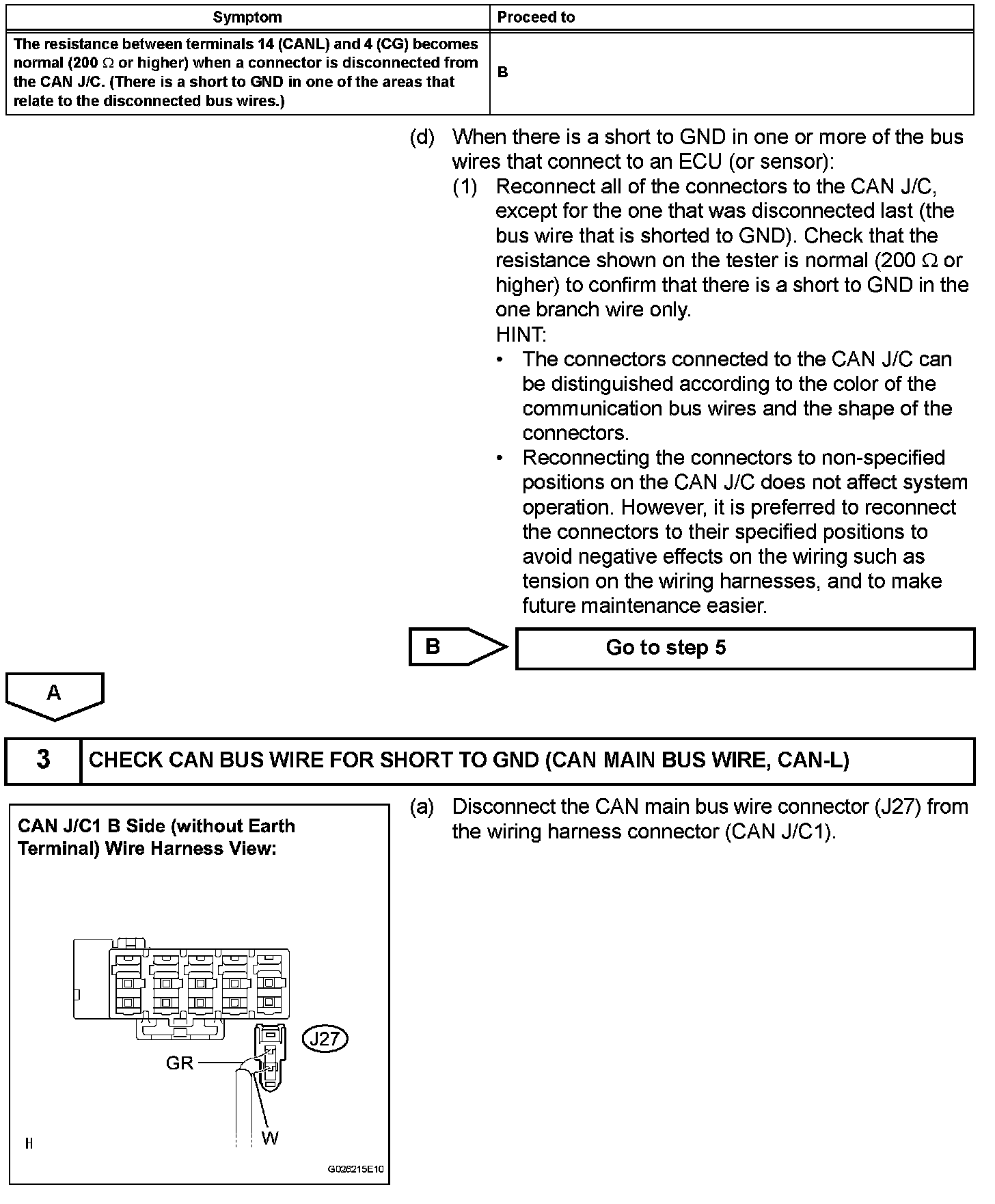

Step 2 (Continued)-3:

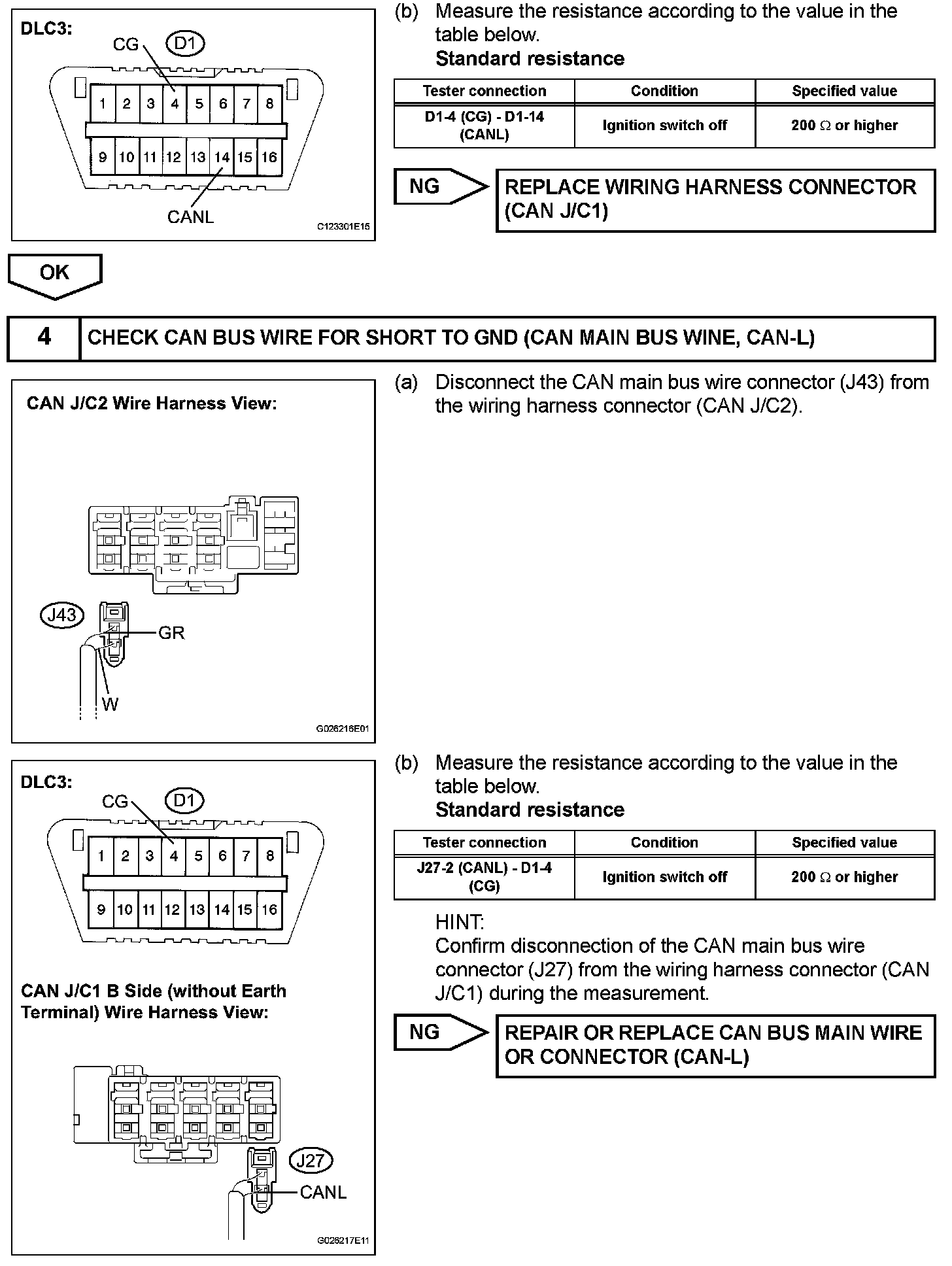

Step 3 (Continued)-4:

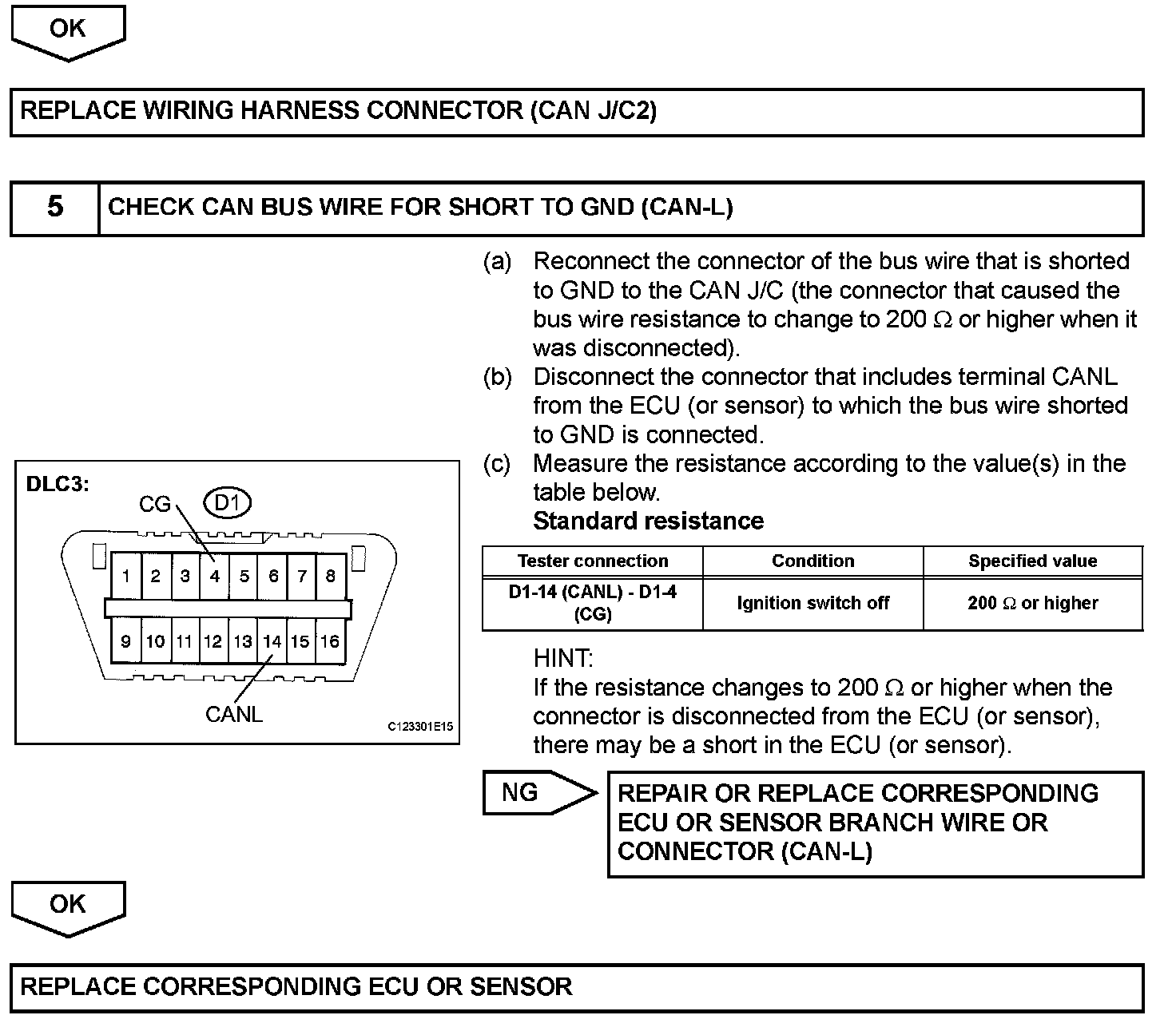

Step 4 (Continued)-5:
INSPECTION PROCEDURE
HINT: Identify the connector to be checked by its color of the wire and shape of the junction on the CAN J/C because the locations of the connectors to the CAN J/C are confusing.
