Check CAN Bus Lines for Short Circuit
Check CAN Bus Lines for Short CircuitDESCRIPTION
The CAN bus wires are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54 ohms.

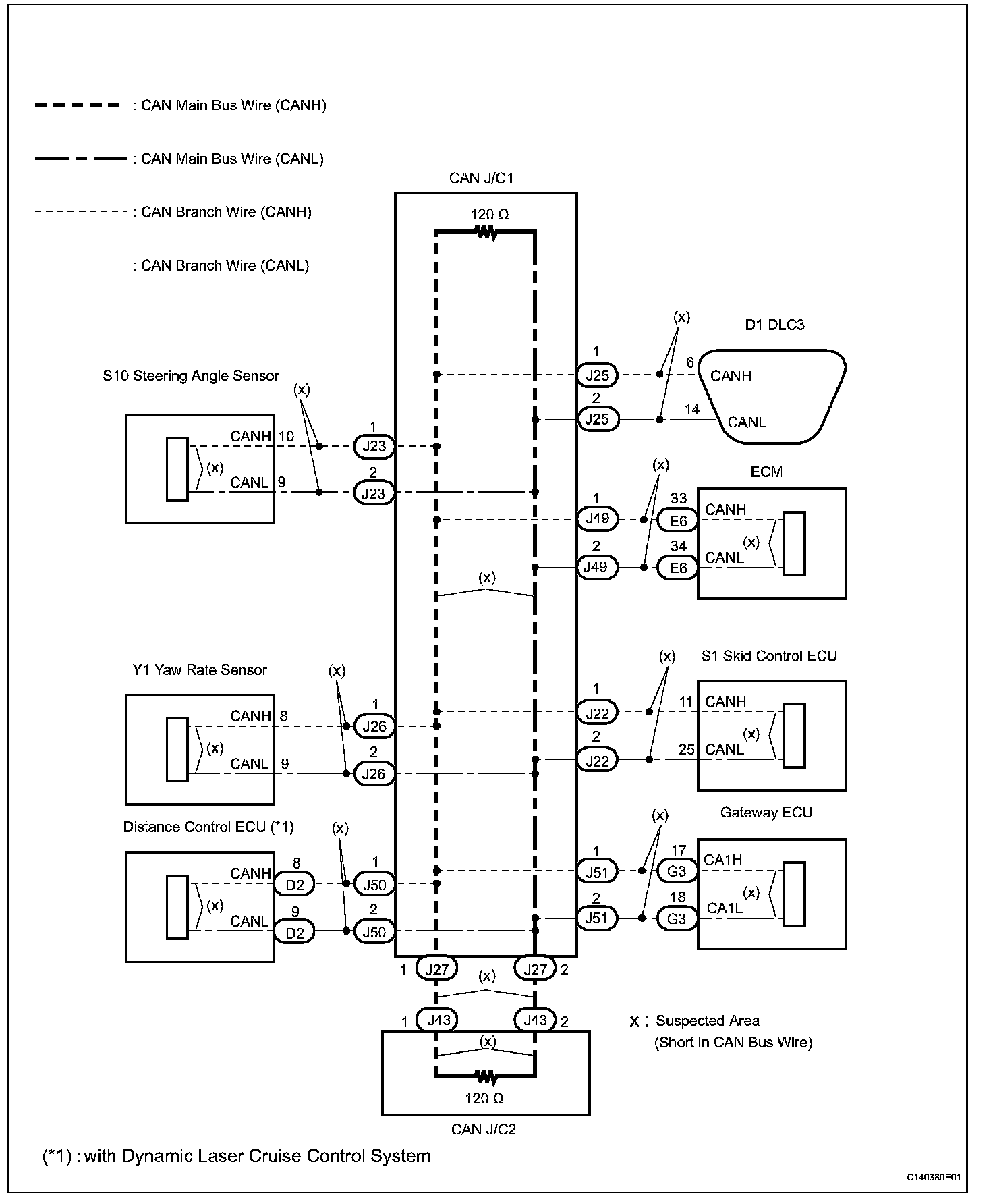

Wiring Diagram:

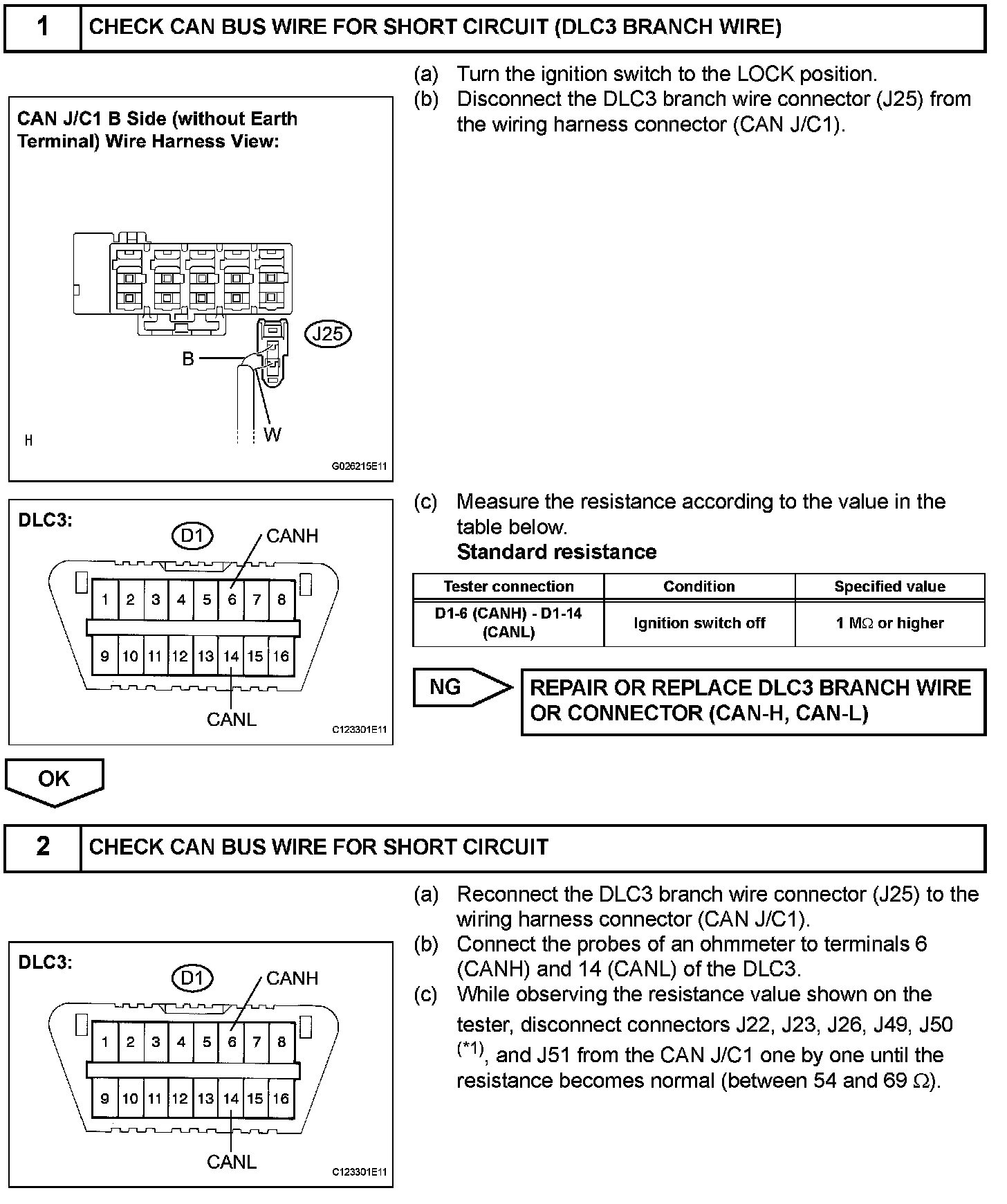

Step 1-2:

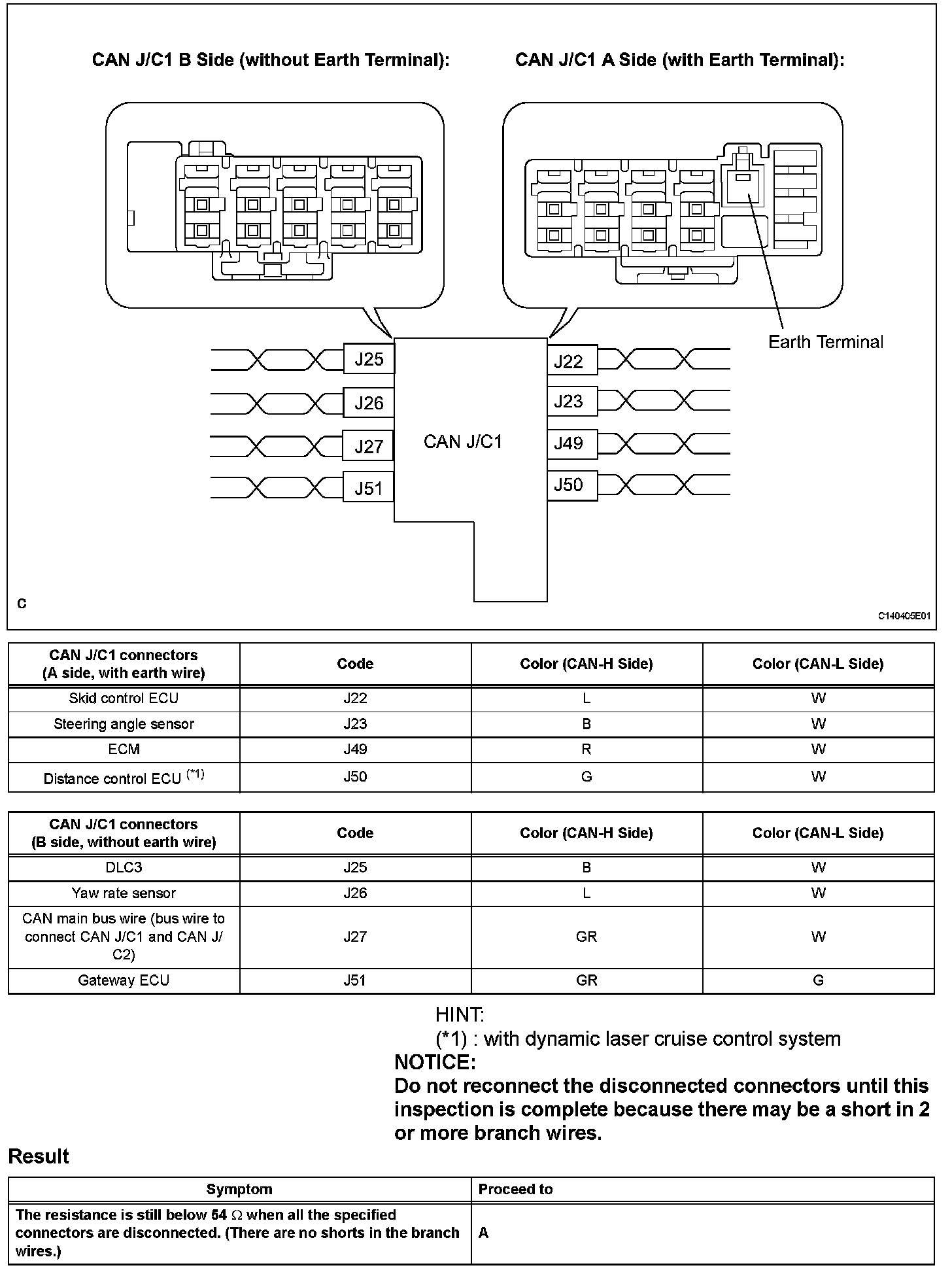

Step 2 (Continued):

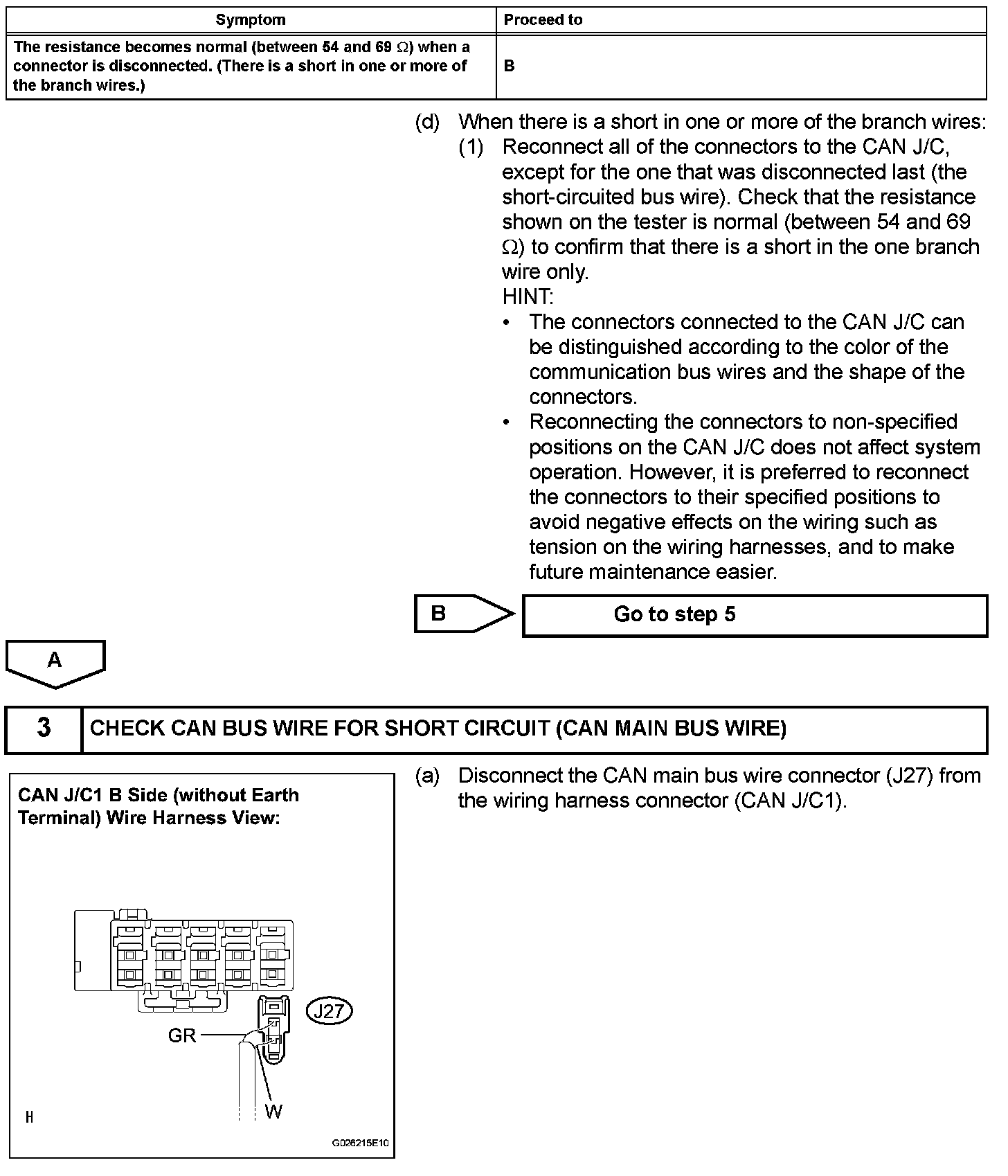

Step 2 (Continued):

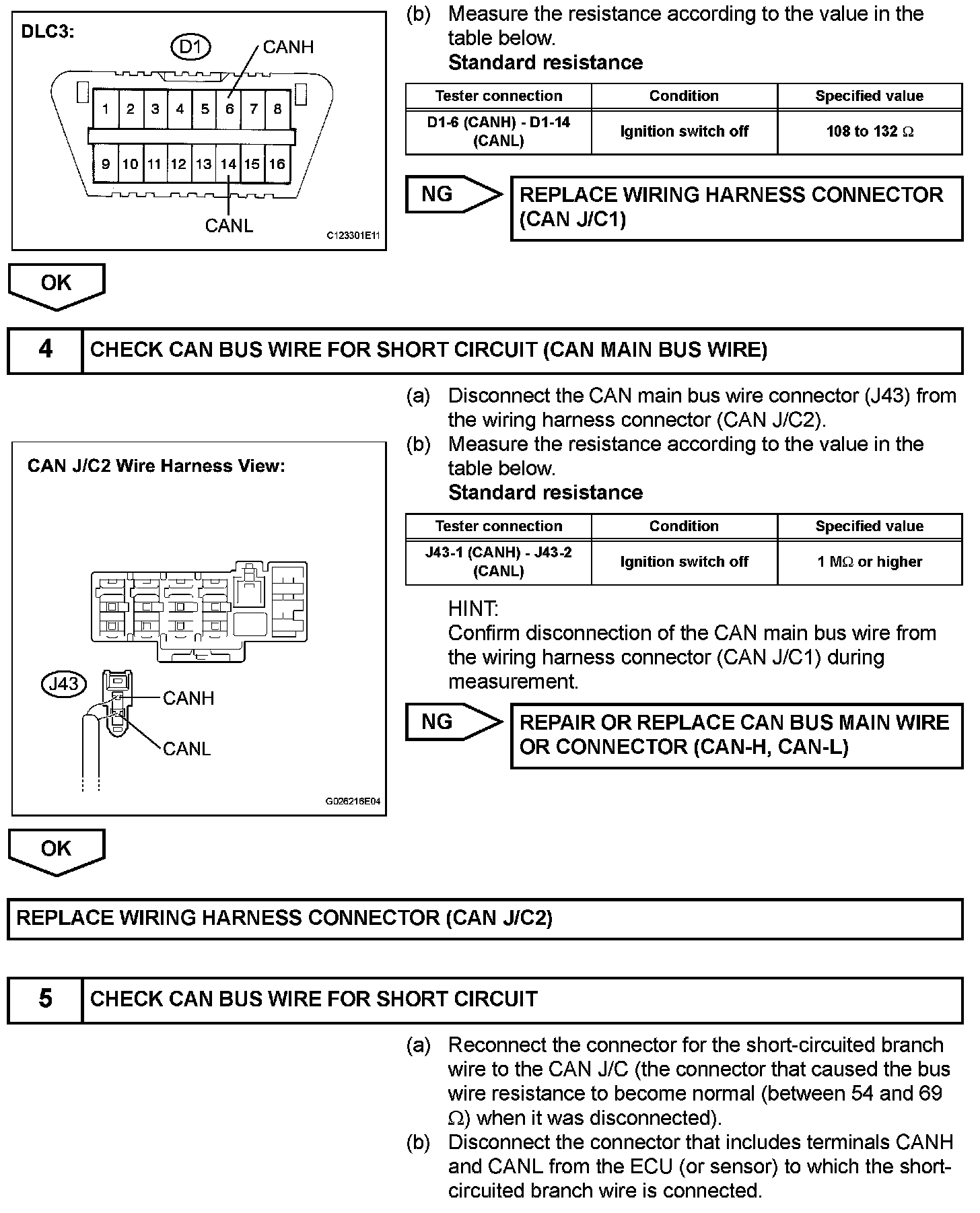

Step 2 (Continued)-3:
Step 3 (Continued)-5:
Step 5 (Continued):
INSPECTION PROCEDURE
HINT: Identify the connector to be checked by its color of the wire and shape of the junction on the CAN J/C because the locations of the connectors to the CAN J/C are confusing.
