Transmission Speed Sensor: Service and Repair

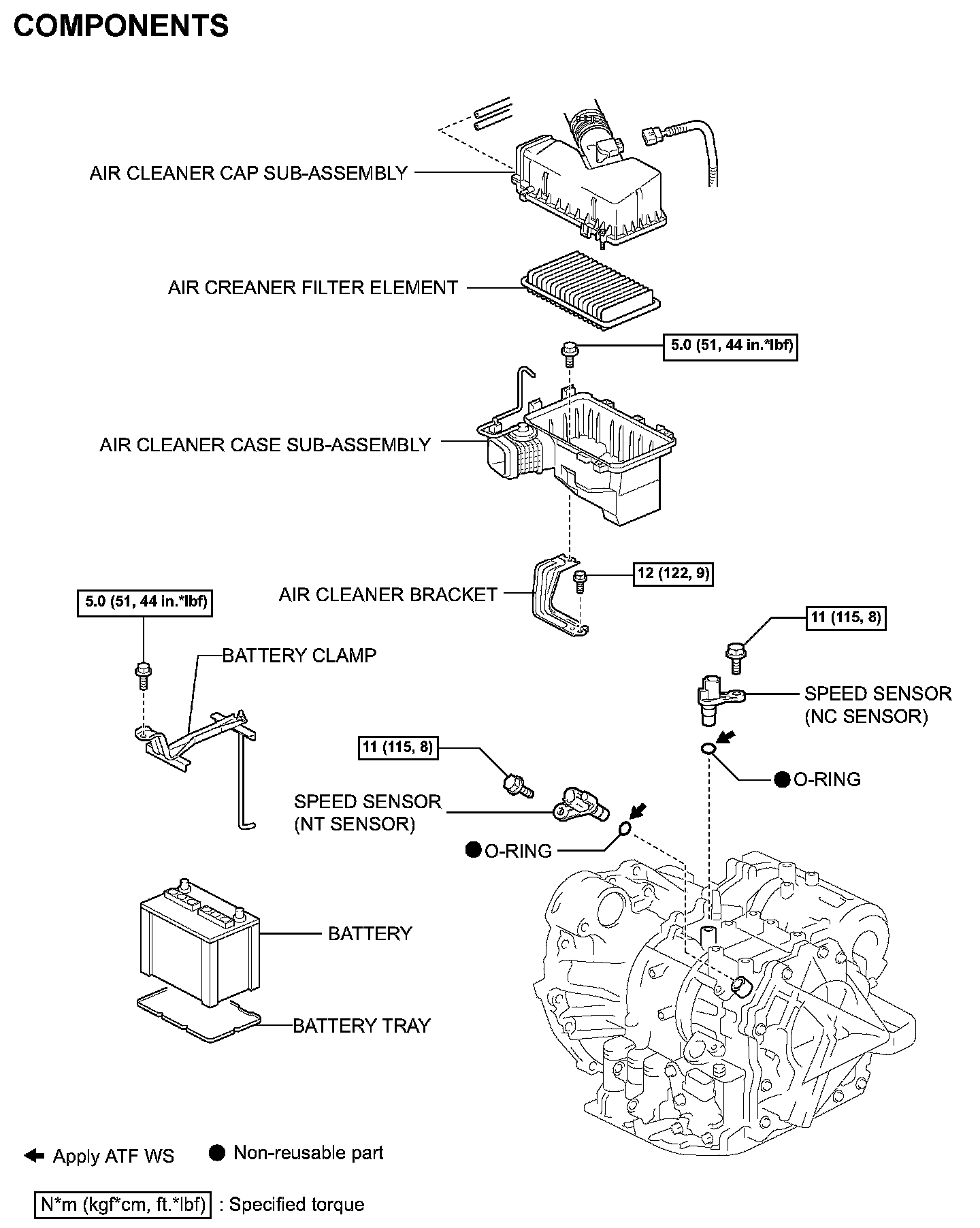

SPEED SENSORCOMPONENTS:
REMOVAL
1. REMOVE BATTERY
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY
3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY
4. REMOVE AIR CLEANER BRACKET
5. REMOVE SPEED SENSOR (NT SENSOR)
(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.
6. REMOVE SPEED SENSOR (NC SENSOR)
(a) Disconnect the speed sensor connector.
(b) Remove the bolt and speed sensor.
INSPECTION
1. INSPECT SPEED SENSOR (NT SENSOR)
(a) Measure the resistance according to the value(s) in the table.
Resistance:
2. INSPECT SPEED SENSOR (NC SENSOR)
(a) Measure the resistance according to the value(s) in the table.
Resistance:
INSTALLATION
1. INSTALL SPEED SENSOR (NC SENSOR)
(a) Coat a new O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
HINT: Make sure to install the same manufacturer's sensor.
(c) Connect the speed sensor connector.
2. INSTALL SPEED SENSOR (NT SENSOR)
(a) Coat a new O-ring with ATF.
(b) Install the speed sensor with the bolt.
Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
HINT: Make sure to install the same manufacturer's sensor.
(c) Connect the speed sensor connector.
3. INSTALL AIR CLEANER BRACKET
4. INSTALL AIR CLEANER CASE SUB-ASSEMBLY
5. INSTALL AIR CLEANER CAP SUB-ASSEMBLY
6. INSTALL BATTERY
7. INSTALL CABLE TO NEGATIVE BATTERY TERMINAL
Some systems need initialization when disconnecting the cable from the negative battery terminal.
