Wiper Switch: Service and Repair

Wiper Switch:

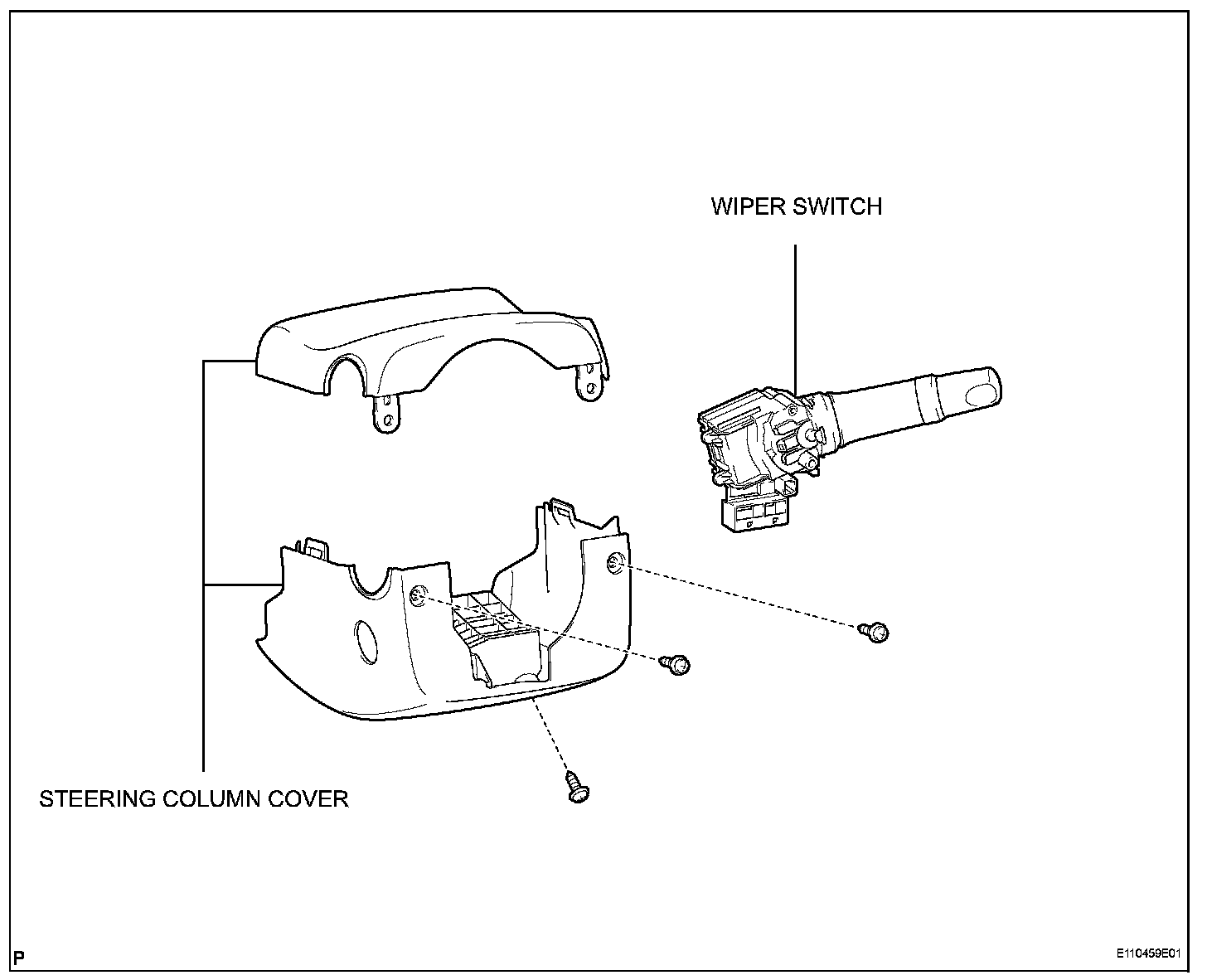

WIPER SWITCH

REMOVAL

1. REMOVE STEERING COLUMN COVER (for Manual Tilt)
2. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic)

3. REMOVE WIPER SWITCH
a. Disconnect the connector.




b. Using a screwdriver wrapped with protective tape, disengage the claw and remove the wiper switch.

NOTE: If the claw is pushed with excessive force, it may be broken.

INSTALLATION

1. INSTALL WIPER SWITCH
2. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)
3. INSTALL STEERING COLUMN COVER (for Manual Tilt)
