Overhaul

DISASSEMBLY

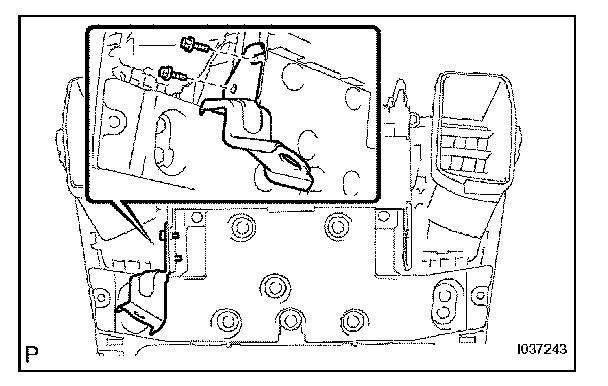

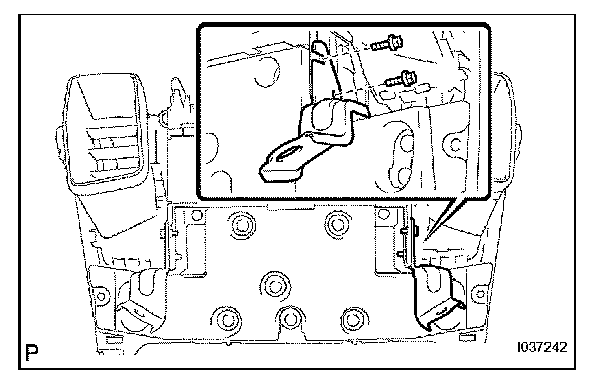

1. REMOVE HEATER CONTROL BASE BRACKET LH




a. Remove the 2 bolts and heater control base bracket LH.

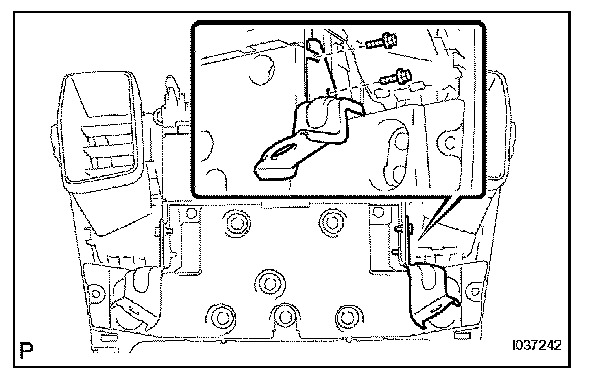

2. REMOVE HEATER CONTROL BASE BRACKET RH




a. Remove the 2 bolts and heater control base bracket RH.

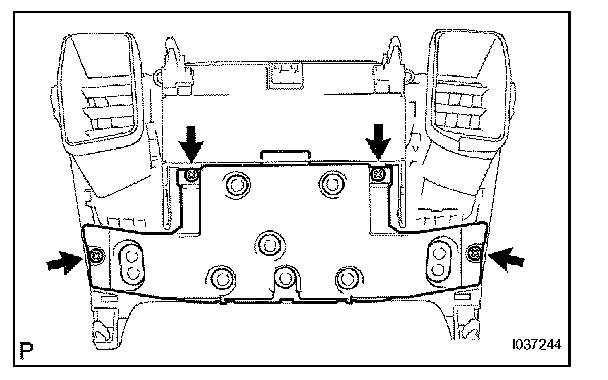

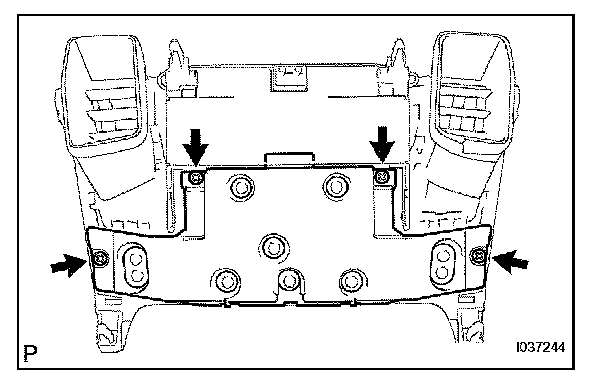

3. REMOVE HEATER CONTROL HOUSING SUB-ASSEMBLY




a. Remove the 4 screws and heater control housing sub-assembly.

4. REMOVE MULTI INFORMATION DISPLAY SUB-ASSEMBLY

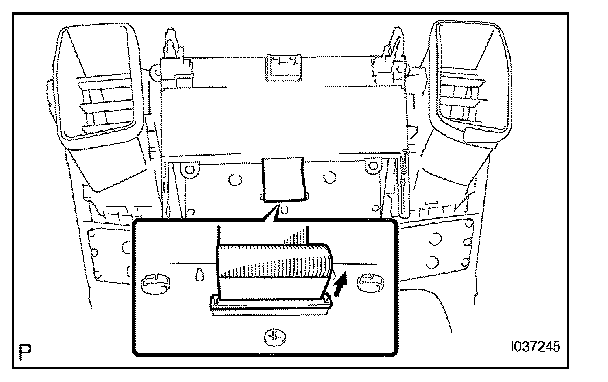

a. Release the lock of the connector and disconnect the cable.

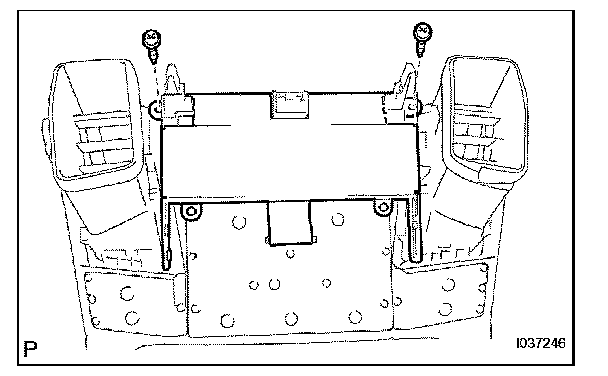

b. Remove the 2 screws and multi information display sub-assembly.

REASSEMBLY

1. INSTALL MULTI INFORMATION DISPLAY SUB-ASSEMBLY

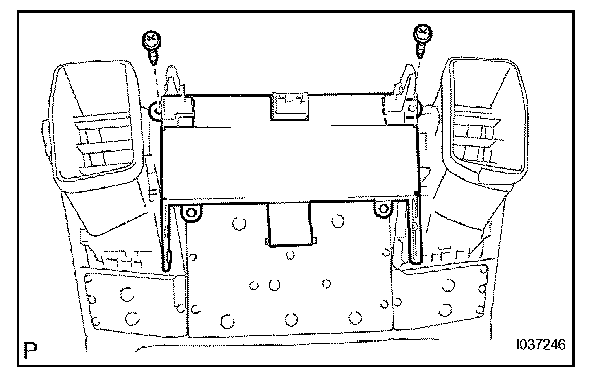

a. Install the multi information display sub-assembly with the 2 screws.

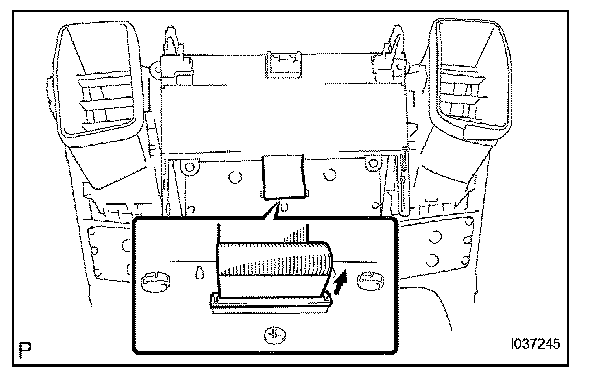

b. Install the cable with the connector.

2. INSTALL HEATER CONTROL HOUSING SUB-ASSEMBLY




a. Install the heater control housing sub-assembly with the 4 screws.

3. INSTALL HEATER CONTROL BASE BRACKET RH




a. Install the heater control base bracket RH with the 2 bolts.

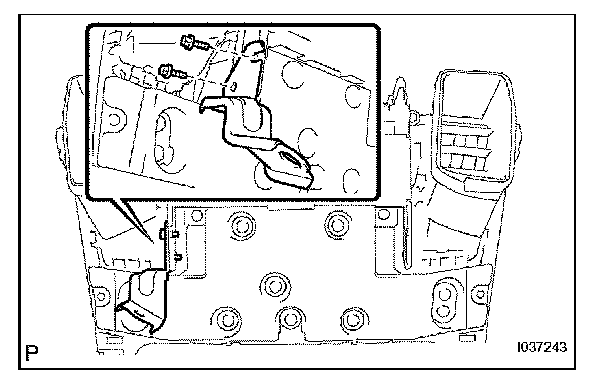

4. INSTALL HEATER CONTROL BASE BRACKET LH




a. Install the heater control base bracket LH with the 2 bolts.
