Rear Circuit Breaker Sensor

Rear Circuit Breaker Sensor:

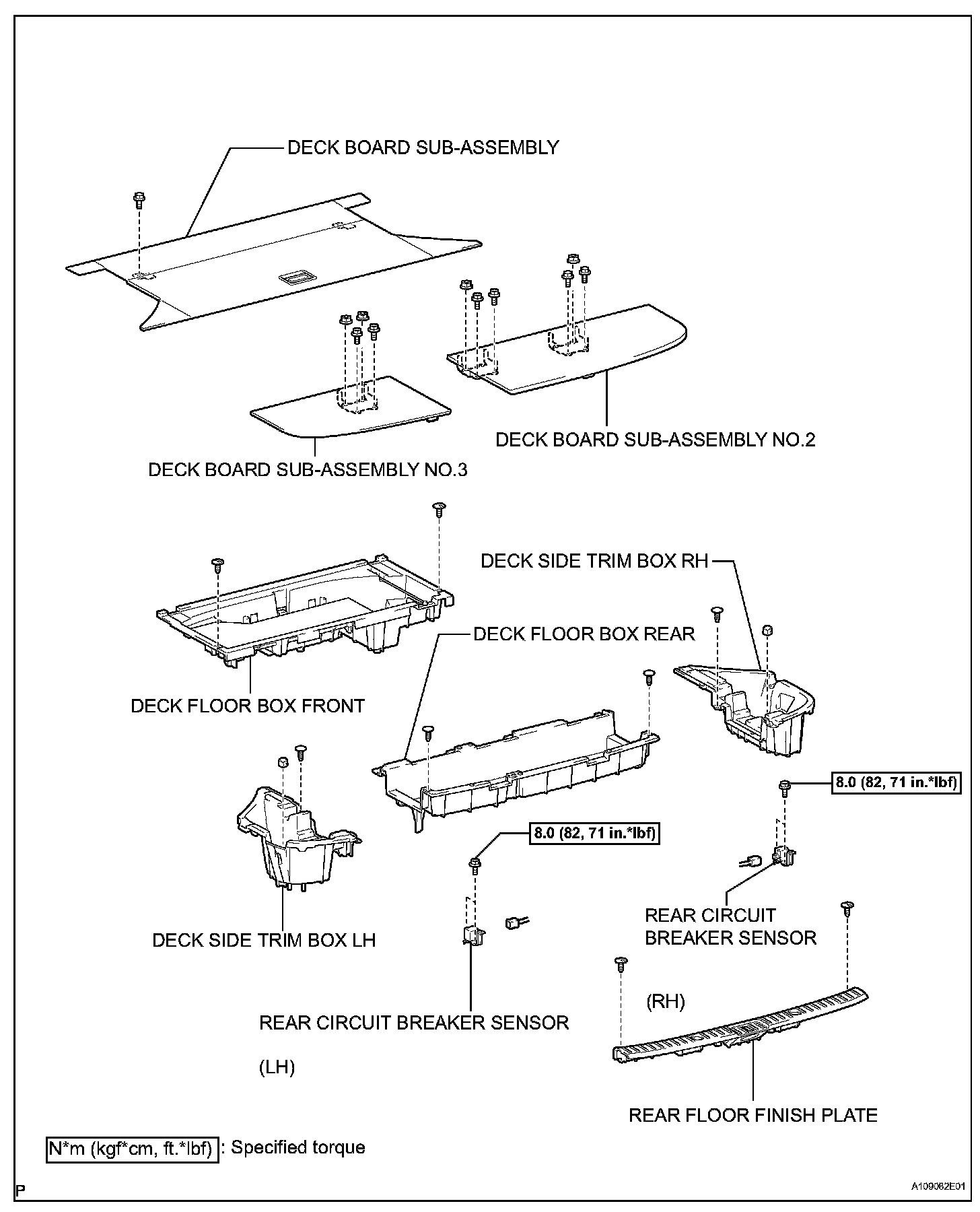

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE DECK BOARD SUB-ASSEMBLY
3. REMOVE DECK FLOOR BOX REAR
4. REMOVE REAR FLOOR FINISH PLATE
5. REMOVE DECK FLOOR BOX FRONT
6. REMOVE DECK BOARD SUB-ASSEMBLY NO.2
7. REMOVE DECK BOARD SUB-ASSEMBLY NO.3
8. REMOVE DECK SIDE TRIM BOX RH
9. REMOVE DECK SIDE TRIM BOX LH

10. REMOVE REAR CIRCUIT BREAKER SENSOR




a. Remove the rear circuit breaker sensor (LH).

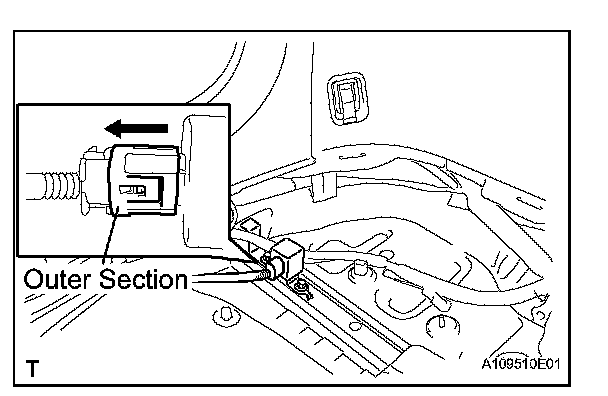

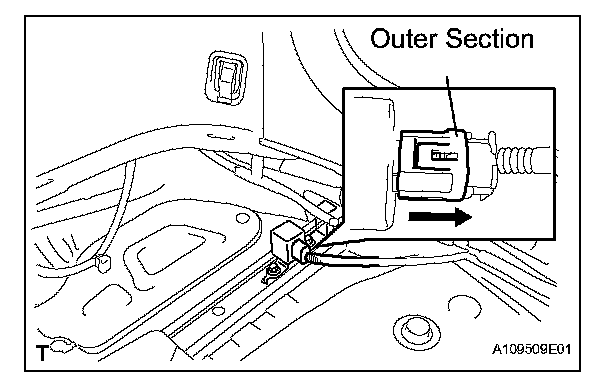

1. Move the outer section to the wire harness side as illustrated, then disconnect the rear circuit breaker sensor (LH).

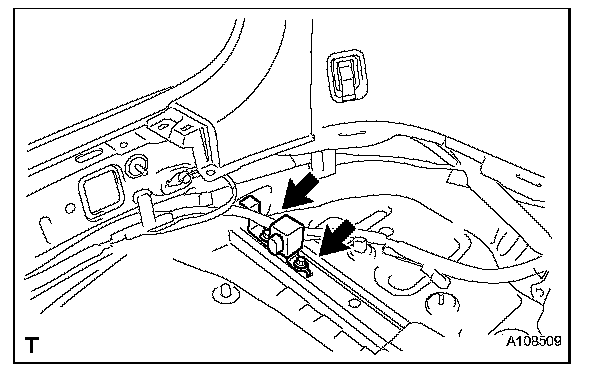

2. Remove the 2 bolts and rear circuit breaker sensor (LH).




b. Remove the rear circuit breaker sensor (RH).
1. Move the outer section to the wire harness side as illustrated, then disconnect the rear circuit breaker sensor (RH).

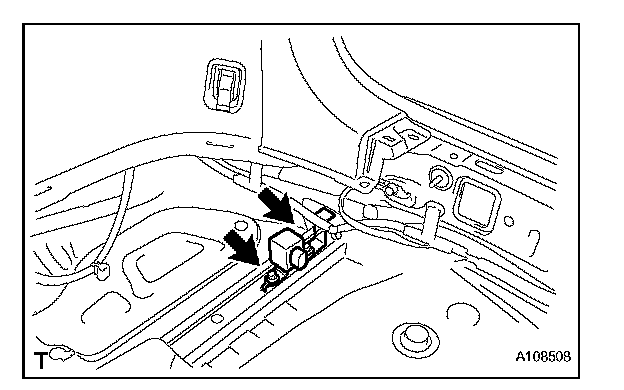

2. Remove the 2 bolts and rear circuit breaker sensor (RH).

INSTALLATION

1. INSTALL REAR CIRCUIT BREAKER SENSOR




a. Install the rear circuit breaker sensor (RH).

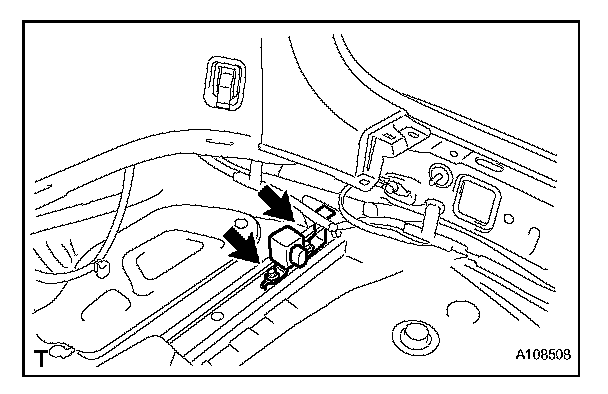

1. Install the circuit breaker sensor (RH) with the 2 bolts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

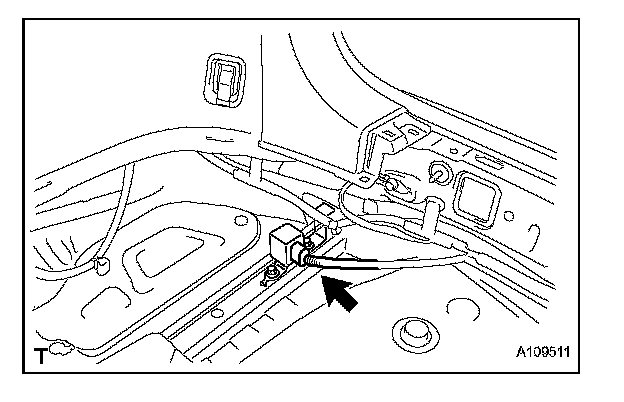

2. Connect the connector to the rear circuit breaker sensor (RH).




b. Install the rear circuit breaker sensor (LH).

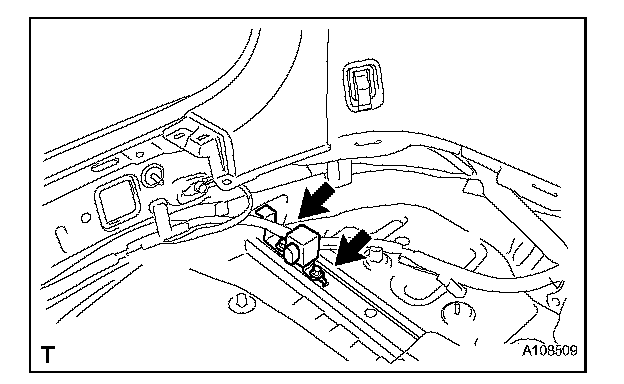

1. Install the rear circuit breaker sensor (LH) with the 2 bolts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

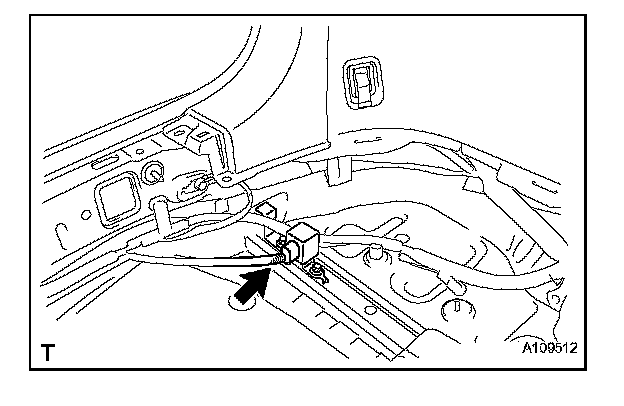

2. Connect the connector to the rear circuit breaker sensor (LH).

2. INSTALL DECK SIDE TRIM BOX RH
3. INSTALL DECK SIDE TRIM BOX LH
4. INSTALL DECK BOARD SUB-ASSEMBLY NO.2
5. INSTALL DECK BOARD SUB-ASSEMBLY NO.3
6. INSTALL DECK FLOOR BOX FRONT
7. INSTALL REAR FLOOR FINISH PLATE
8. INSTALL DECK FLOOR BOX REAR
9. INSTALL DECK BOARD SUB-ASSEMBLY
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

11. PERFORM INITIALIZATION
Some systems need initialization when disconnecting the cable from the negative battery terminal.
