Open In One Side of CAN Sub Bus Line

Open in One Side of CAN Sub Bus Line

DESCRIPTION




If 2 or more ECUs and/or sensors do not appear on the intelligent tester "BUS CHECK" screen via the CAN VIM, one side of the CAN sub-bus lines may be open. (One side of the CAN-H [sub-bus line] / CANL [sub-bus line] of the ECU and/or sensor is open.)

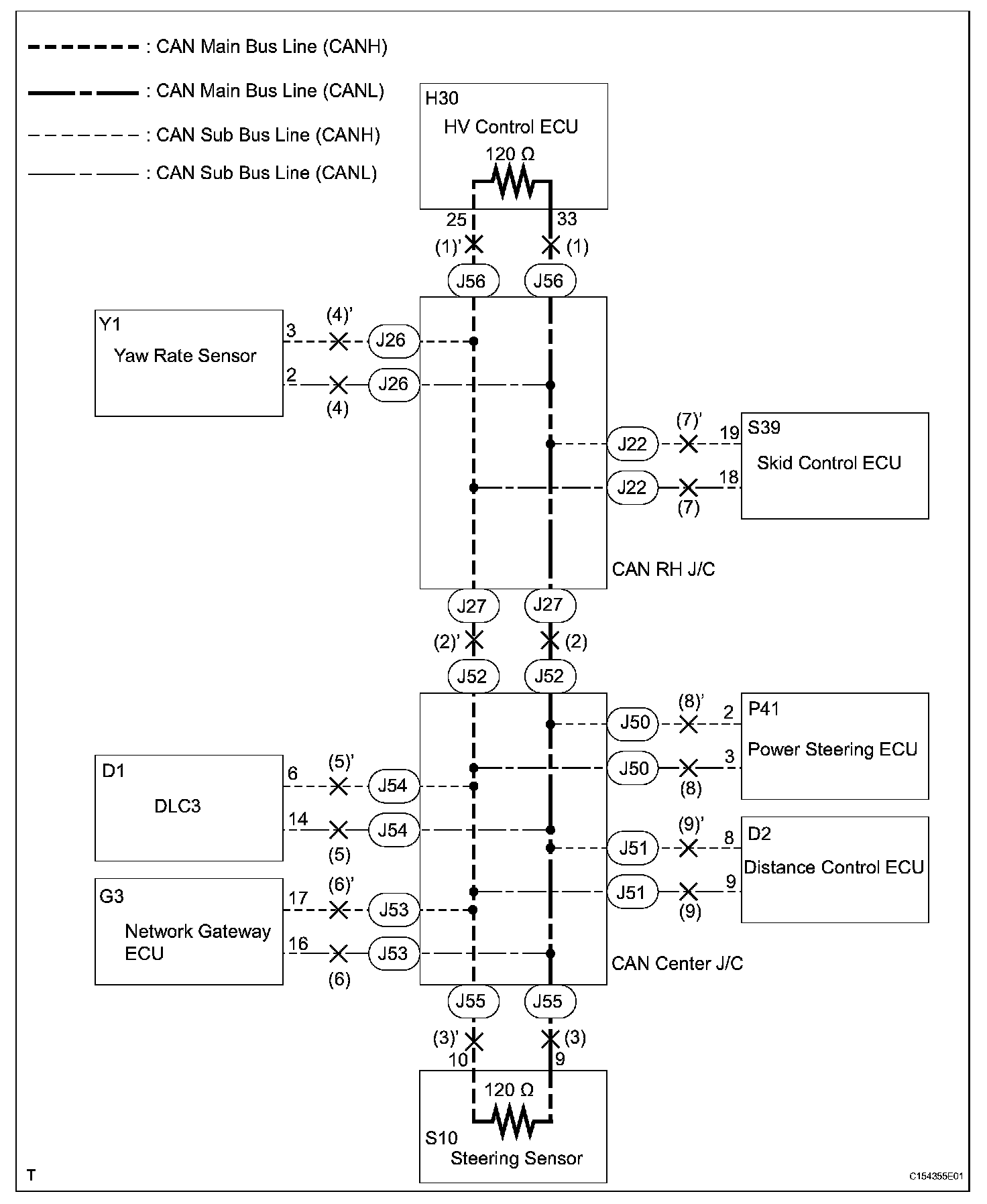

Wiring Diagram:

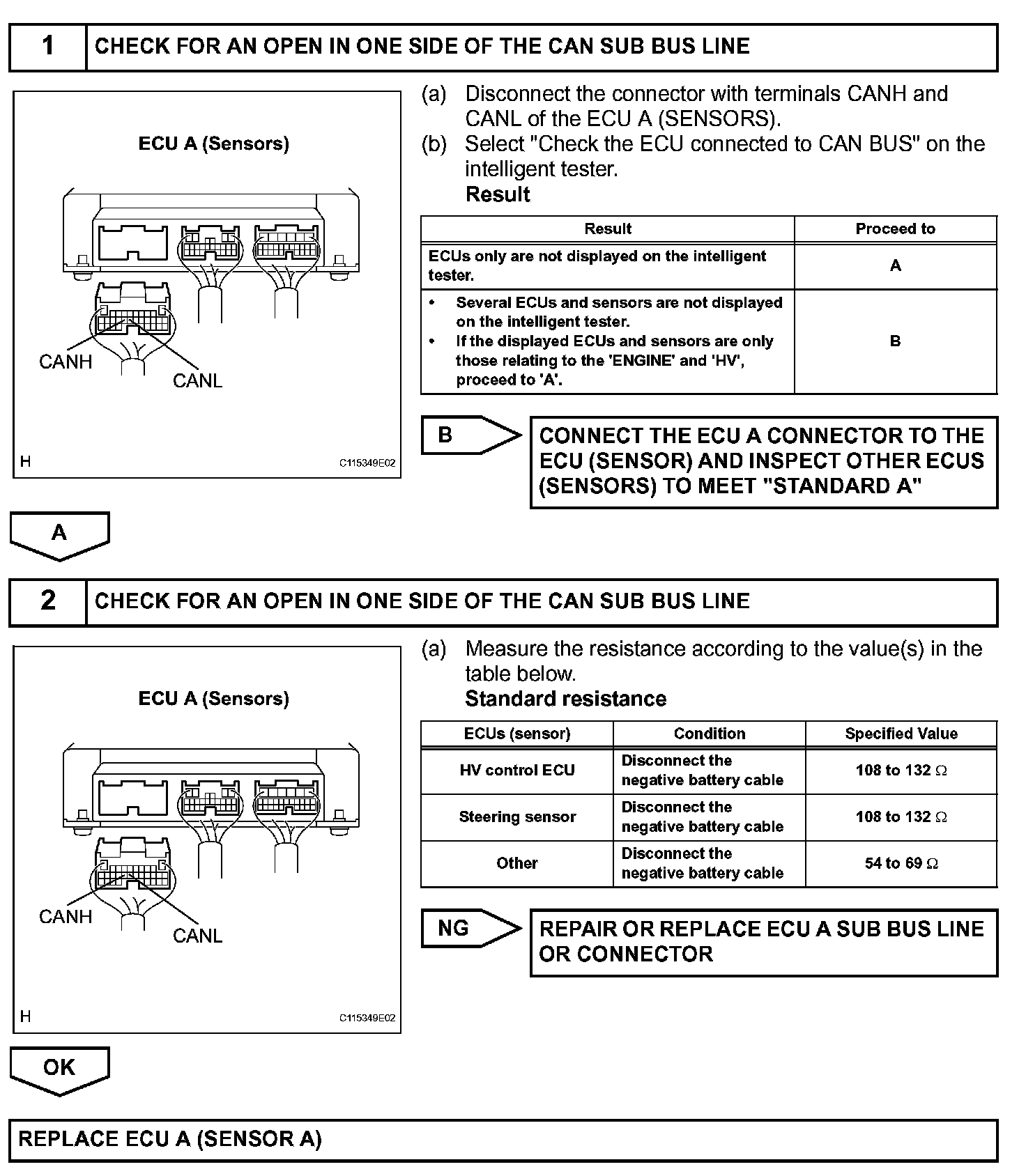

Step 1-2:




INSPECTION PROCEDURE

HINT:
- Perform the following inspections for the ECUs (sensors) that are not displayed on the intelligent tester first. If a malfunction is still not able to be identified, perform the given inspections for all other ECUs (sensors) connected to the CAN communication system.
- The basic inspection procedures that can be used for all related ECUs in common are shown given. "ECU A" represents the following: HV control ECU, steering sensor, yaw rate sensor, skid control ECU, network gateway ECU, power steering ECU, distance control ECU.
