Steering Column Control Module: Service and Repair

MULTIPLEX TILT AND TELESCOPIC ECU

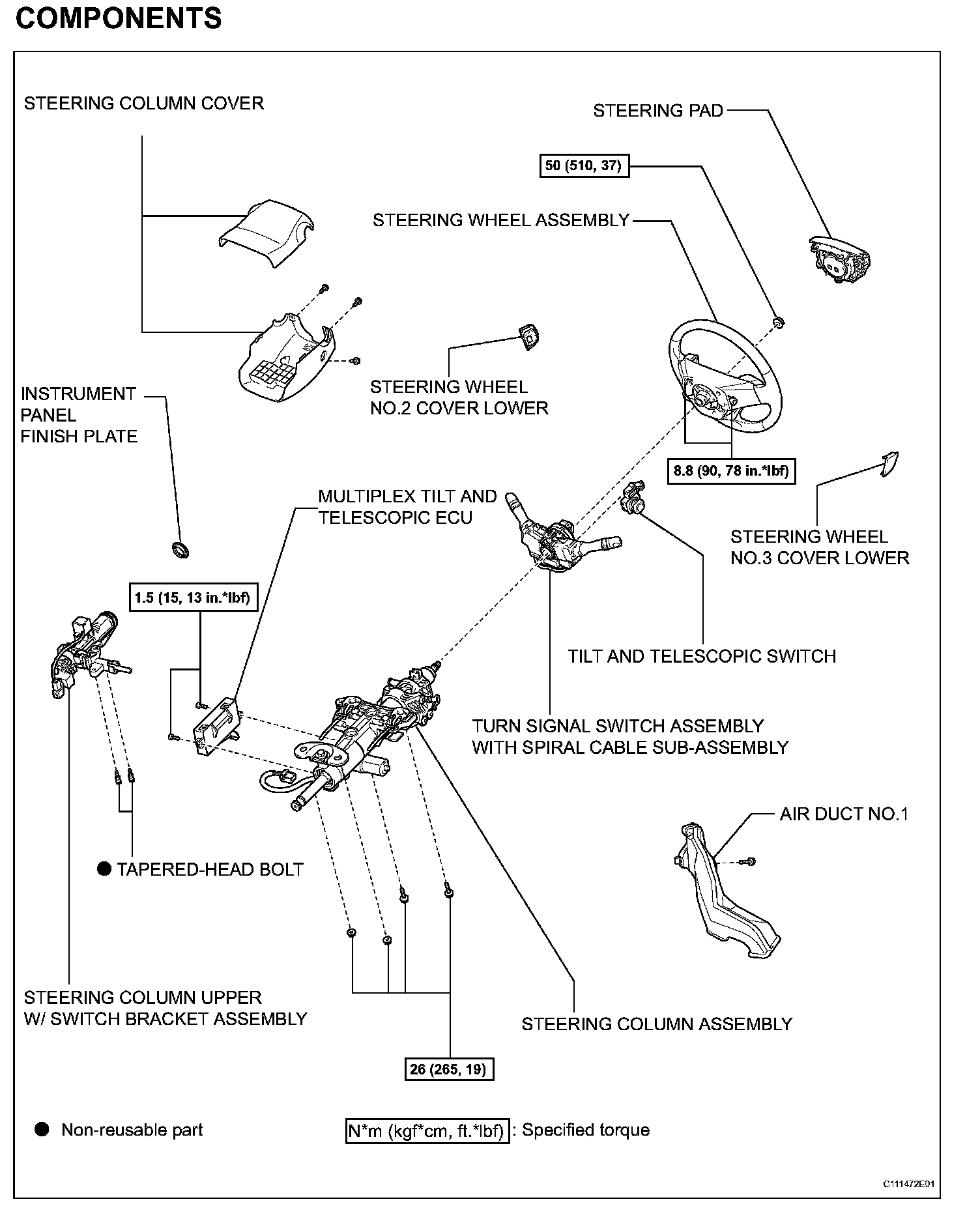

COMPONENTS:





REMOVAL
1. REMOVE STEERING COLUMN ASSEMBLY

HINT:
Refer to the instructions for removal of the steering column assembly (power tilt and power telescopic)

2. REMOVE STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
3. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU
(a) Disconnect the connectors form the multiplex tilt and telescopic ECU.

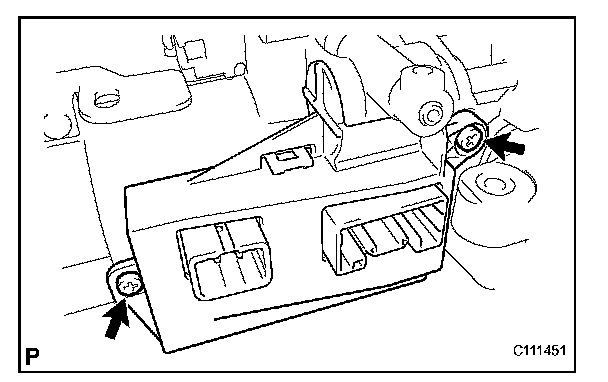

(b) Remove the 2 screws and multiplex tilt and telescopic ECU.

INSTALLATION





1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU

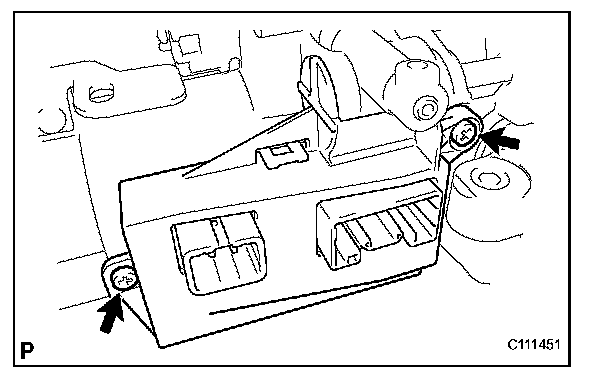

(a) Using a socket wrench (+), install the multiplex tilt and telescopic ECU with the 2 screws.
Torque: 1.5 N*m (15 kgf*cm, 13 in.*lbf)
(b) Connect the connectors to the multiplex tilt and telescopic ECU.

NOTICE:
^ The connectors on both ends of the wire harness between the telescopic motor and ECU are the same shape.
^ When installing them, connect the connectors of the same color.

2. INSTALL STEERING COLUMN UPPER WITH SWITCH BRACKET ASSEMBLY
3. INSTALL STEERING COLUMN ASSEMBLY

HINT:
Refer to the instructions for installation of the steering column assembly (power tilt and power telescopic)
