Navigation System: Adjustments
ADJUSTMENTHINT:
- After replacing the multi-display or the navigation ECU, the screen's display may be affected by noise. Perform the adjustment below to reduce screen noise.
- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.
- Perform both procedures below when the multi-display is replaced.
1. HOW TO PERFORM SCREEN NOISE AUTOMATIC ADJUSTMENT
a. When either the multi-display or the navigation ECU is replaced:
1. Turn the ignition switch to ACC and wait for at least 6 seconds to activate the diagnostic mode.

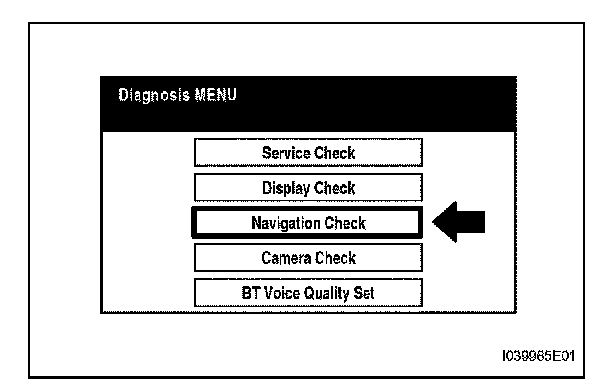

2. Select "Navigation Check" from the "Diagnosis MENU" screen.

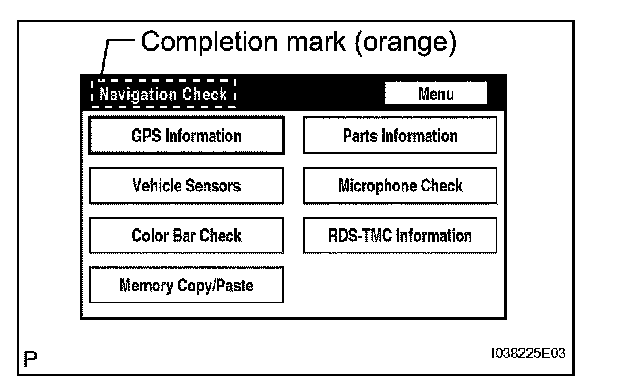

3. The screen enters "Navigation Check" with a beeping sound. Adjustment is completed when the completion mark is displayed.
4. Cancel the diagnostic mode.
