Short in CAN Bus Lines

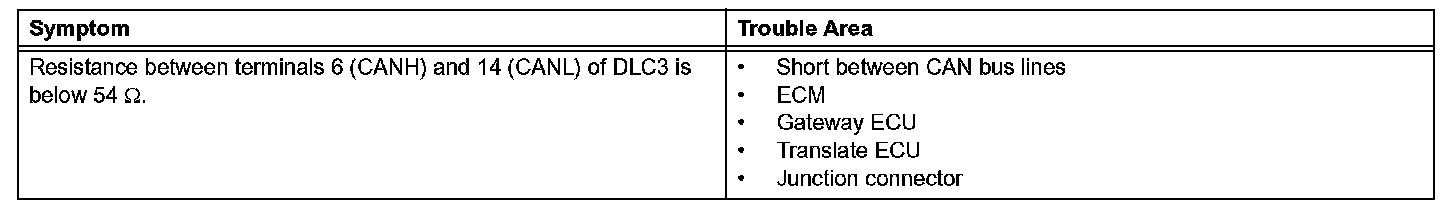

Short in CAN Bus LinesDESCRIPTIONThere may be a short circuit between the CAN bus lines when the resistance between terminals 6 (CANH) and 14 (CANL) of the
DLC3 is
below 54 Ohms.

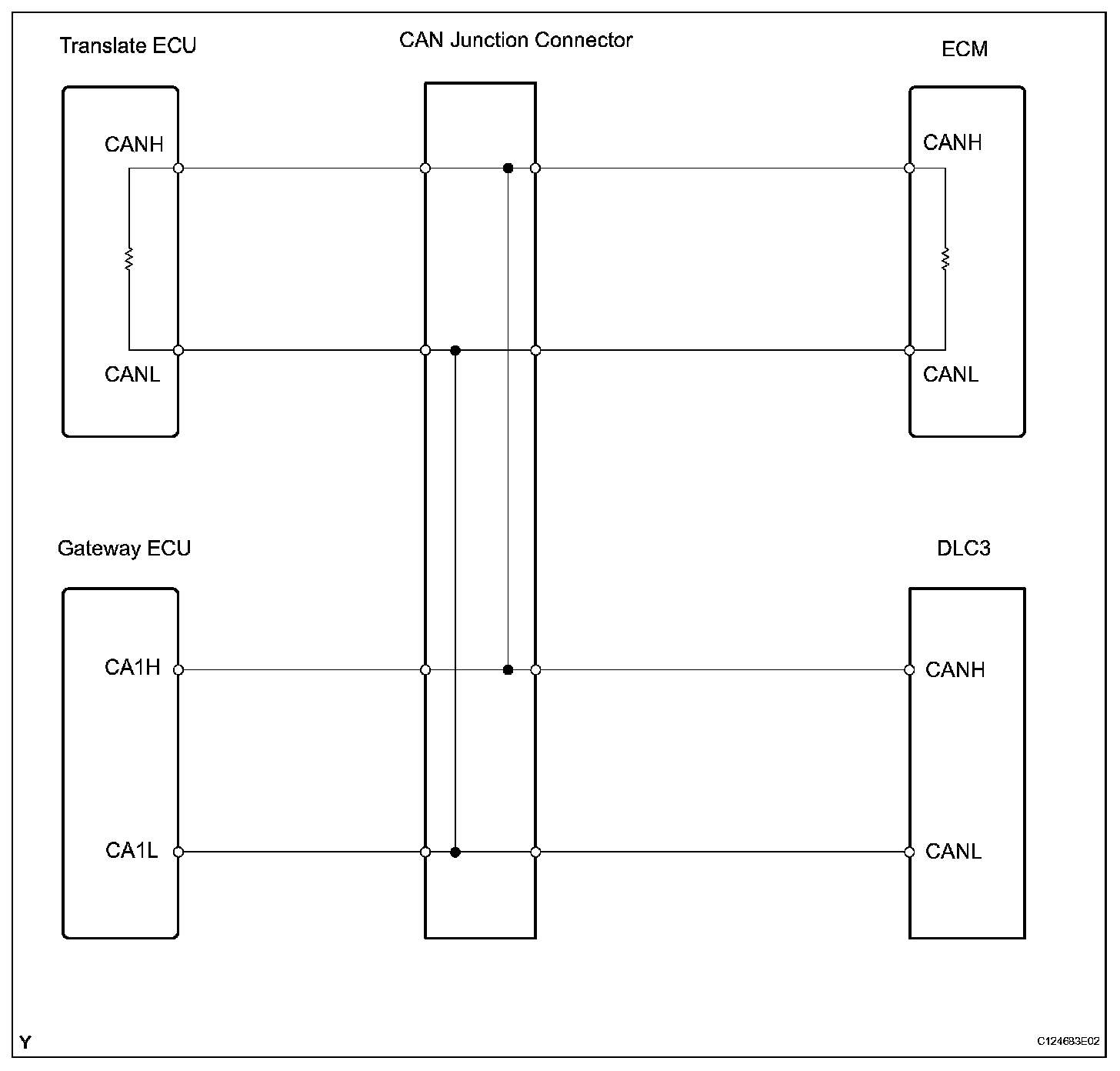

Wiring Diagram:
Step 1-2:
Step 3:

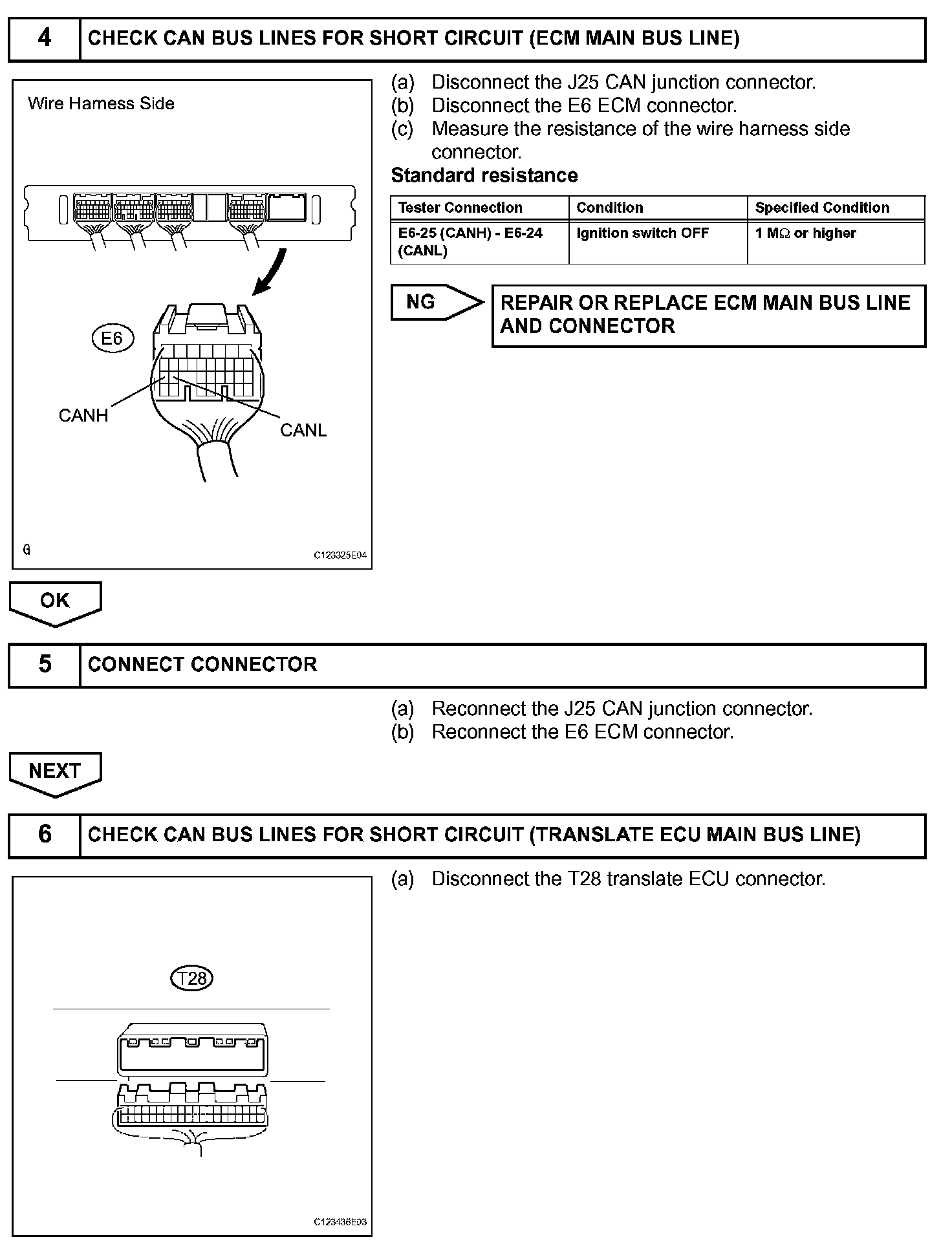

Step 4-6:

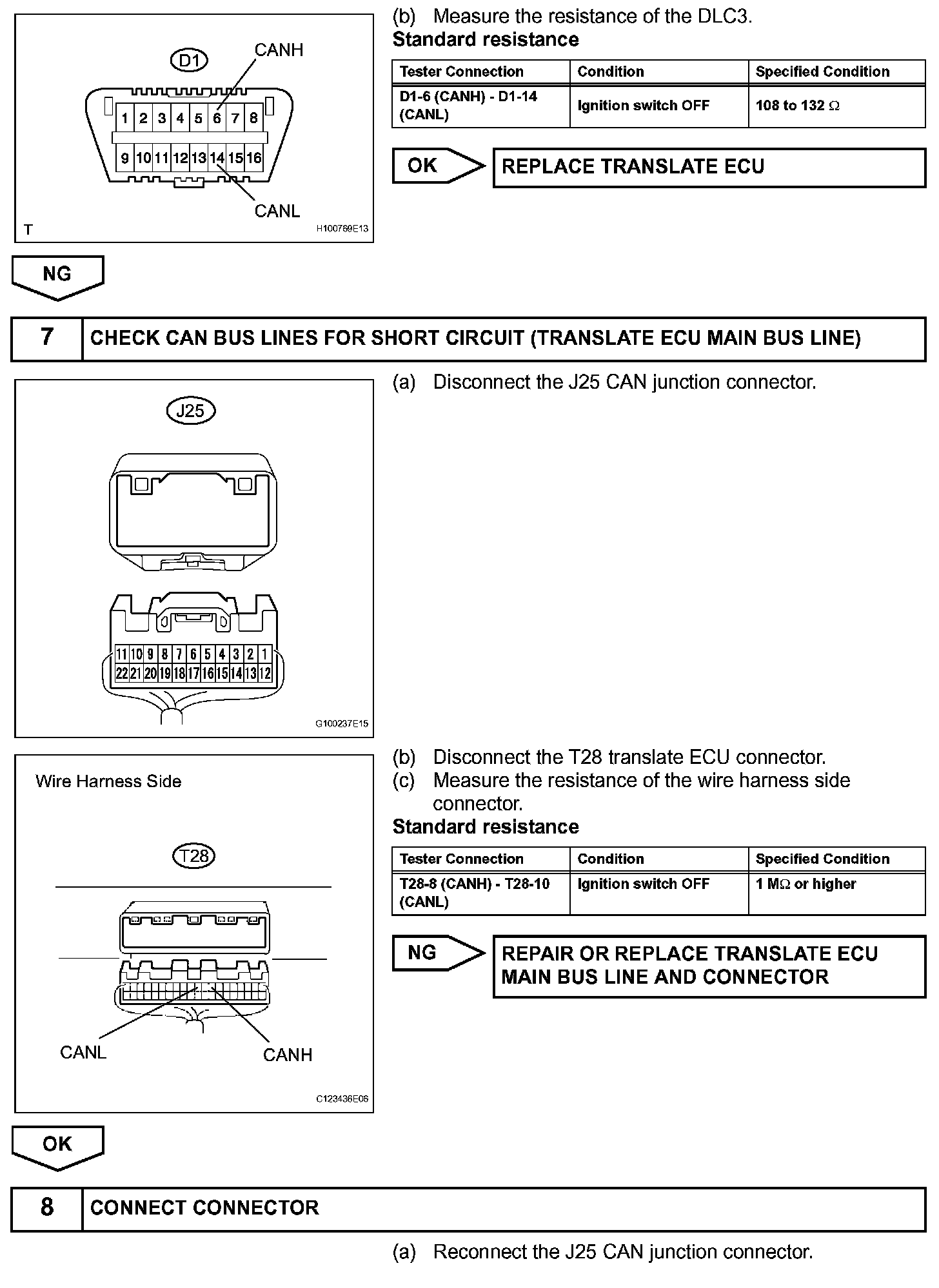

Step 6 (Continued)-8:
Step 8 (Continued)-10:

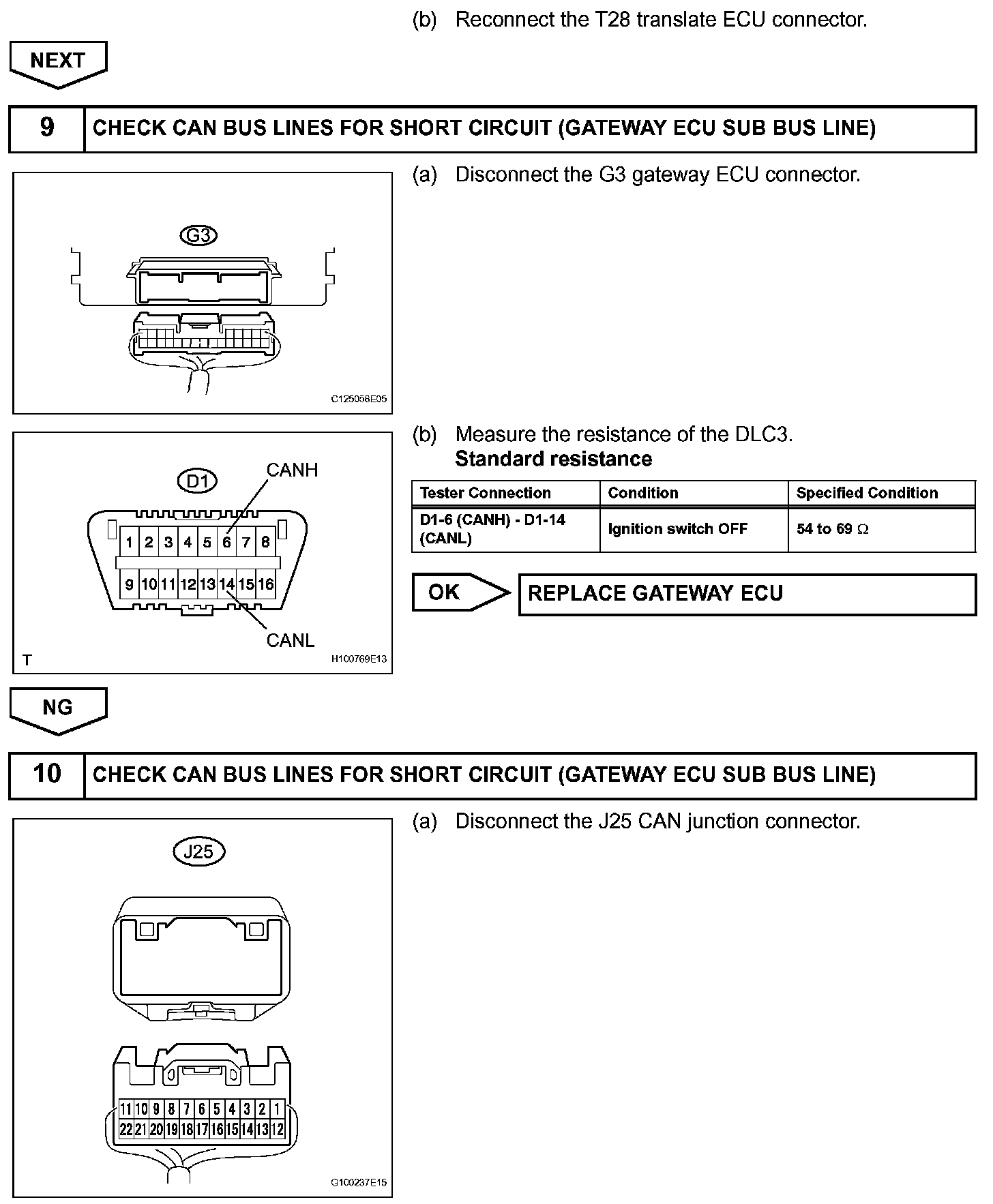

Step 10 (Continued):

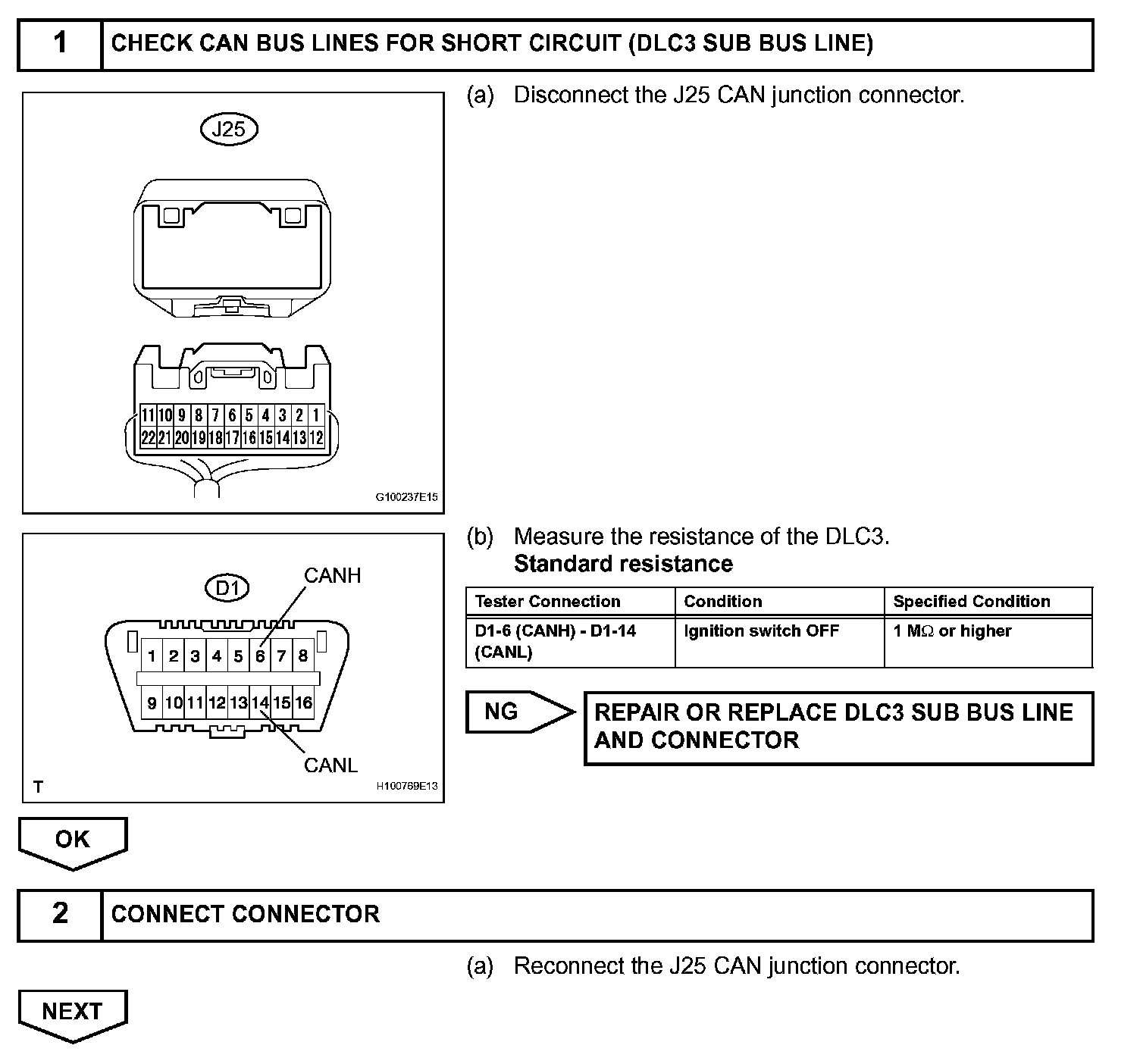

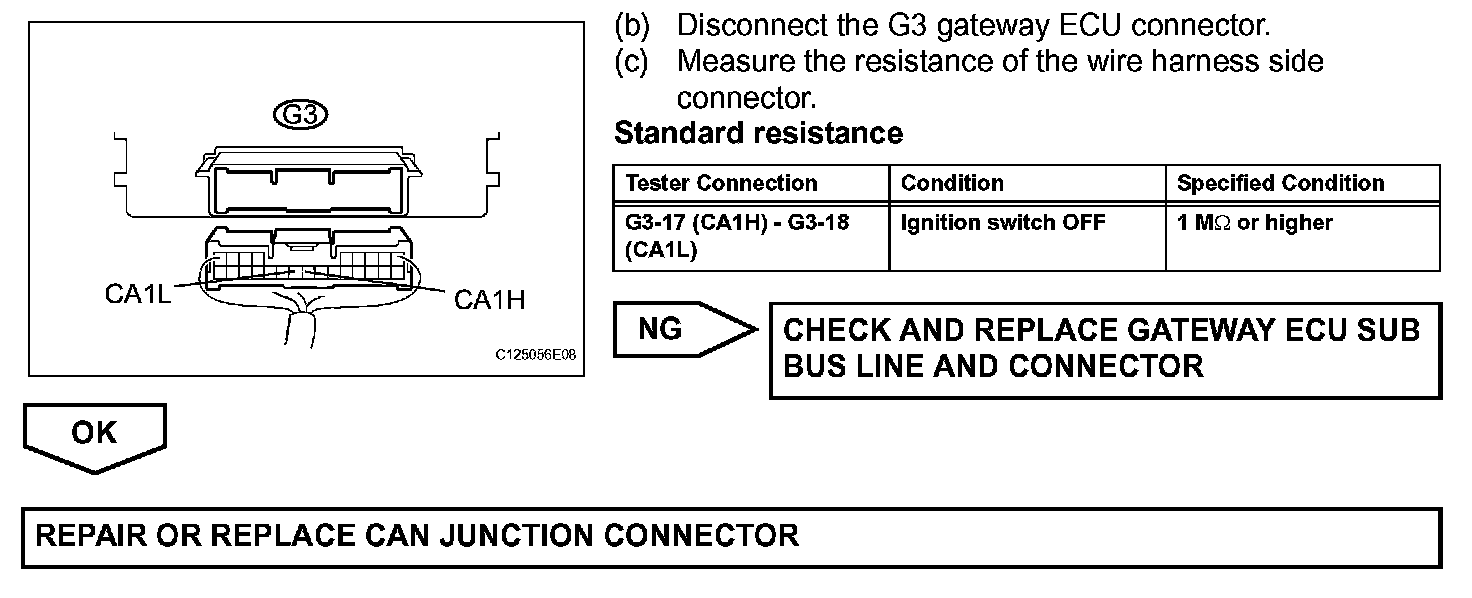

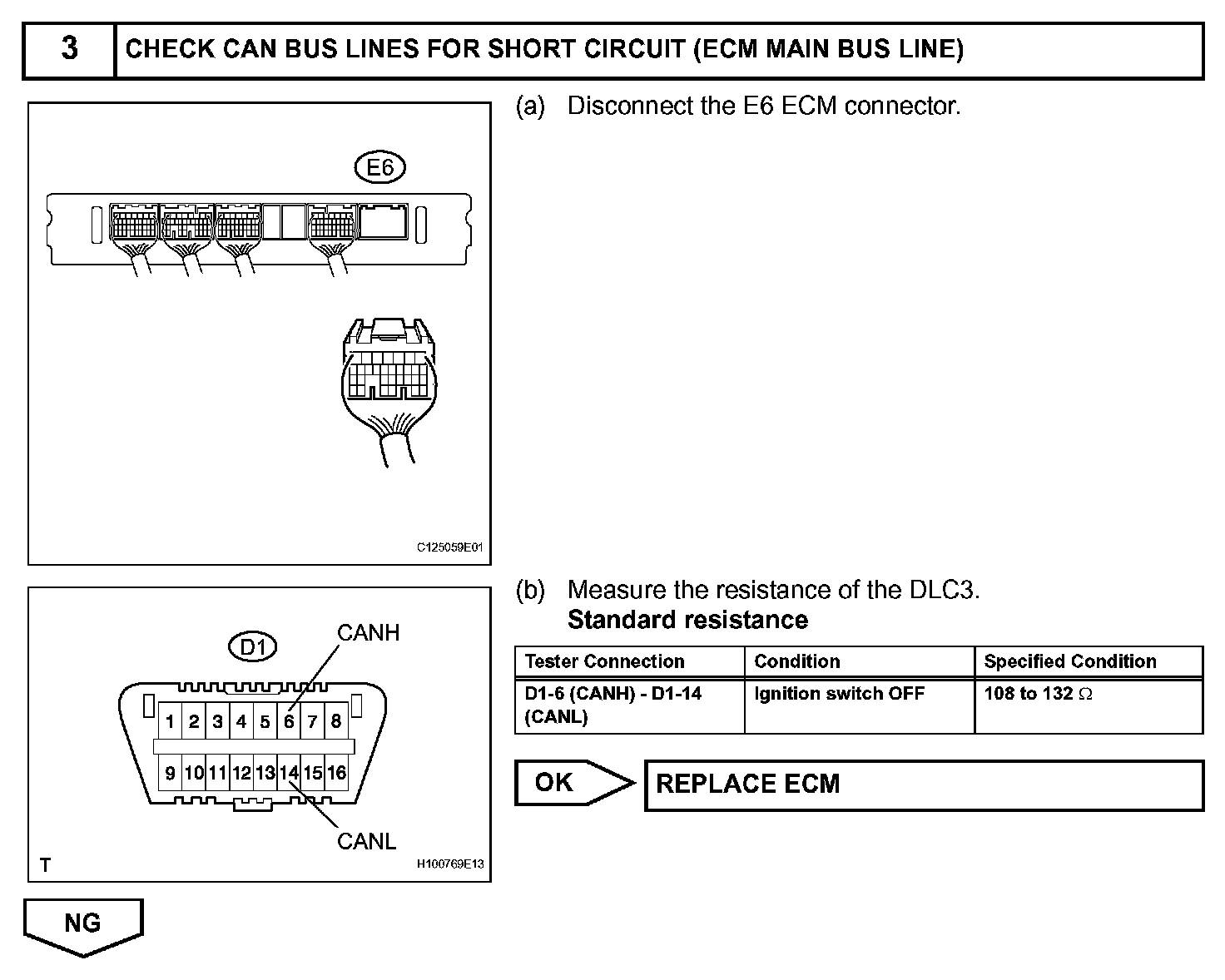

INSPECTION PROCEDURE
