Short to B+ in CAN Bus Line

Short to B+ in CAN Bus Line

DESCRIPTION




There may be a short circuit between the CAN bus line and B+ when there is resistance between terminals 6 (CANH) and 16 (BAT) or terminals 14 (CANL) and 16 (BAT) of the DLC3.

Wiring Diagram:

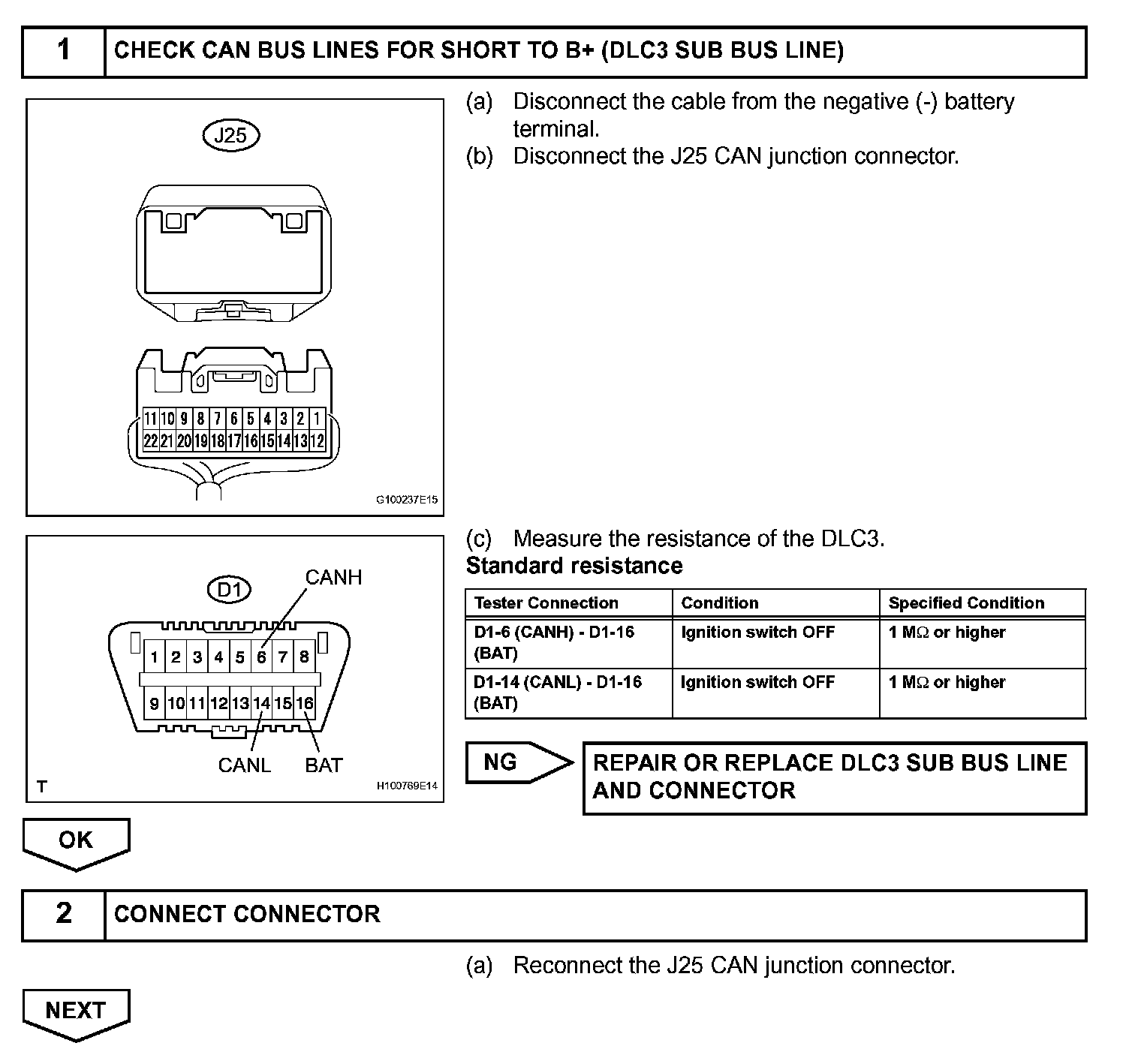

Step 1-2:

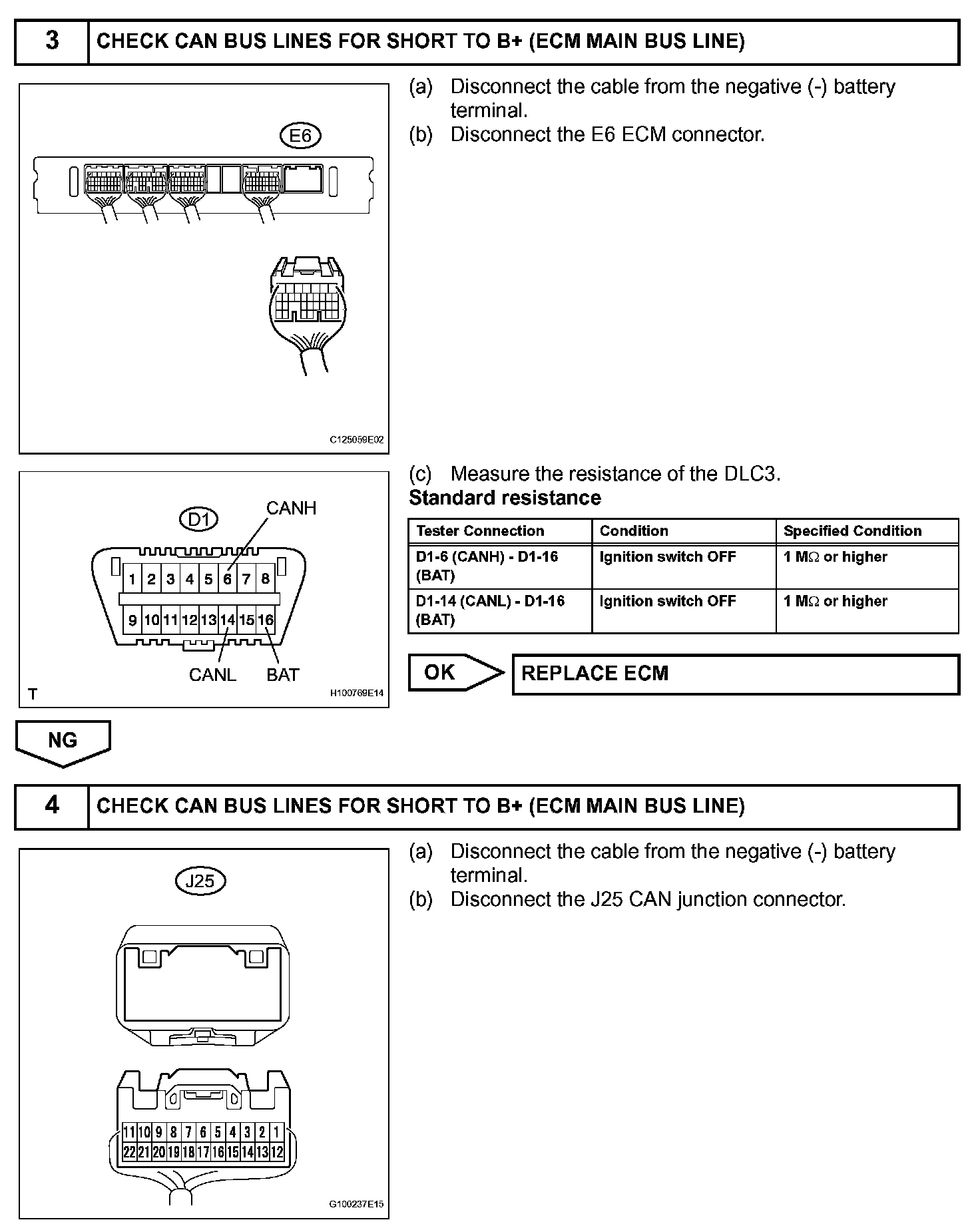

Step 3-4:

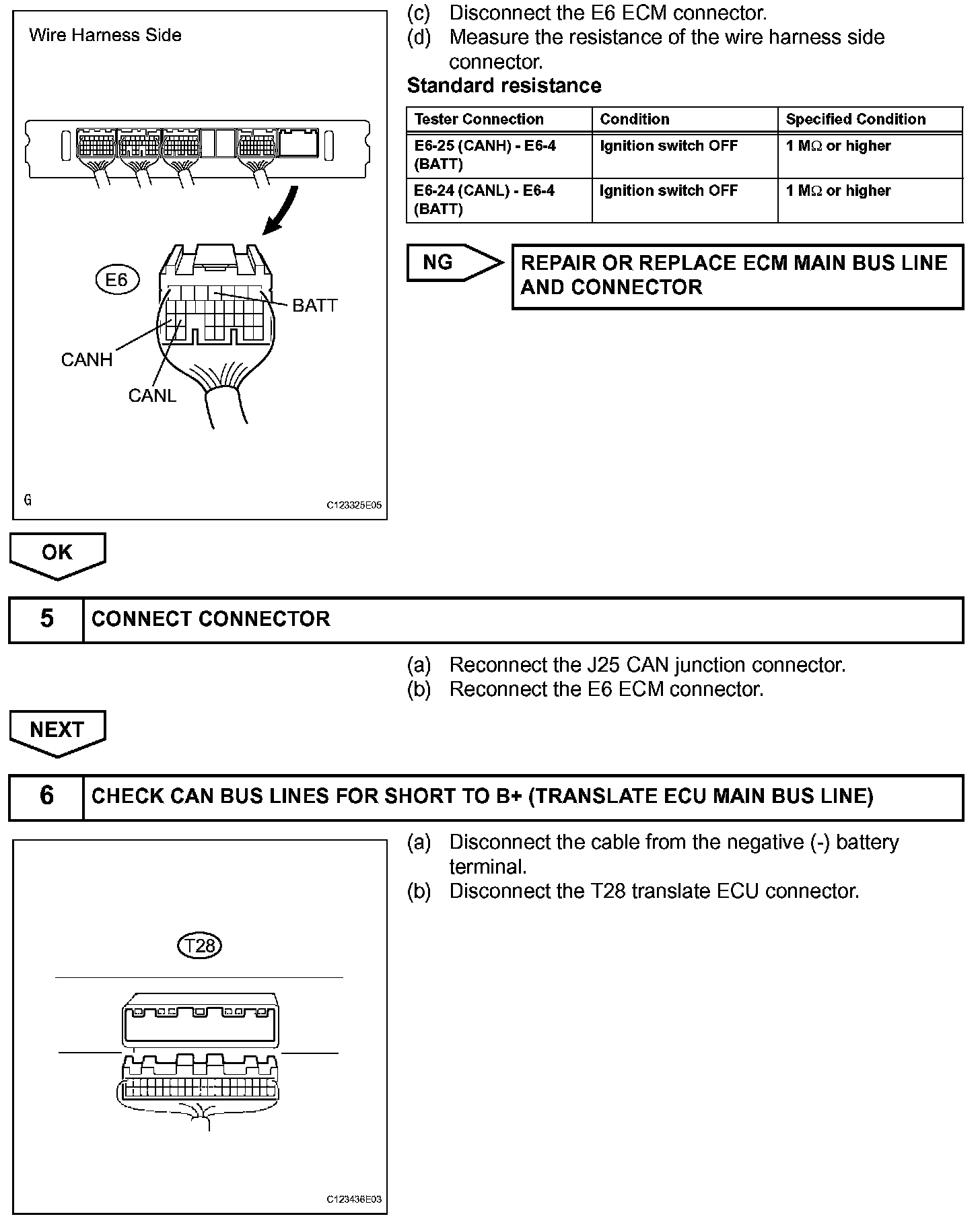

Step 4 (Continued)-6:

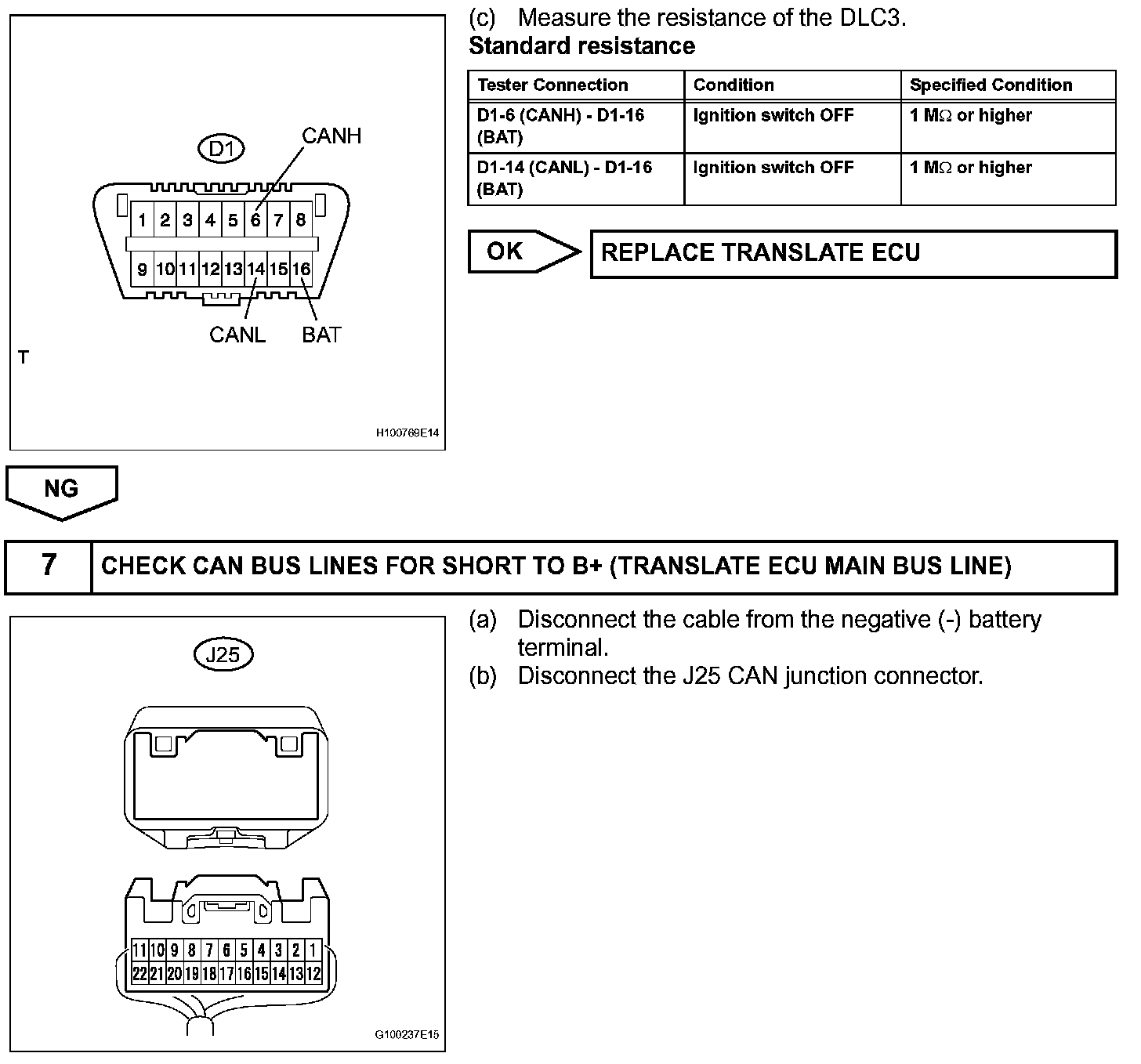

Step 6 (Continued)-7:

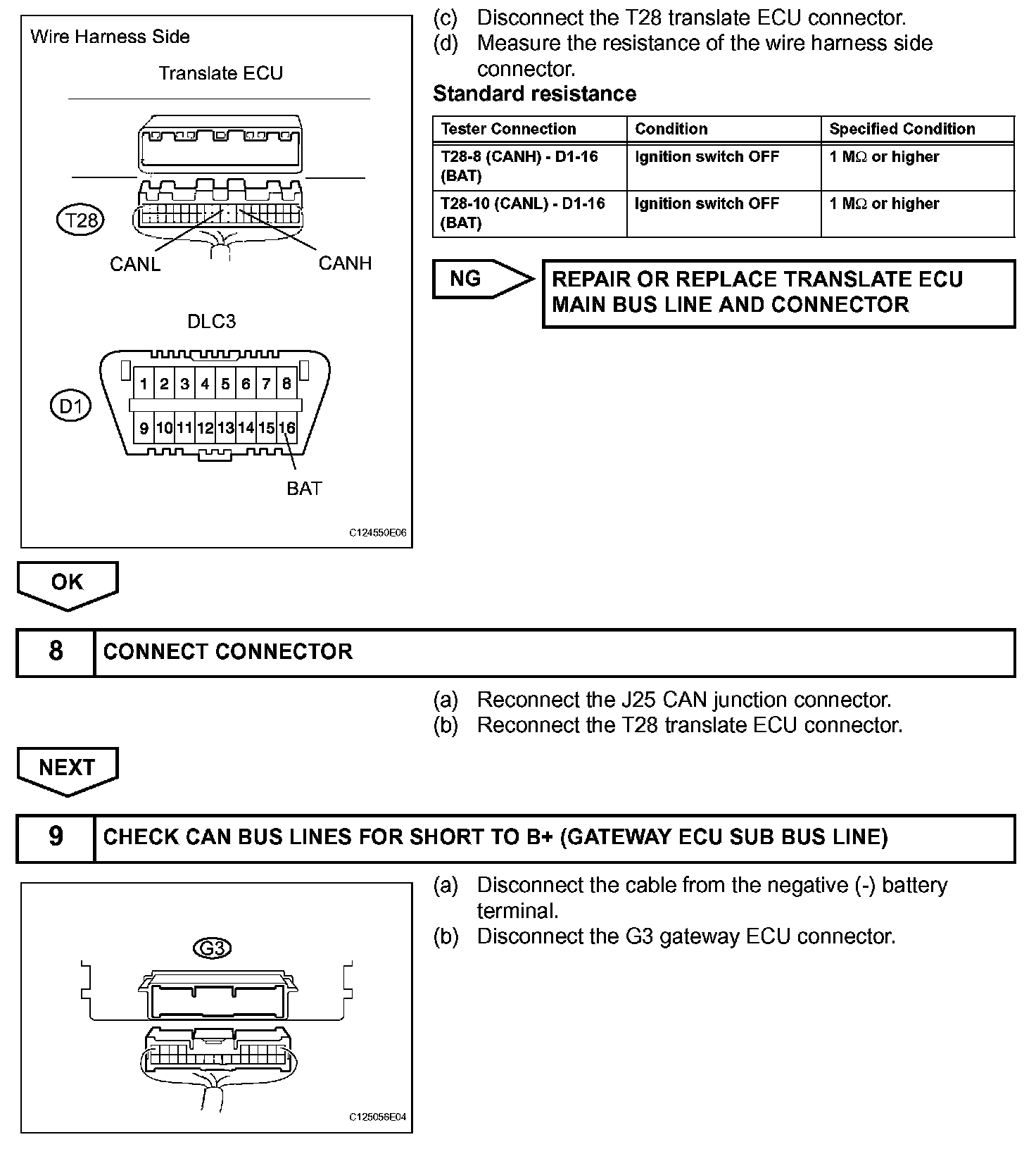

Step 7 (Continued)-9:

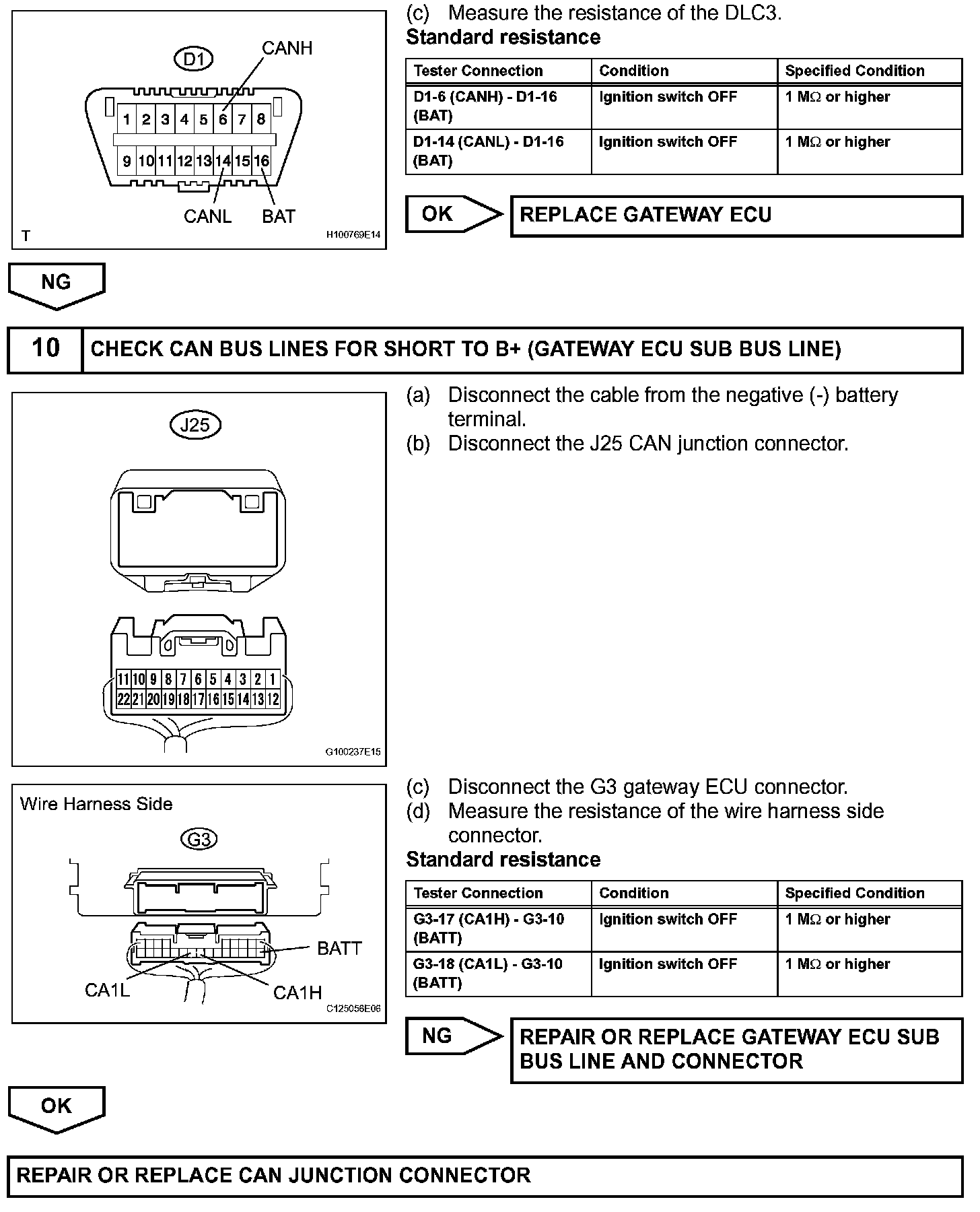

Step 9 (Continued)-10:




INSPECTION PROCEDURE
