CAN Communication System

TERMINALS OF ECU

HINT: The following items describes the standard CAN values for all CAN related components.

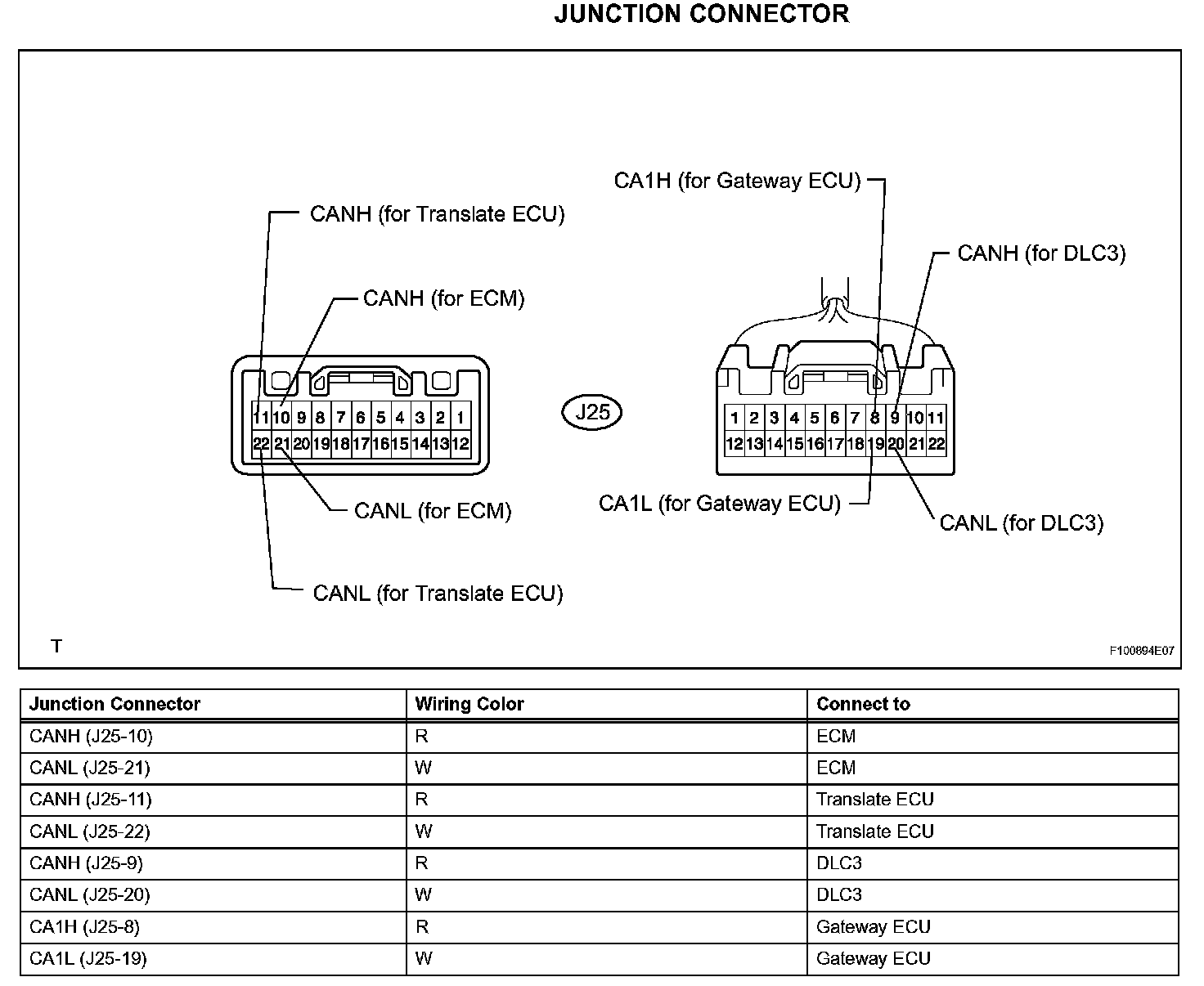

Terminals Of Control Module/Pinouts - Junction Connector:

1. JUNCTION CONNECTOR

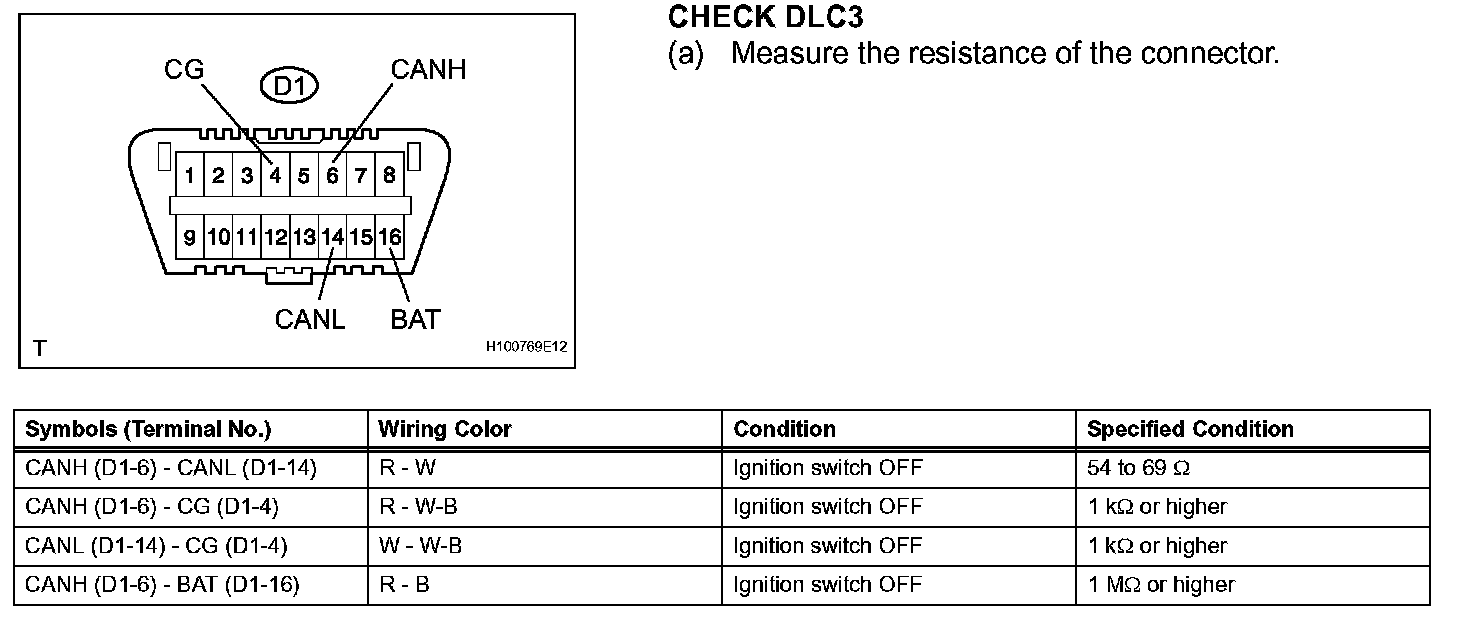

Terminals Of Control Module/Pinouts - Check DLC3 (Part 1):

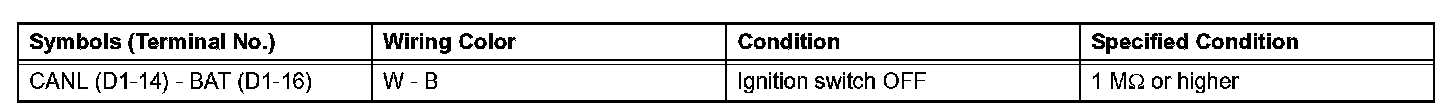

Terminals Of Control Module/Pinouts - Check DLC3 (Part 2):

2. CHECK DLC3

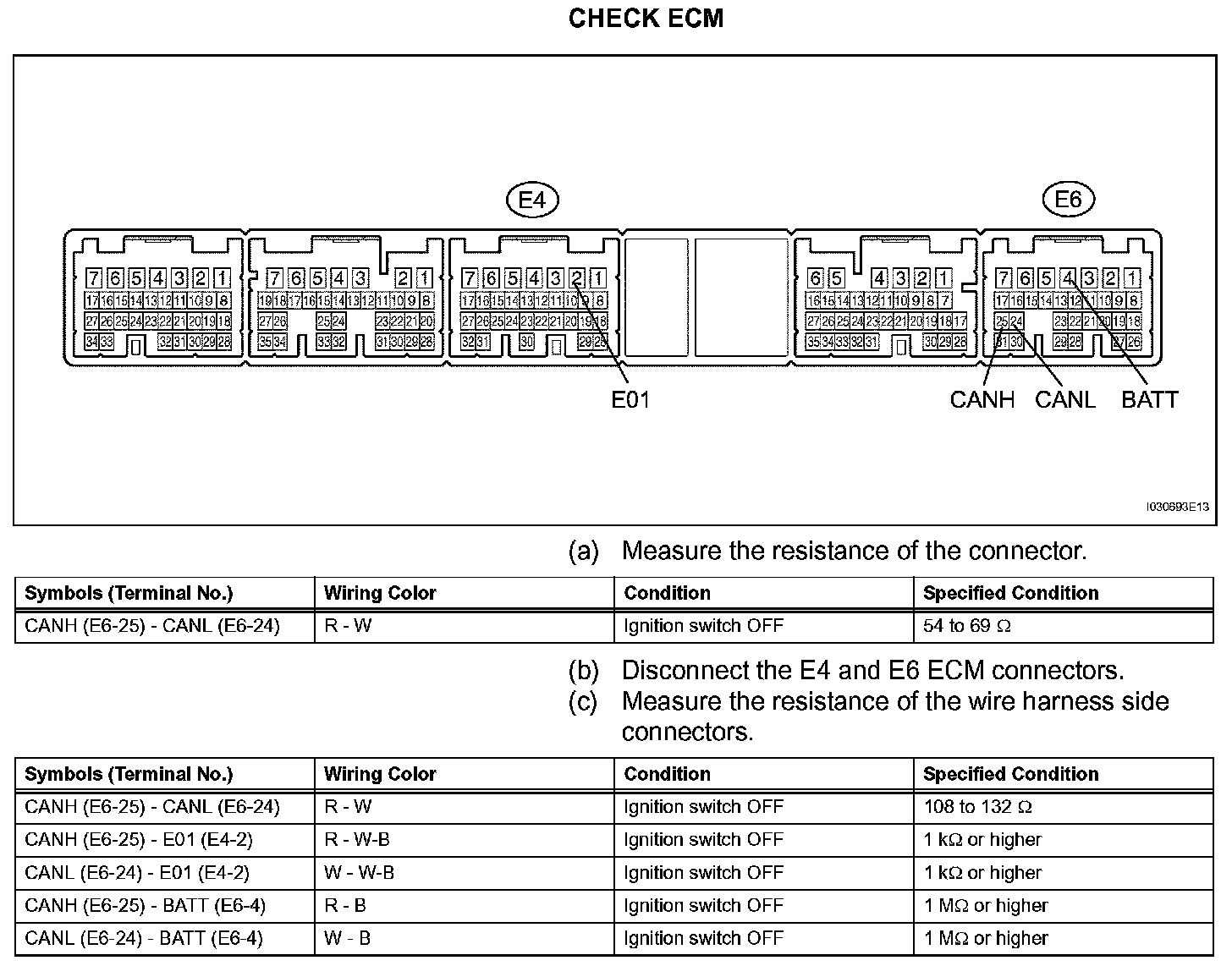

Terminals Of Control Module/Pinouts - Check ECM:

3. CHECK ECM

Terminals Of Control Module/Pinouts - Check Translate ECU (Part 1):

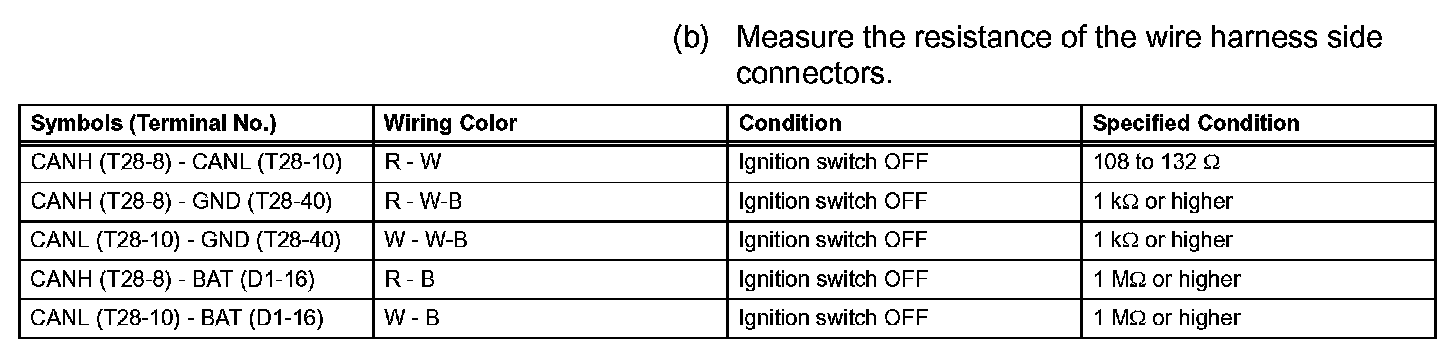

Terminals Of Control Module/Pinouts - Check Translate ECU (Part 2):

4. CHECK TRANSLATE ECU

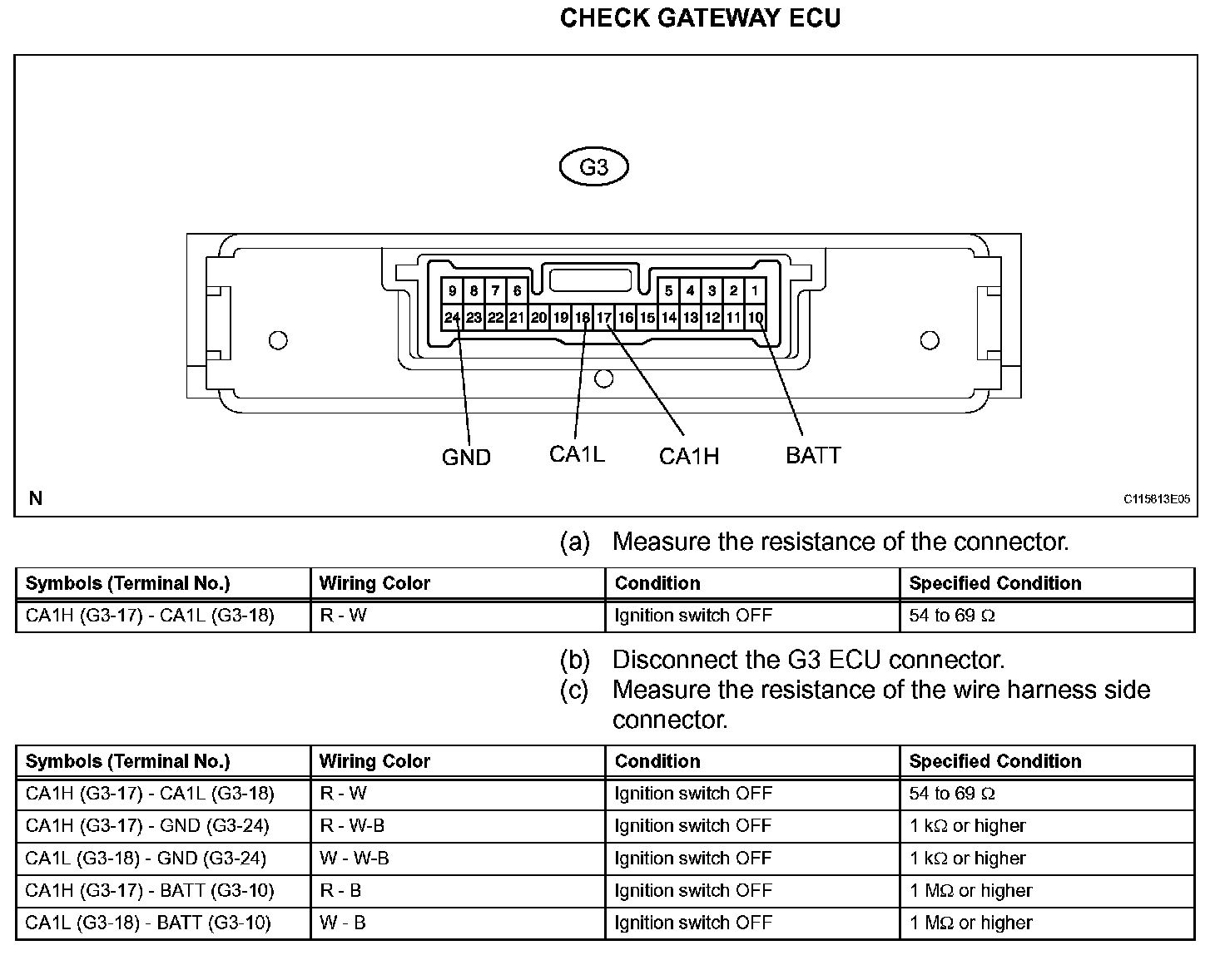

Terminals Of Control Module/Pinouts - Check Gateway ECU:

5. CHECK GATEWAY ECU
