Suspension Control Module

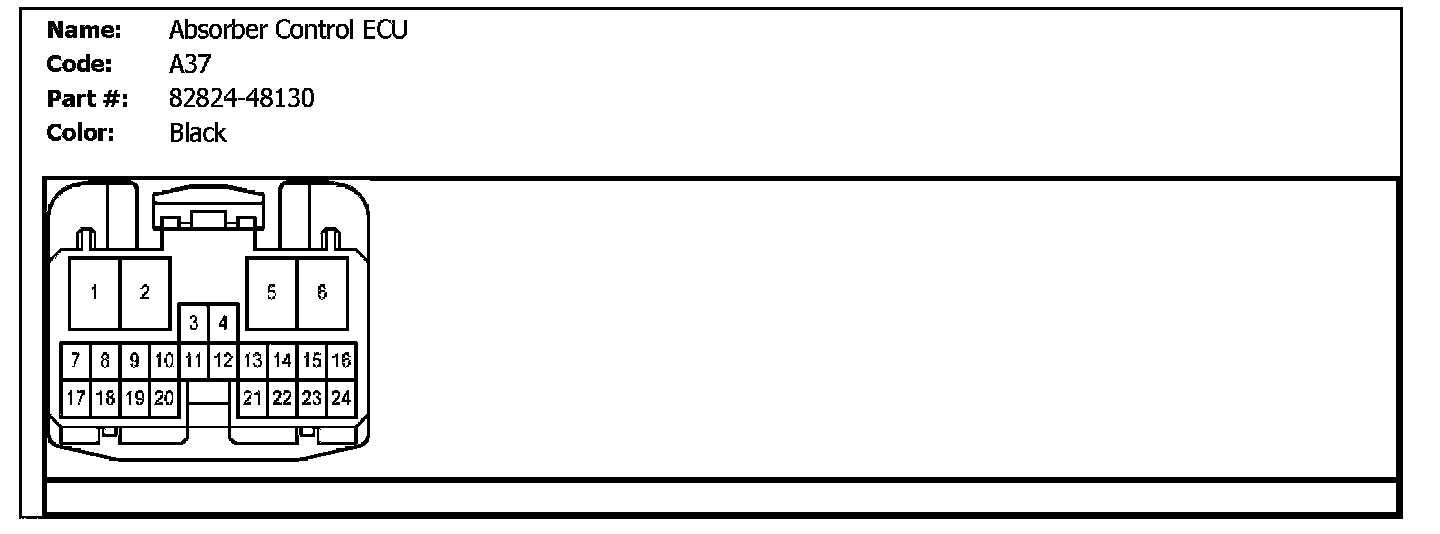

A37 (Absorber Control ECU):

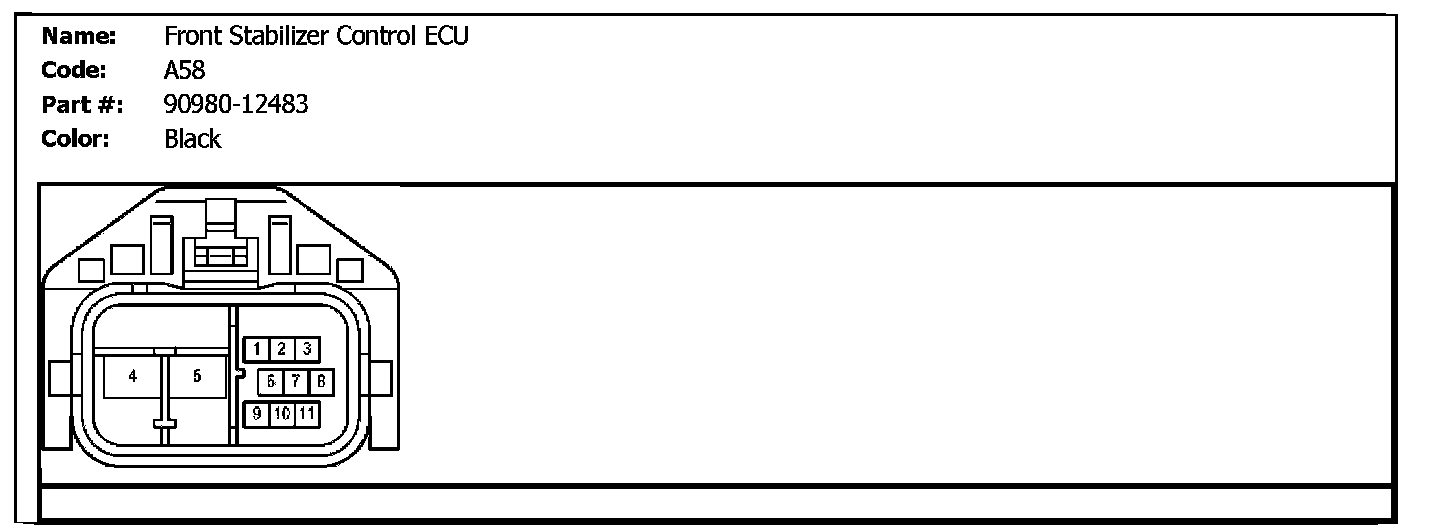

A58 (Front Stabilizer Control ECU):

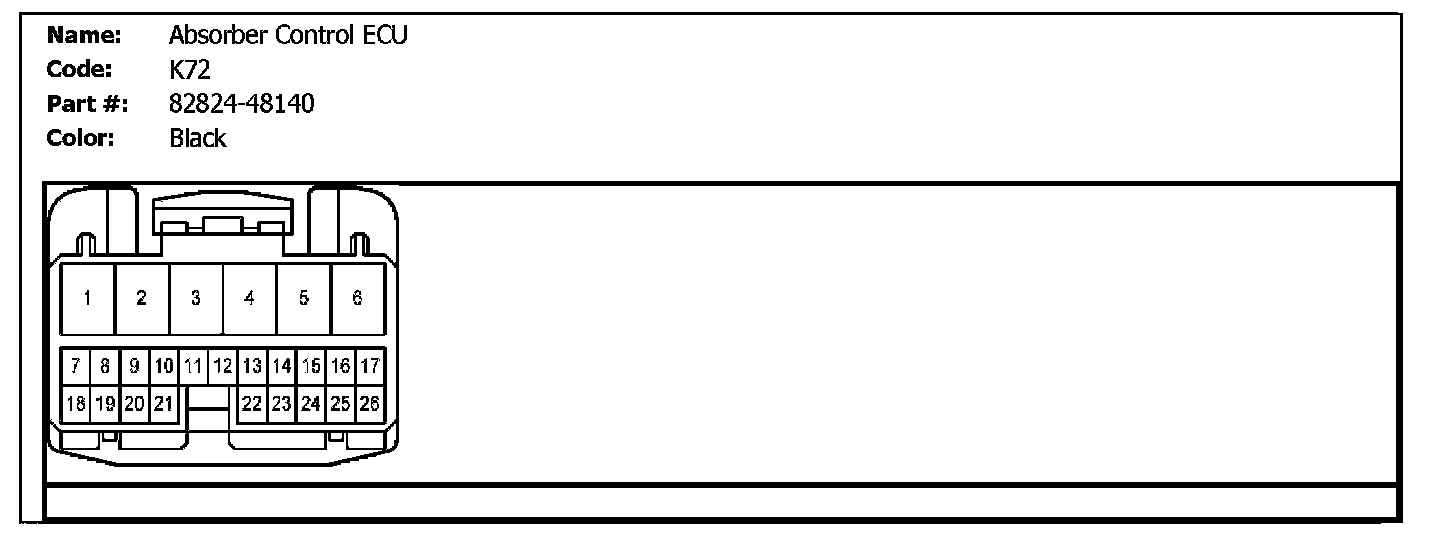

K72 (Absorber Control ECU):

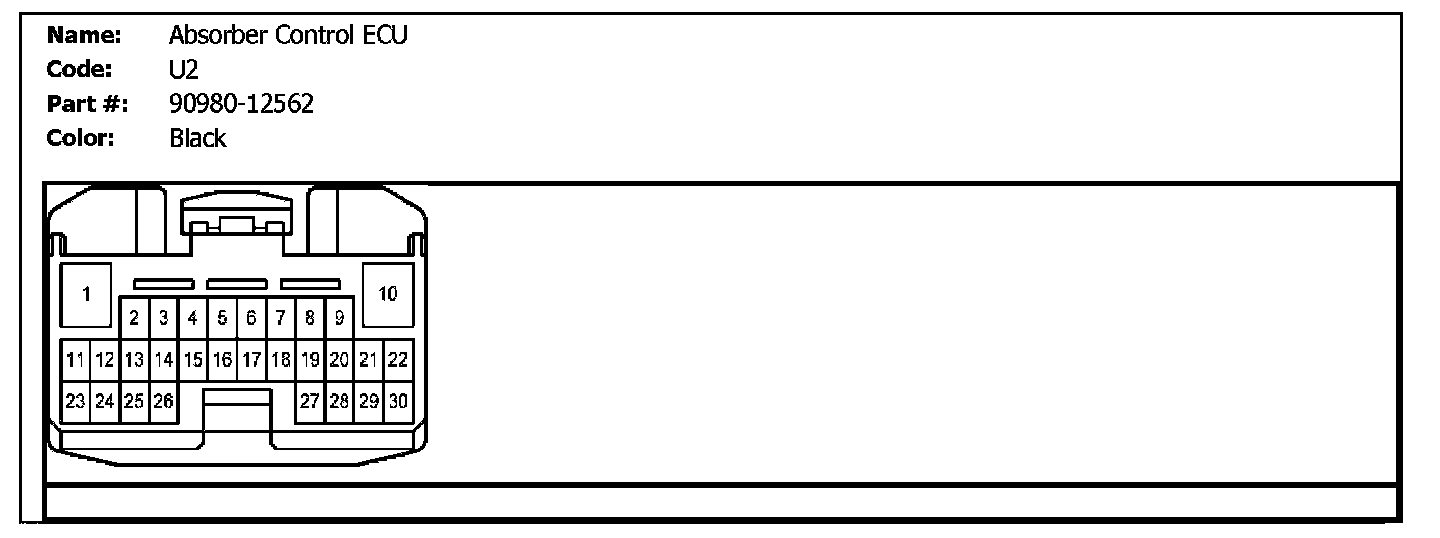

U2 (Absorber Control ECU):

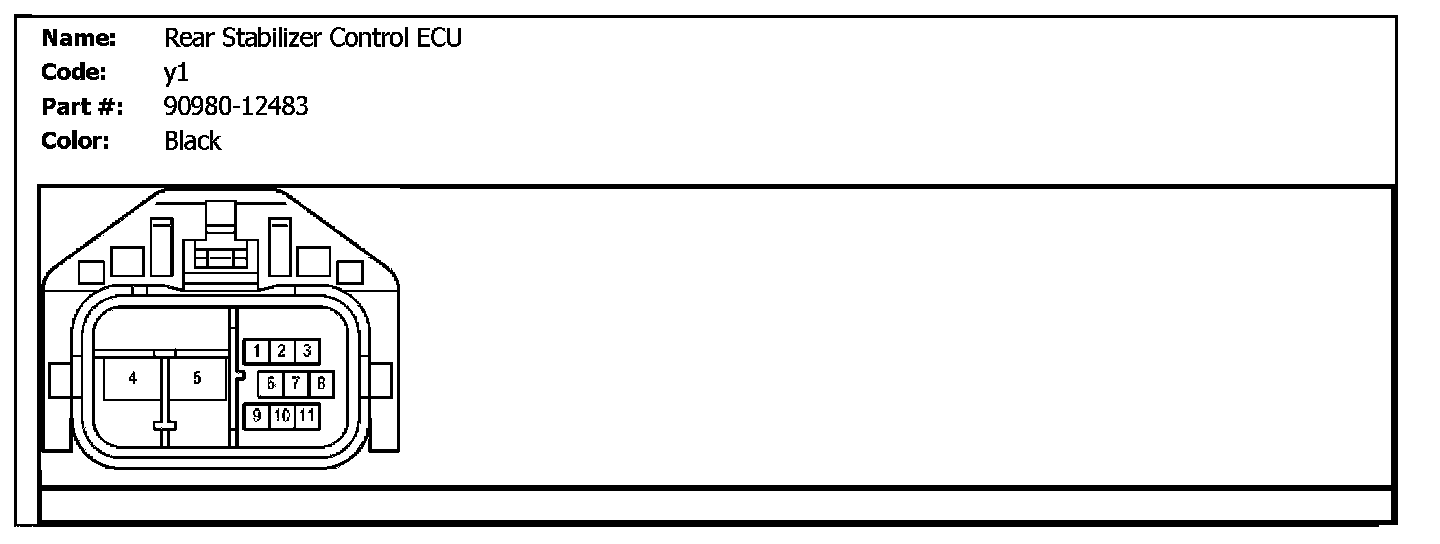

y1 (Rear Stabilizer Control ECU):

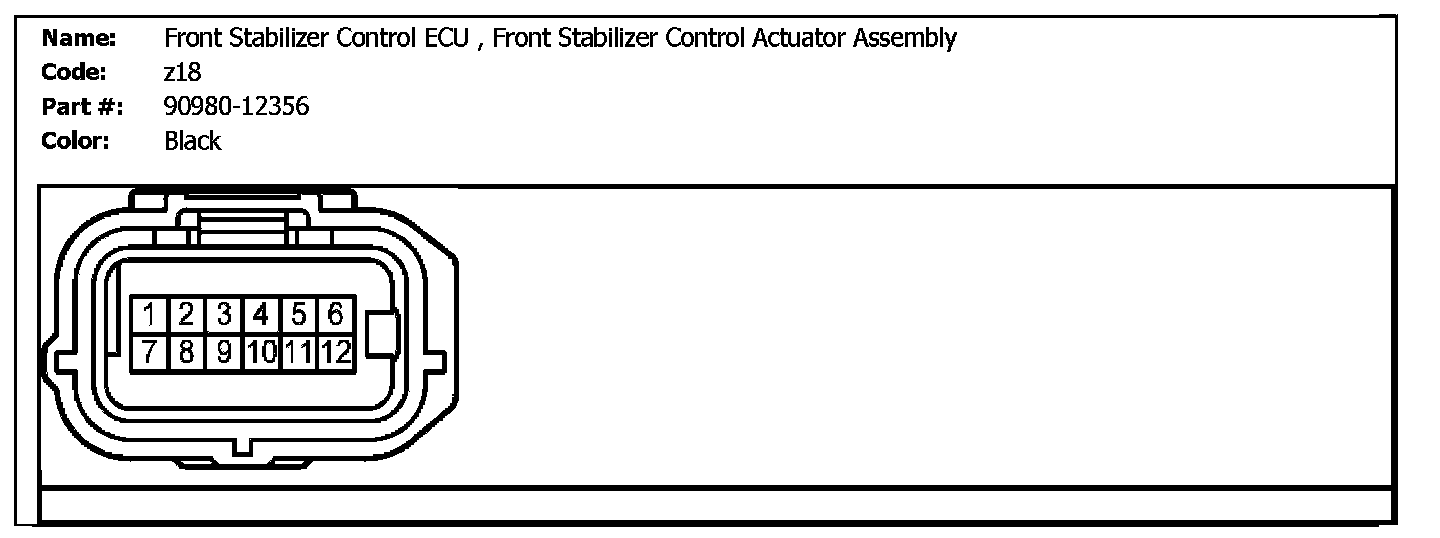

z18 (Front Stabilizer Control ECU, Front Stabilizer Control Actuator Assembly):

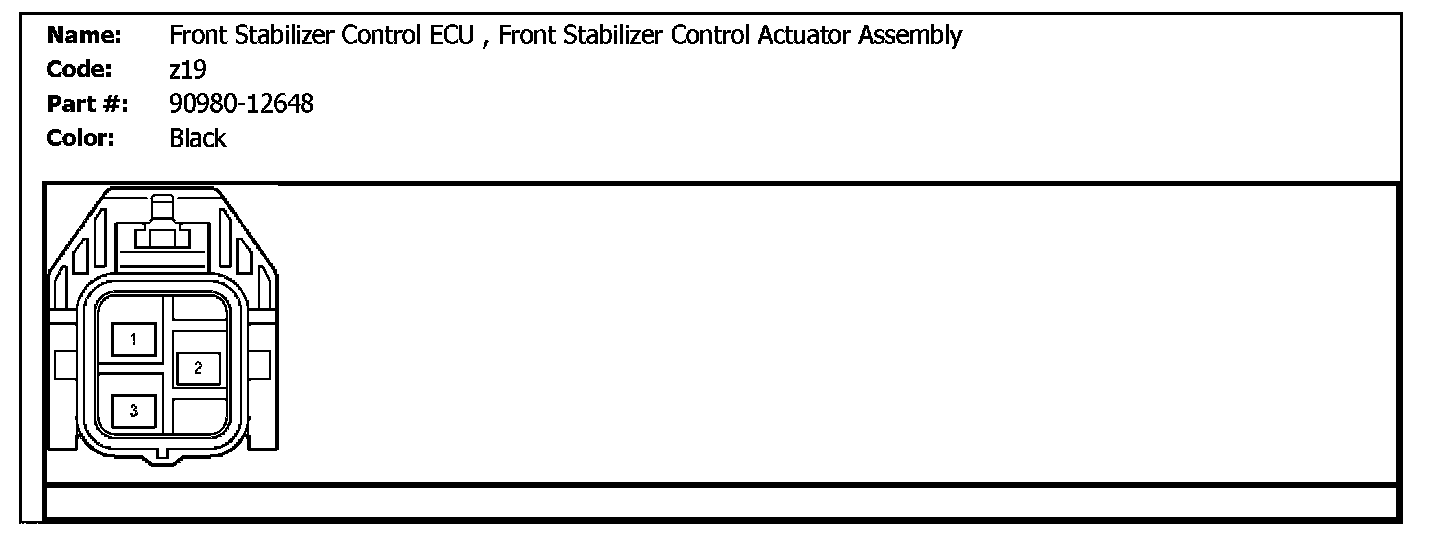

z19 (Front Stabilizer Control ECU, Front Stabilizer Control Actuator Assembly):

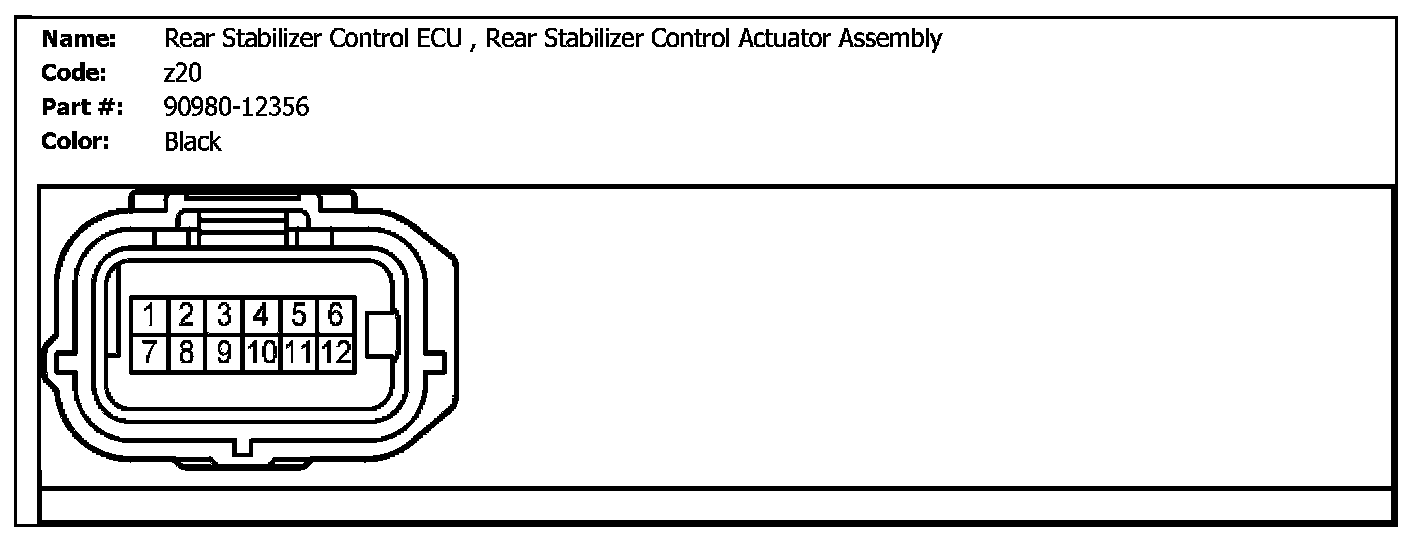

z20 (Rear Stabilizer Control ECU, Rear Stabilizer Control Actuator Assembly):

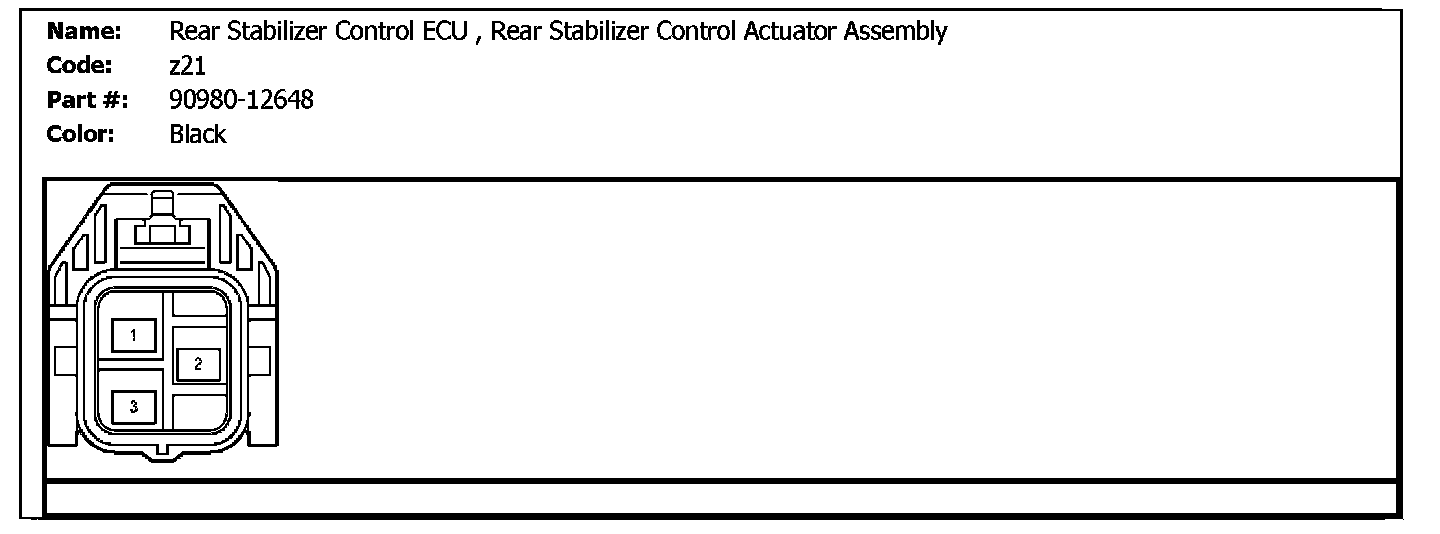

z21 (Rear Stabilizer Control ECU, Rear Stabilizer Control Actuator Assembly):
