Alignment

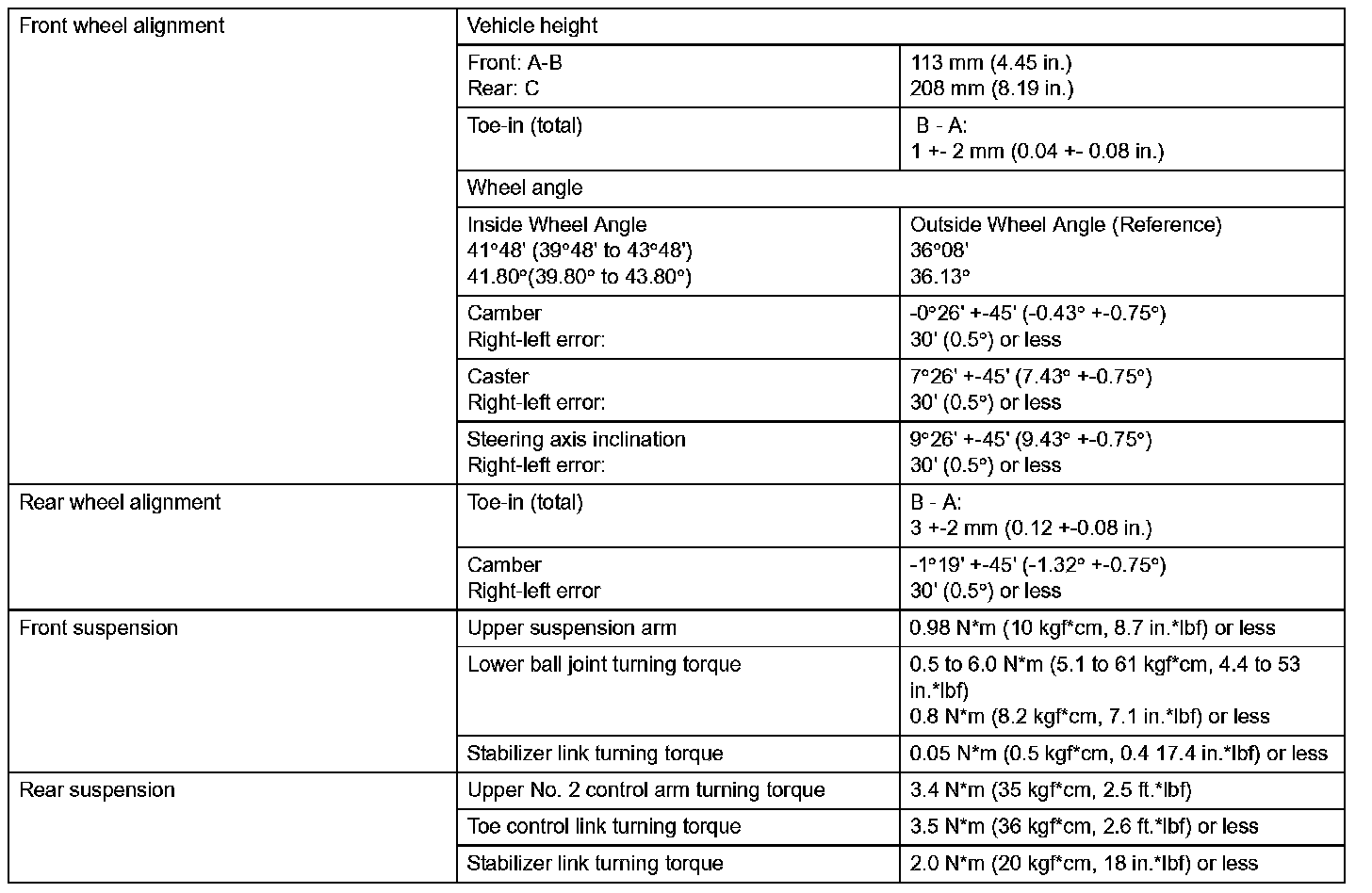

Suspension Service Data:
A: Ground clearance of front wheel center
B:
Ground clearance of front center position of front suspension lower arm assembly front bush installation
C
Ground clearance of rear center position of rear suspension N0. 2 arm bush installation bolt screw thread
