L110 HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER POSITION SENSOR: INSTALLATION

INSTALLATION

1. INSTALL SHIFT LEVER POSITION SENSOR
(a) Install the shift lever position sensor to the transmission.

(b) Temporarily install the 2 bolts.

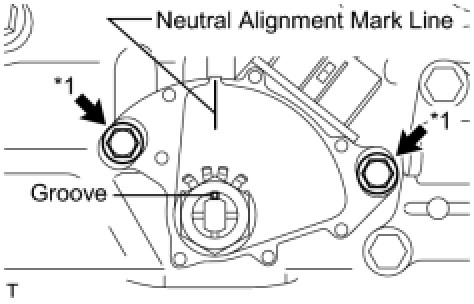

HINT: Fully tighten the bolts with the neutral alignment mark line aligned with the groove. [*1]

(d) Temporarily install the control shaft lever.

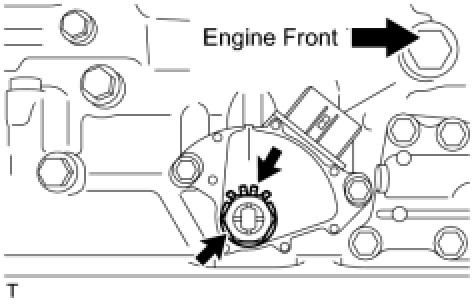

HINT: Stake the claws of the nut stopper before fully tightening the nut. [*2]

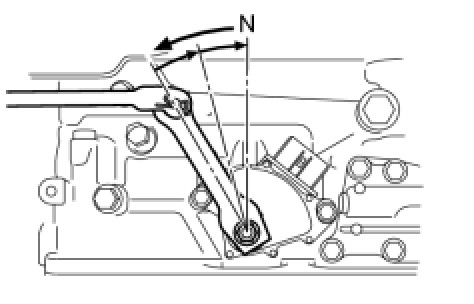

(e) Turn the control shaft lever counterclockwise until it stops. Next, turn the control shaft lever clockwise 2 notches to set it to the N position.

(f) Remove the transmission control shaft lever.

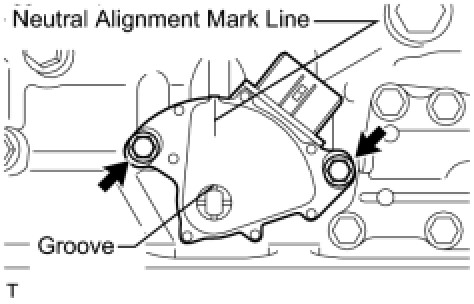

(g) Align the neutral alignment mark line with the switch groove, and tighten the 2 adjusting bolts. [*1]
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)

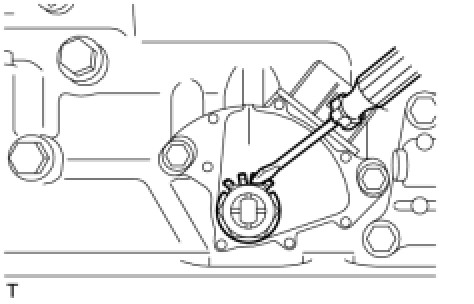

(h) Using a screwdriver, bend the lock washer tabs to secure the nut.
NOTE: Make sure that the nut is held firmly.

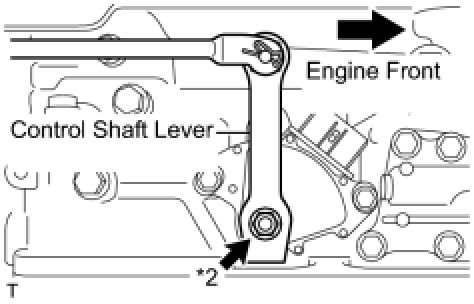

(i) Install the transmission control shaft lever with the nut. [*2]
Torque: 16 Nm (163 kgf-cm, 12 ft-lbf)

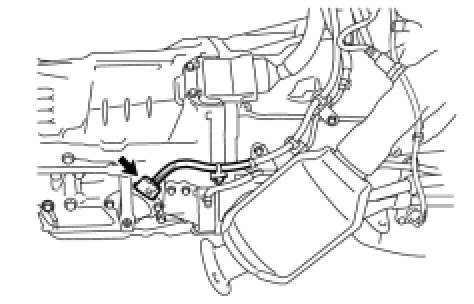

(j) Connect the shift lever position sensor connector.
2. INSTALL OIL COOLER TUBE

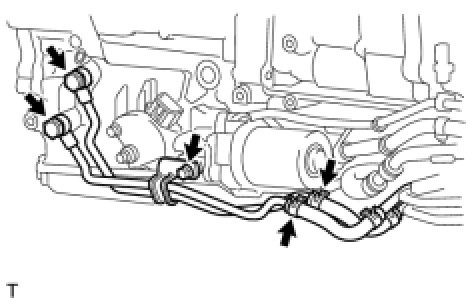

(a) Install the oil cooler tube and 4 new gaskets with the 2 bolts.
Torque: 28 Nm (280 kgf-cm, 20 ft-lbf)
(b) Install the oil cooler tube with the bolt.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(c) Secure the 2 hoses with the 2 clips.
3. INSTALL ENGINE WITH TRANSMISSION
Installation.
4. INSPECT SHIFT LEVER POSITION Testing and Inspection

5. ADJUST SHIFT LEVER POSITION Adjustments

6. INSPECT SHIFT LEVER OPERATION Testing and Inspection
