Pre-Collision System

PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

PRE-COLLISION: PRE-COLLISION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

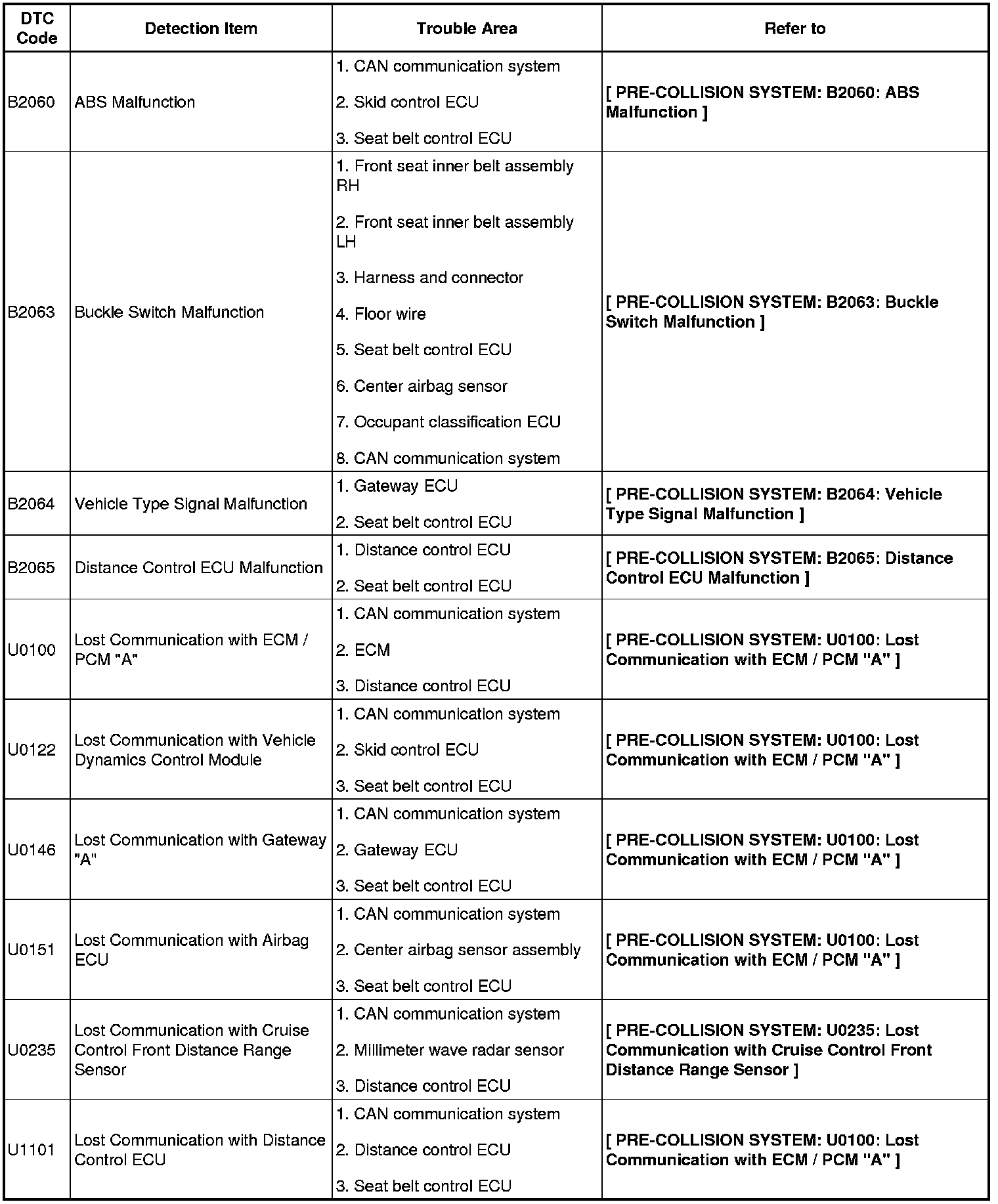

If a trouble code is displayed during the DTC check, inspect the trouble areas listed for that code in the table below.

Pre-Collision System
