Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2008
>>
IS F V8-5.0L (2UR-GSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Components
Components

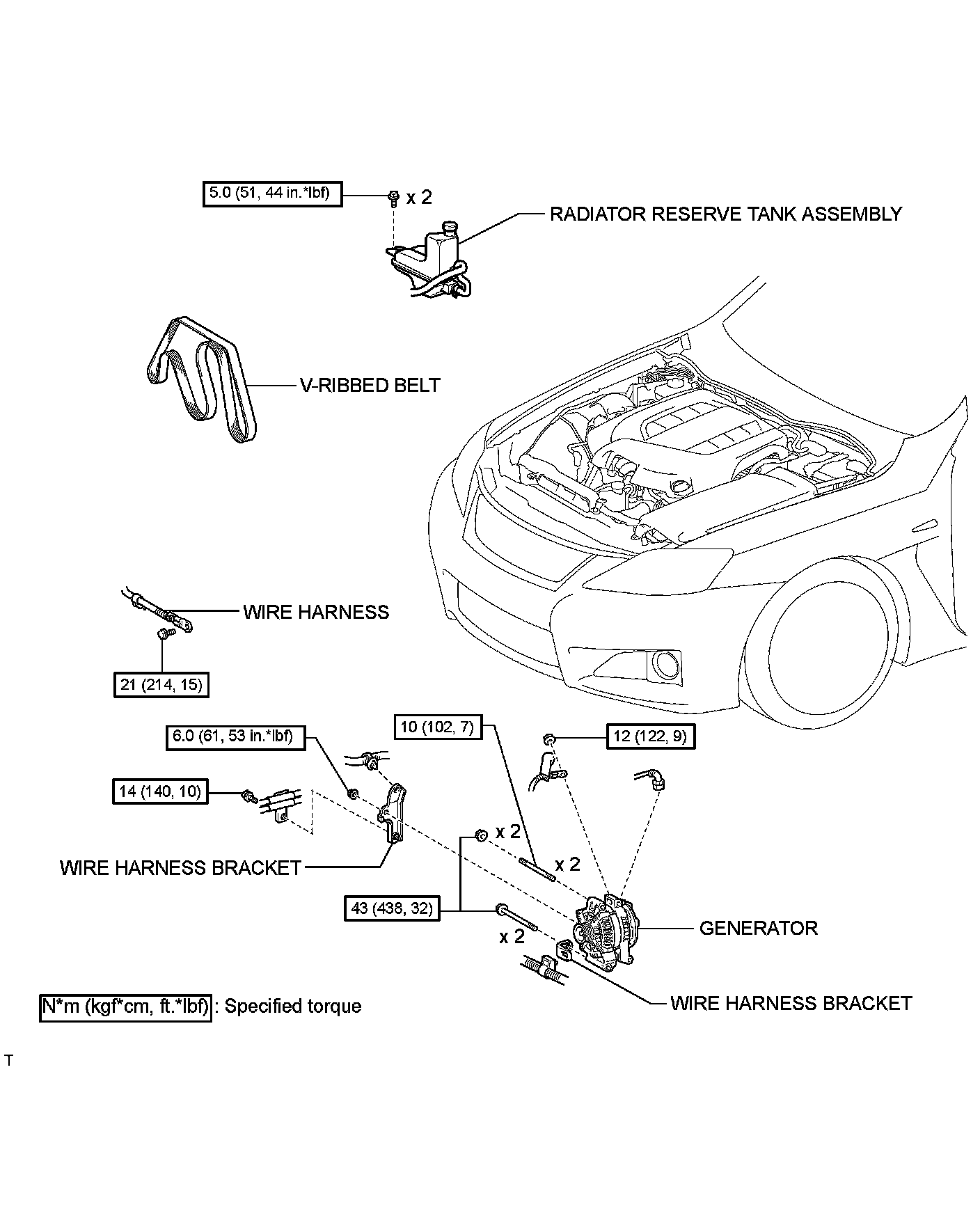

2UR-GSE BATTERY / CHARGING: GENERATOR: COMPONENTS
2UR-GSE BATTERY / CHARGING: GENERATOR: COMPONENTS
ILLUSTRATION
