Frame Wire

eL1 (Frame No.4 Wire And Floor No.2 Wire (Floor Panel)):

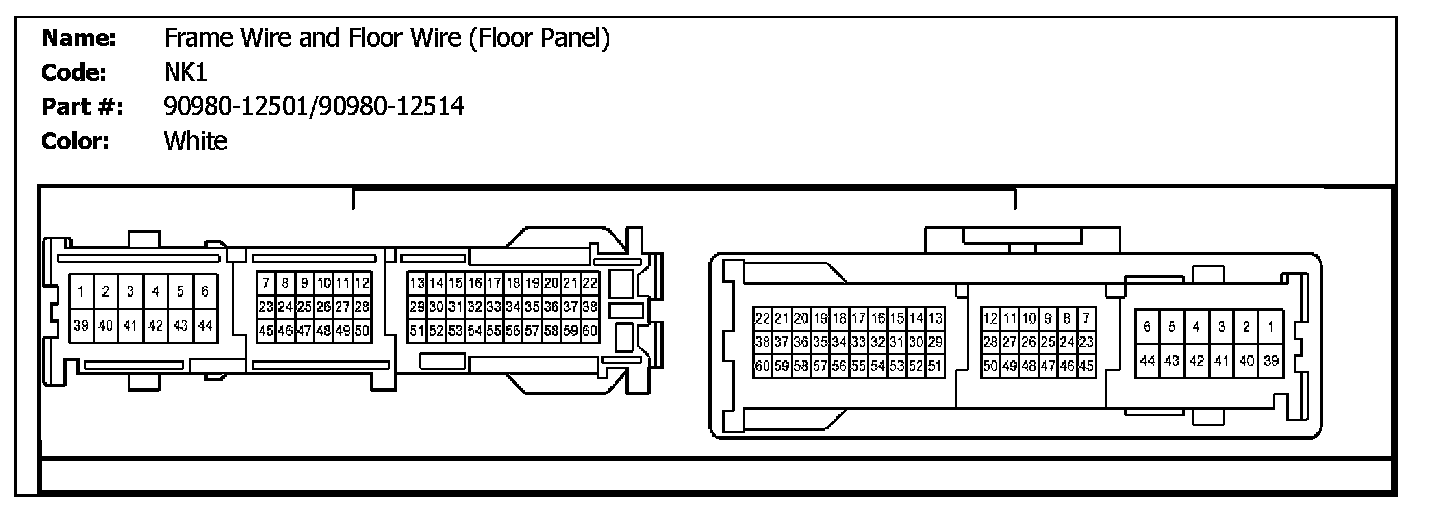

NK1 (Frame Wire And Floor Wire (Floor Panel)):

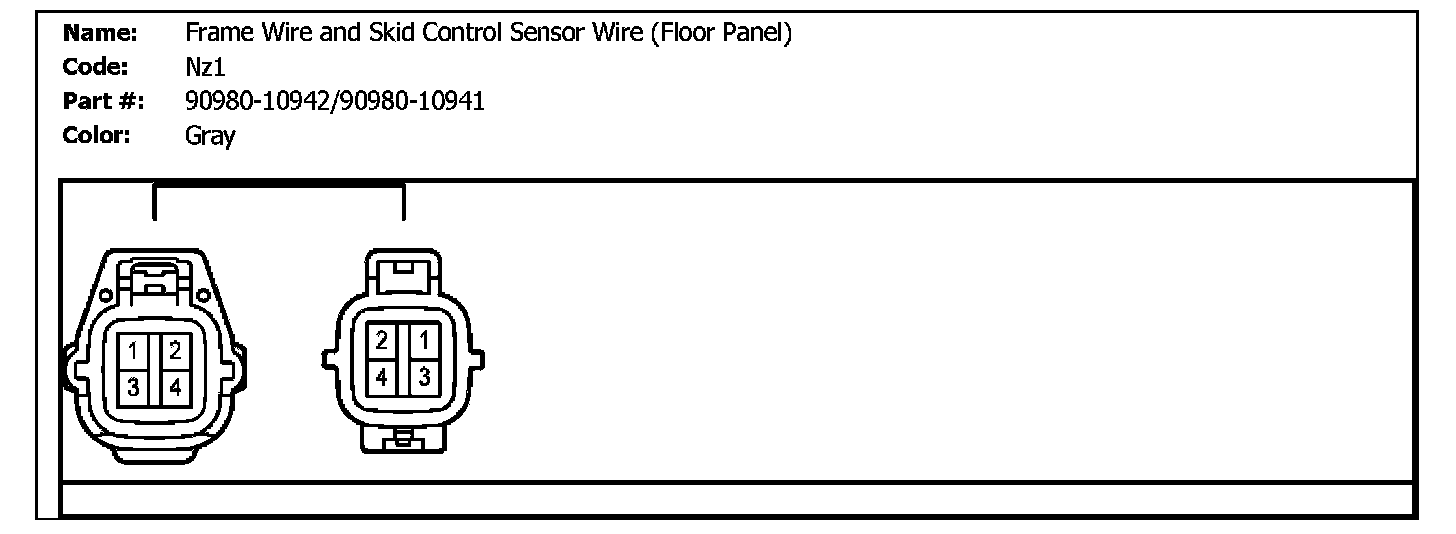

Nz1 (Frame Wire And Skid Control Sensor Wire (Floor Panel)):

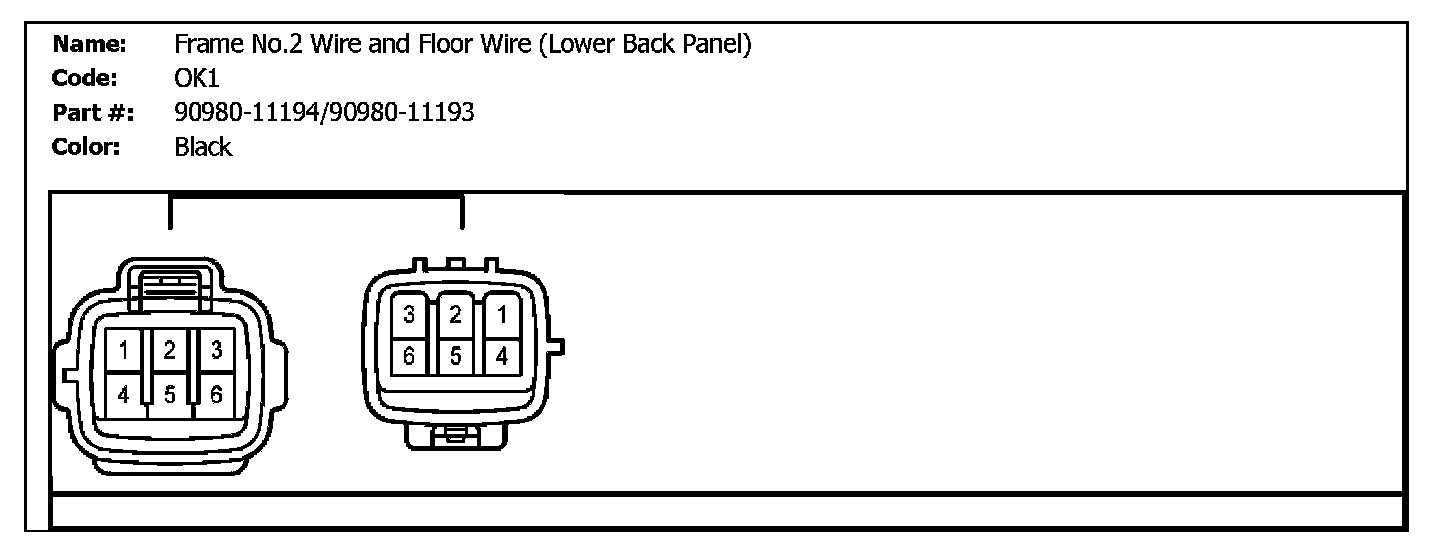

OK1 (Frame No.2 Wire And Floor Wire (Lower Back Panel)):

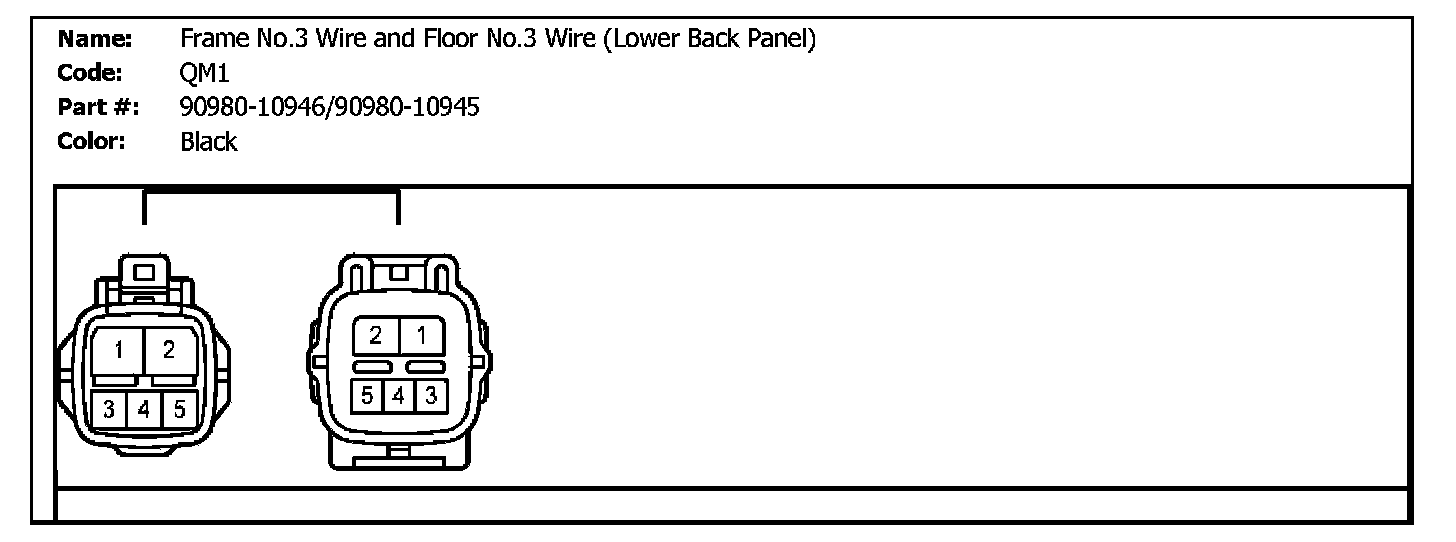

QM1 (Frame No.3 Wire And Floor No.3 Wire (Lower Back Panel)):

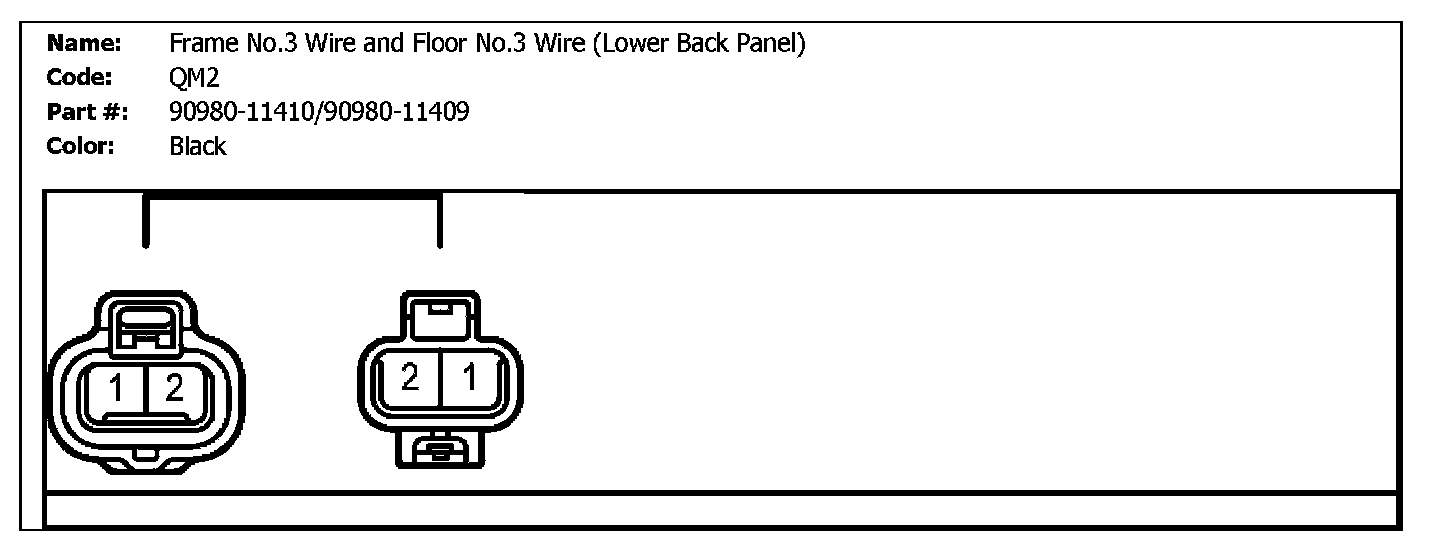

QM2 (Frame No.3 Wire And Floor No.3 Wire (Lower Back Panel)):
