Installation

HEATING / AIR CONDITIONING: CONDENSER FAN: INSTALLATION

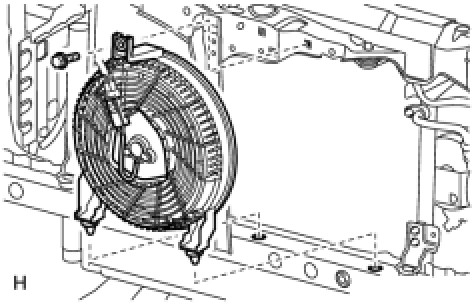

1. INSTALL SHROUD BLOWER ASSEMBLY
(a) Install the shroud blower with the bolt.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(b) Connect the connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. INSTALL FRONT BUMPER COVER
(a) Install the front bumper cover Installation.
