Installation

HEATING / AIR CONDITIONING: DUCT TEMPERATURE SENSOR: INSTALLATION

1. INSTALL COOLER THERMISTOR

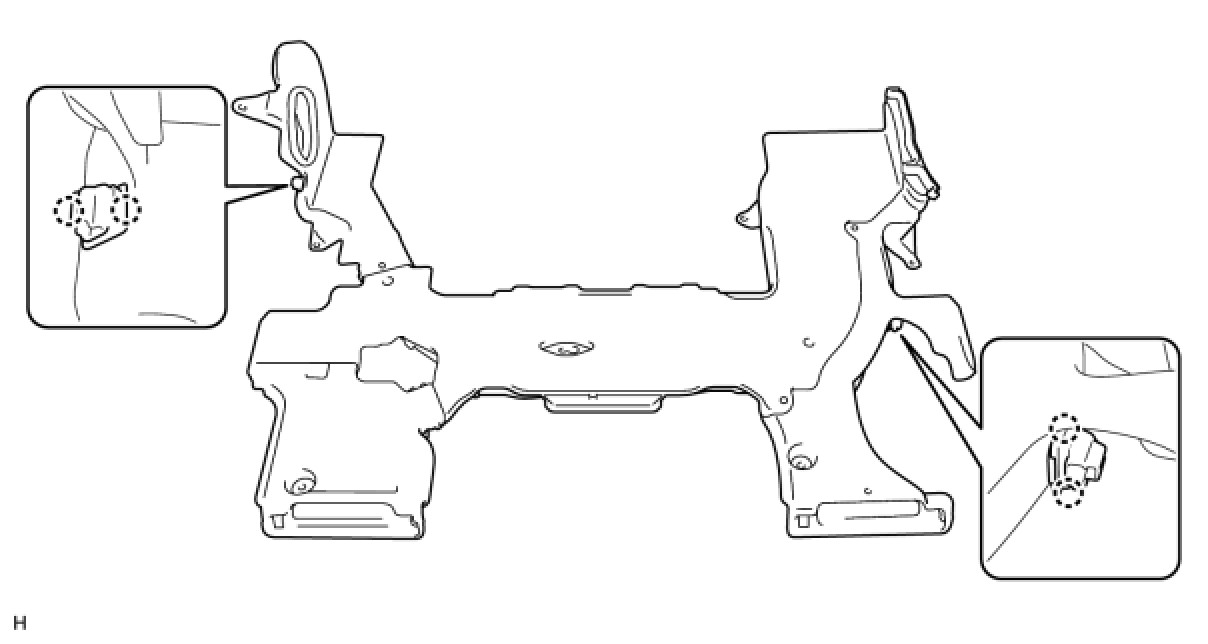

(a) Attach the 4 claws to install the 2 sensors.





2. INSTALL REAR NO. 6 AIR DUCT

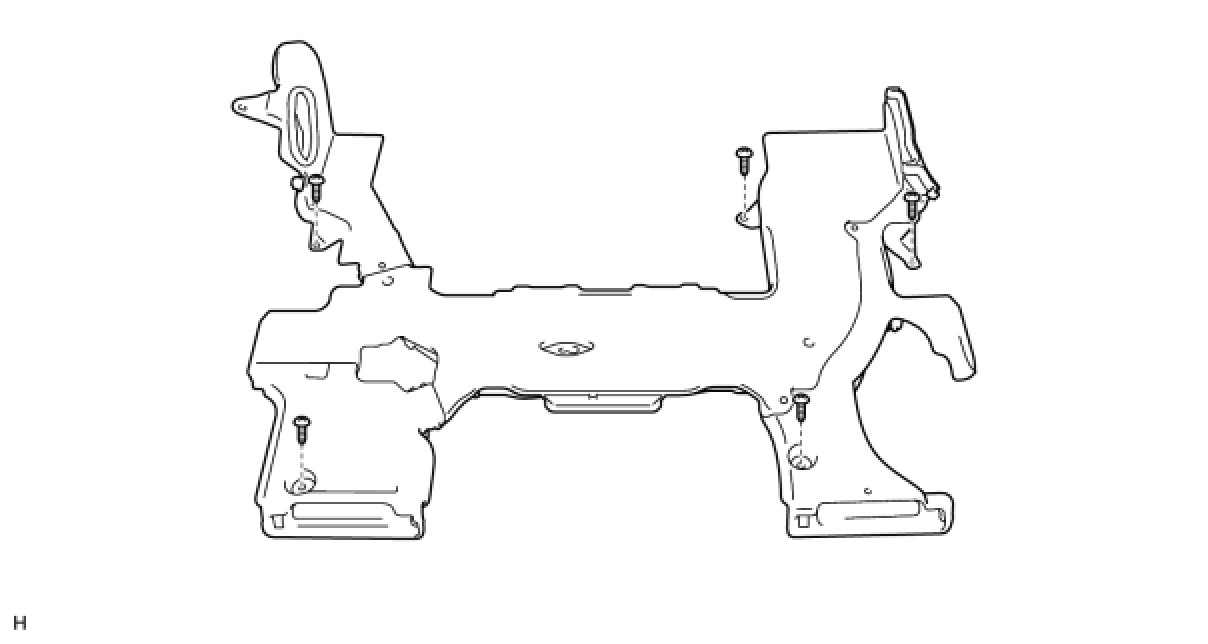

(a) Install the duct with the 5 screws.
(b) Connect the 2 connectors.





3. INSTALL FRONT FLOOR CARPET ASSEMBLY
(a) Install the floor carpet.
(b) Install the 2 clips.
4. INSTALL REAR NO. 1 SEAT PROTECTOR Installation

5. INSTALL REAR NO. 2 SEAT PROTECTOR Installation

6. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation

7. INSTALL REAR SEAT COVER CAP (for Semi Power Seat) Installation

8. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY RH Installation

9. INSTALL REAR SEAT COVER CAP (for Semi Power Seat) Installation

10. INSTALL REAR FLOOR MAT SUPPORT PLATE REAR Installation

11. INSTALL REAR DOOR SCUFF PLATE LH Installation

12. INSTALL REAR DOOR SCUFF PLATE RH Installation

13. INSTALL REAR STEP COVER Installation

14. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) Install the rear No. 2 seat assembly Installation.
15. INSTALL REAR NO. 2 SEAT ASSEMBLY RH
(a) Install the rear No. 2 seat assembly Installation.
16. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
(a) Install the rear No. 1 seat assembly Installation.
17. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
(a) Install the rear No. 1 seat assembly Installation.
18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

19. INSTALL ENGINE ROOM SIDE COVER LH Installation

20. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Check Mode Procedure.
