Starter Relay: Testing and Inspection

3UR-FE STARTING: RELAY: ON-VEHICLE INSPECTION

1. INSPECT STARTER RELAY (ST)






(a) Measure the resistance according to the value(s) in the table below.

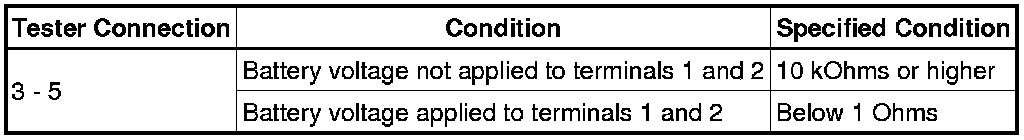

Standard Resistance:





If the result is not as specified, replace the relay.
2. INSPECT STARTER CUT RELAY (ST CUT)






(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the relay.
3. INSPECT MAIN BODY ECU (ACC RELAY)

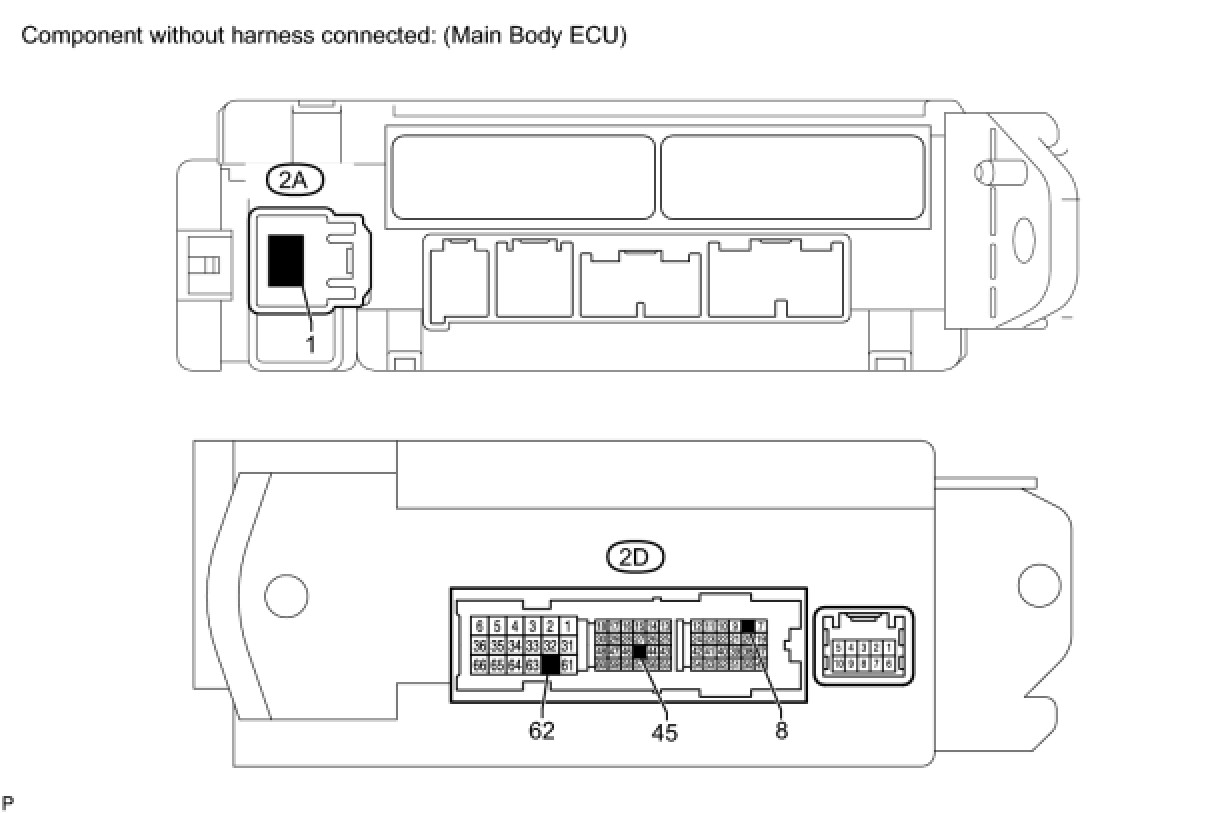

(a) Measure the resistance of the ACC relay circuit.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:






If the result is not as specified, replace the main body ECU.
