Removal

WINDOW / GLASS: REAR POWER WINDOW SWITCH: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH

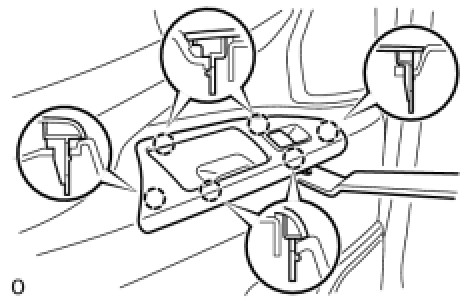

(a) Using a moulding remover, detach the 6 claws.
(b) Disconnect the connector and remove the armrest base panel.
2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

(a) Detach the 2 claws and remove the regulator switch.
