Installation

CRUISE CONTROL: LASER SENSOR:

INSTALLATION

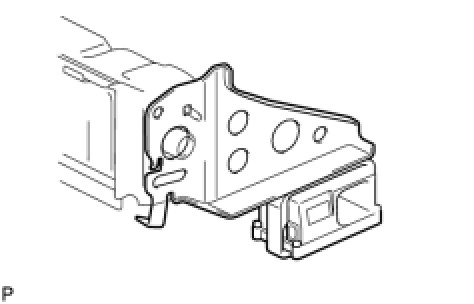

1. INSTALL LASER SENSOR






(a) Connect the connector.
(b) Hang the laser sensor onto the RH side member.
NOTE: Do not install the laser sensor if it has been damaged or impacted in any way.

2. INSTALL FRONT BUMPER REINFORCEMENT Reassembly

3. INSTALL FRONT BUMPER ENERGY ABSORBER
4. INSTALL FRONT BUMPER ASSEMBLY
5. INSTALL FRONT BUMPER STAY CENTER
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. ADJUST LASER SENSOR Adjustments

8. PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. Repair Instruction - Initialization
