Compressor HVAC: Testing and Inspection
AIR CONDITIONING: ELECTRIC INVERTER COMPRESSOR:INSPECTION 1.
INSPECT ELECTRIC INVERTER COMPRESSOR
(a)

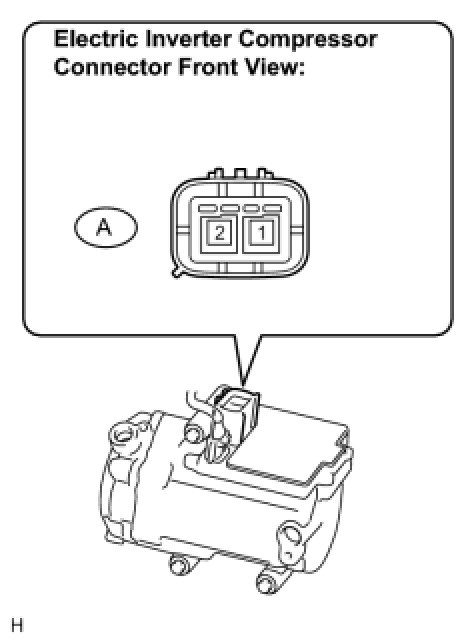

Disconnect the connector from the electric inverter compressor (A).
(b)
Using a megohm tester, measure the resistance according to the value(s) in the table below.
Resistance:
