Installation

3MZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

INSTALLATION

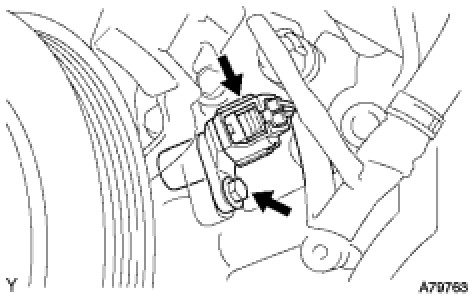

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.






(b) Install the crankshaft position sensor with the bolt.
Torque: 8.0 Nm (80 kgf-cm, 71 in-lbf)
(c) Connect the crankshaft position sensor connector.
2. INSTALL FRONT FENDER APRON SEAL RH






(a) Install the front fender apron seal RH with the clip and 2 bolts.
3. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH






(a) Install the front fender splash shield sub-assembly RH with the screw.
4. INSTALL ENGINE UNDER COVER NO.1 Installation
