Removal

3MZ-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR:

REMOVAL

1. REMOVE ENGINE UNDER COVER NO.1 Removal

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

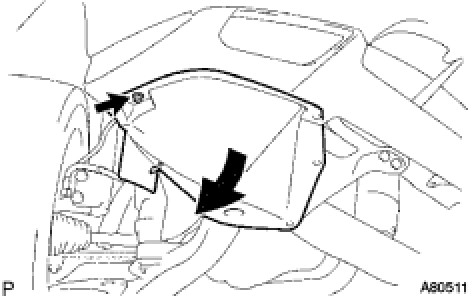

(a) Remove the screw, and then open the front fender splash shield sub-assembly RH.
3. REMOVE FRONT FENDER APRON SEAL RH






(a) Remove the clip and 2 bolts, and then remove the front fender apron seal RH.
4. REMOVE CRANKSHAFT POSITION SENSOR






(a) Disconnect the crankshaft position sensor connector.
(b) Remove the bolt, and then remove the crankshaft position sensor.
