Fail-Safe Chart








CAN COMMUNICATION SYSTEM:

FAIL-SAFE CHART

1. FAIL-SAFE FUNCTION

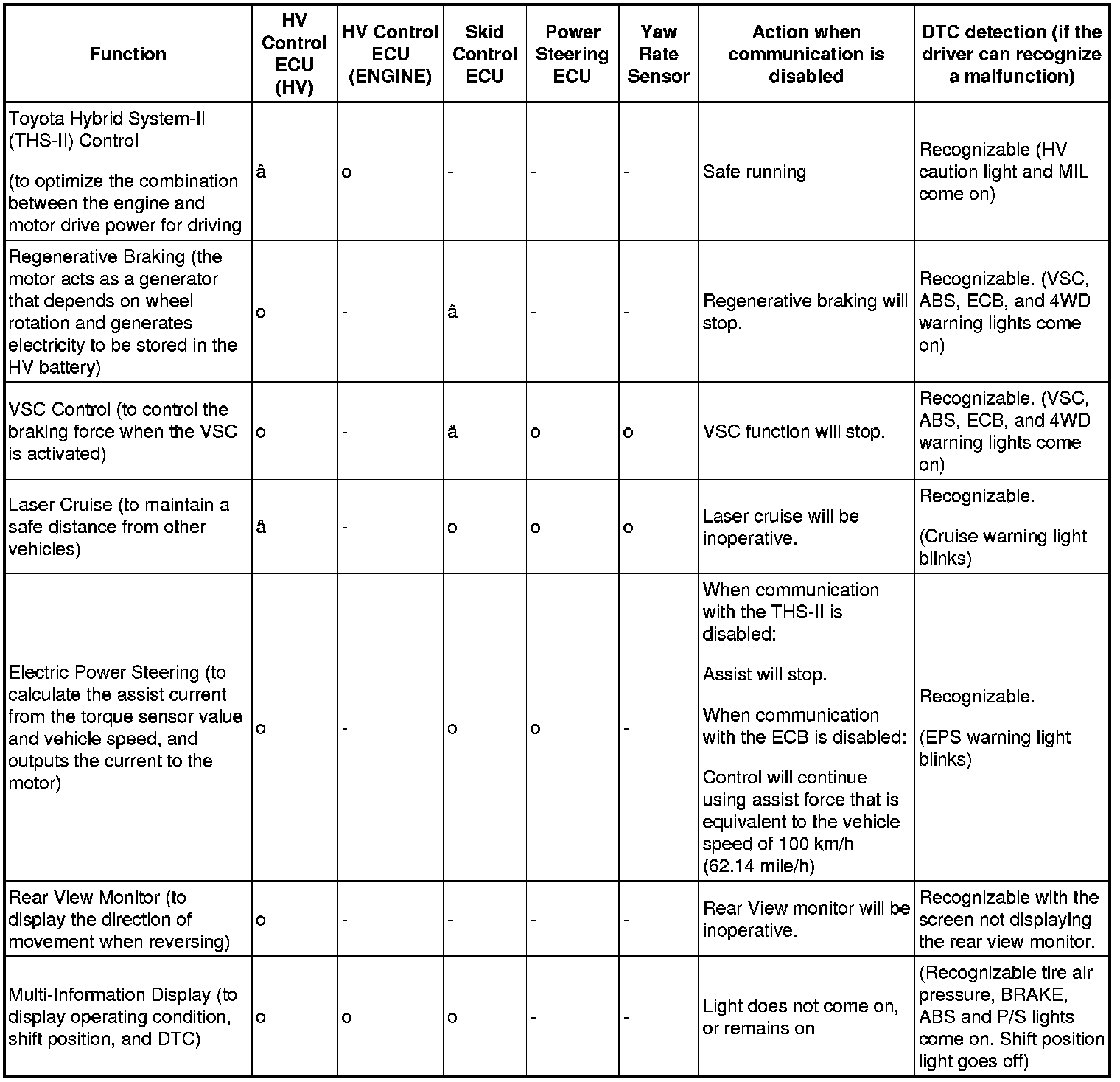

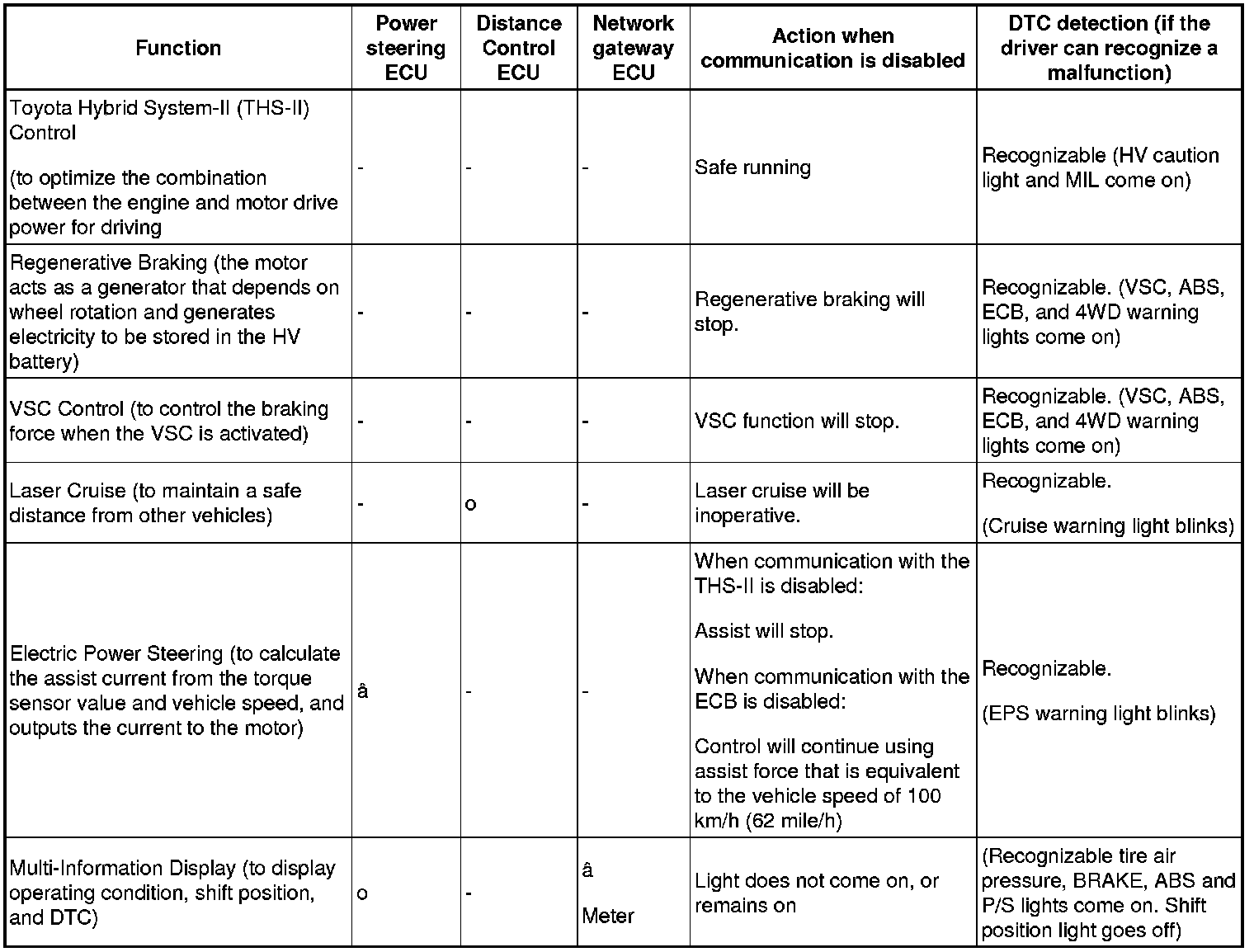

(a) When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or other causes, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.





HINT:
- a : Control master
- o : System related





HINT:
- a : Control master
- o : System related
