System Specifications

CRANKSHAFT PULLEY
Crankshaft pulley x Crankshaft 220 Nm (2,243 kgf-cm, 162 ft. lbf)

TIMING BELT NO.2 COVER





(b) Install the timing belt cover with the 5 bolts.
Torque 8.5 Nm (87 kgf-cm, 75 in-lbf)

TIMING BELT NO.1 COVER
Install the timing belt cover.
Torque 8.5 Nm (87 kgf-cm, 75 in-lbf)

CHAIN TENSIONER ASSEMBLY NO.1





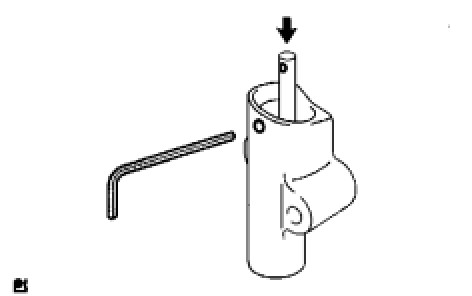

Temporarily install the tensioner with the 2 bolts. Alternately tighten the 2 bolts.
Torque 27 Nm (280 kgf-cm, 20 ft-lbf)

NOTE: Be sure to tighten the bolts equally. Installing the tensioner at an angle may cause improper operation.
