Cruise Control System








CRUISE CONTROL: CRUISE CONTROL SYSTEM: P0575: Cruise Control Input Circuit

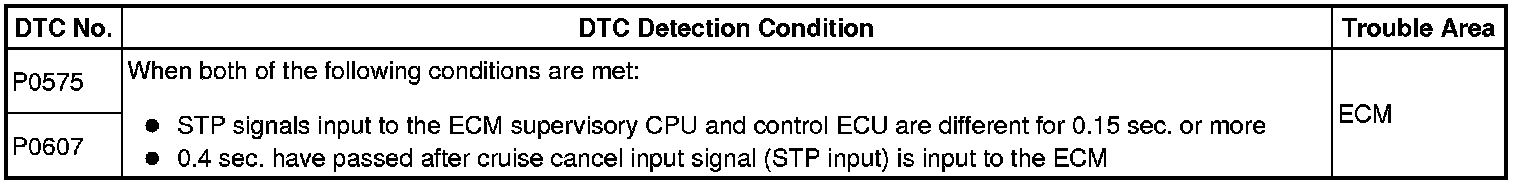

DTC P0575 - Cruise Control Input Circuit

DTC P0607 - Input Signal Circuit Malfunction

DESCRIPTION

This DTC indicates internal abnormalities of the ECM.





HINT: The ECM receives signals from each sensor to control all functions of the cruise control system. When a trouble code is detected, the fail-safe function activates and remains on until the engine switch is turned off.

INSPECTION PROCEDURE

PROCEDURE

1. REPLACE ECM
(a) Replace the ECM Components.
NEXT -- END
