Reassembly

AIR CONDITIONING: BLOWER UNIT: REASSEMBLY

REASSEMBLY

1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY





(a) Install the blower with fan motor sub-assembly with the 3 screws.
2. INSTALL AIR INLET SERVO MOTOR





(a) Install the air inlet servo motor with the 3 screws.
3. INSTALL CLEAN AIR FILTER

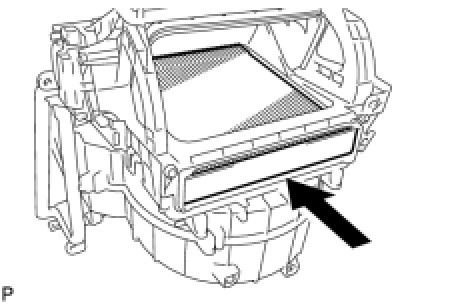

(a) Install the clean air filter as shown in the illustration.
4. INSTALL AIR FILTER COVER PLATE





(a) Engage the 2 claws to install the air filter cover plate.
5. INSTALL AIR DUCT SUB-ASSEMBLY





(a) Engage the 4 claws to install the air duct sub-assembly.
