Installation

LIGHTING: HEIGHT CONTROL SENSOR:

INSTALLATION

1. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH

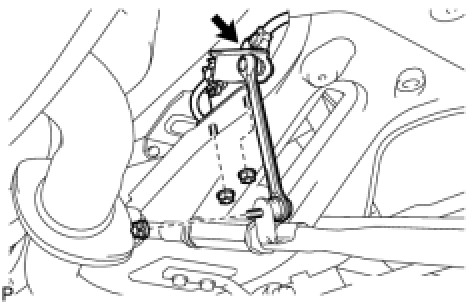

(a) Install the height control sensor sub-assembly rear RH with the 3 nuts.
Rear suspension member side - Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
Lower arm side - Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(b) Connect the connector.
2. HEIGHT CONTROL SENSOR SIGNAL INITIALIZATION Initialization

3. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT Adjustments
4. PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments
5. PREPARATION FOR HEADLIGHT AIMING (Using a Screen) Adjustments
6. HEADLIGHT AIMING INSPECTION Adjustments
7. HEADLIGHT AIMING ADJUSTMENT Adjustments
