2GR-FE ENGINE CONTROL SYSTEM: VVT SENSOR:

INSTALLATION

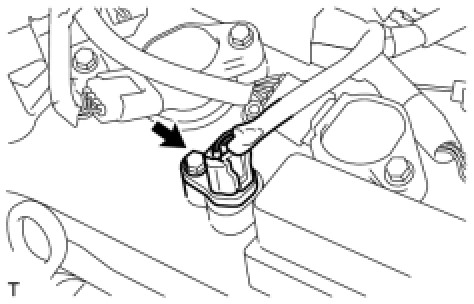

1. INSTALL VVT SENSOR (for Bank 2 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

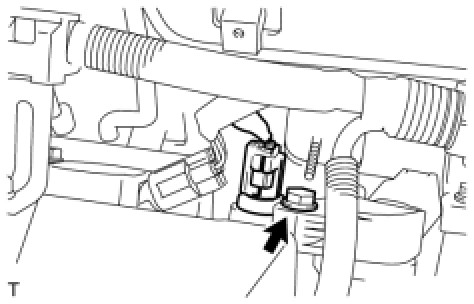

2. INSTALL VVT SENSOR (for Bank 2 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

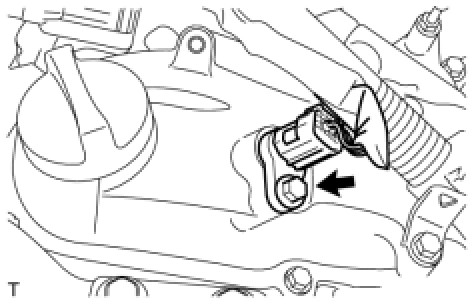

3. INSTALL VVT SENSOR (for Bank 1 Exhaust Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.

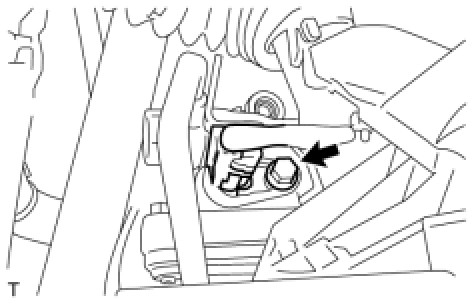

4. INSTALL VVT SENSOR (for Bank 1 Intake Side)





(a) Install the VVT sensor with the bolt.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the VVT sensor connector.
5. INSTALL INTAKE AIR SURGE TANK ASSEMBLY Installation
6. INSTALL NO. 1 AIR CLEANER INLET Installation
7. INSTALL AIR CLEANER CASE SUB-ASSEMBLY Installation
8. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation
9. INSTALL AIR CLEANER INLET ASSEMBLY Installation
10. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
11. ADD ENGINE COOLANT Testing and Inspection
12. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection
13. INSTALL FRONT SUSPENSION UPPER CENTER BRACE Installation
14. INSTALL ENGINE ROOM SIDE COVER LH Installation
15. INSTALL ENGINE ROOM SIDE COVER RH Installation
16. INSTALL COOL AIR INTAKE DUCT SEAL Installation
17. INSTALL ENGINE UNDER COVER RH
18. INSTALL ENGINE UNDER COVER LH
