Wiper and Washer System (w/ Rain Sensor)

WIPER AND WASHER: WIPER AND WASHER SYSTEM (w/ Rain Sensor): PRECAUTION

PRECAUTION
NOTE:

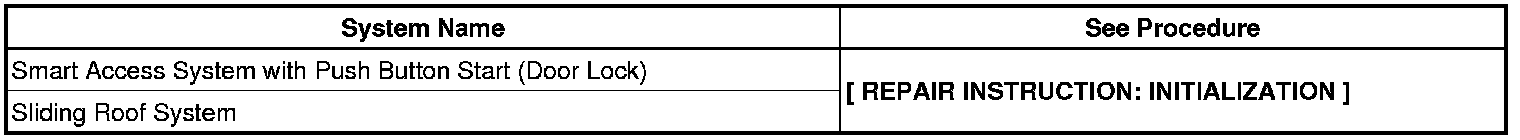

When disconnecting the negative (-) battery terminal, initialize the following system after the terminal is reconnected. Repair Instruction - Initialization





1. PRECAUTION OF WASHER NOZZLE ADJUSTMENT
(a) Do not clean or adjust the washer nozzle with a safety pin, etc. because:
(1) The washer nozzle tip is made of resin and could be damaged.
(2) Adjustment is not necessary for this spray type washer nozzle. If it is necessary to change the nozzle angle, replace the washer nozzle with one that has a different nozzle angle. Adjustments
(b) In case the washer nozzle is clogged with wax, etc., remove it and clean the nozzle hole with a soft resin brush or other cleaning tool.
