2GR-FSE EMISSION CONTROL: AIR FUEL RATIO SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

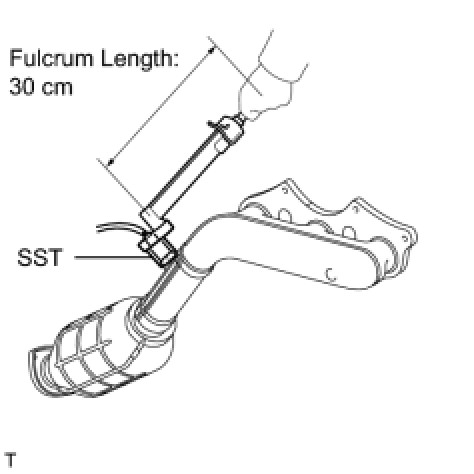

(a) Using SST, install the sensor to the exhaust manifold RH.
SST: 09224-00010
Torque: 40 Nm (408 kgf-cm, 30ft-lbf)for use with SST
Torque: 44 Nm (449 kgf-cm, 32ft-lbf)for use without SST
HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

2. INSTALL AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)





(a) Using SST, install the sensor to the exhaust manifold LH.
SST: 09224-00010
Torque: 40 Nm (408 kgf-cm, 30ft-lbf)for use with SST
Torque: 44 Nm (449 kgf-cm, 32ft-lbf)for use without SST
HINT: Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).

3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH Installation
4. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH Installation
5. INSTALL POWER STEERING ECU ASSEMBLY
(a) Install the power steering ECU Installation.
6. INSTALL FRONT EXHAUST PIPE ASSEMBLY
(a) Install the front exhaust pipe assembly Installation.
7. INSTALL INVERTER WITH CONVERTER
(a) Install the inverter with converter Installation.
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
9. INSTALL SERVICE PLUG GRIP Installation
10. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
