2GR-FSE FUEL: INJECTOR DRIVER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SERVICE PLUG GRIP Removal
3. REMOVE COOL AIR INTAKE DUCT SEAL Removal
4. REMOVE AIR CLEANER INLET





(a) Remove the bolt and air cleaner inlet.
5. REMOVE NO. 1 ENGINE COVER





(a) Remove the 3 clips and cover.
6. REMOVE INJECTOR DRIVER





(a) Disconnect the 4 injector driver connectors.

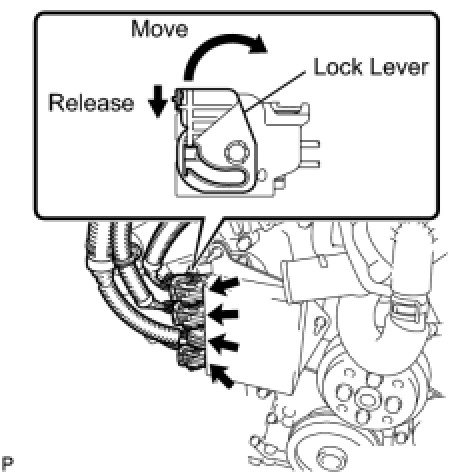

(1) Move the lock lever in the direction indicated by the arrow to release the connector lock. Disconnect the 3 connectors with wire harness locks and the connector from the injector driver.





(b) Remove the bolt, 2 nuts and injector driver.
NOTICE:
Be careful not to drop or strike the injector driver.
