Removal
CRUISE CONTROL: DISTANCE CONTROL ECU: REMOVALREMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation. 2.
REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Removal 3.

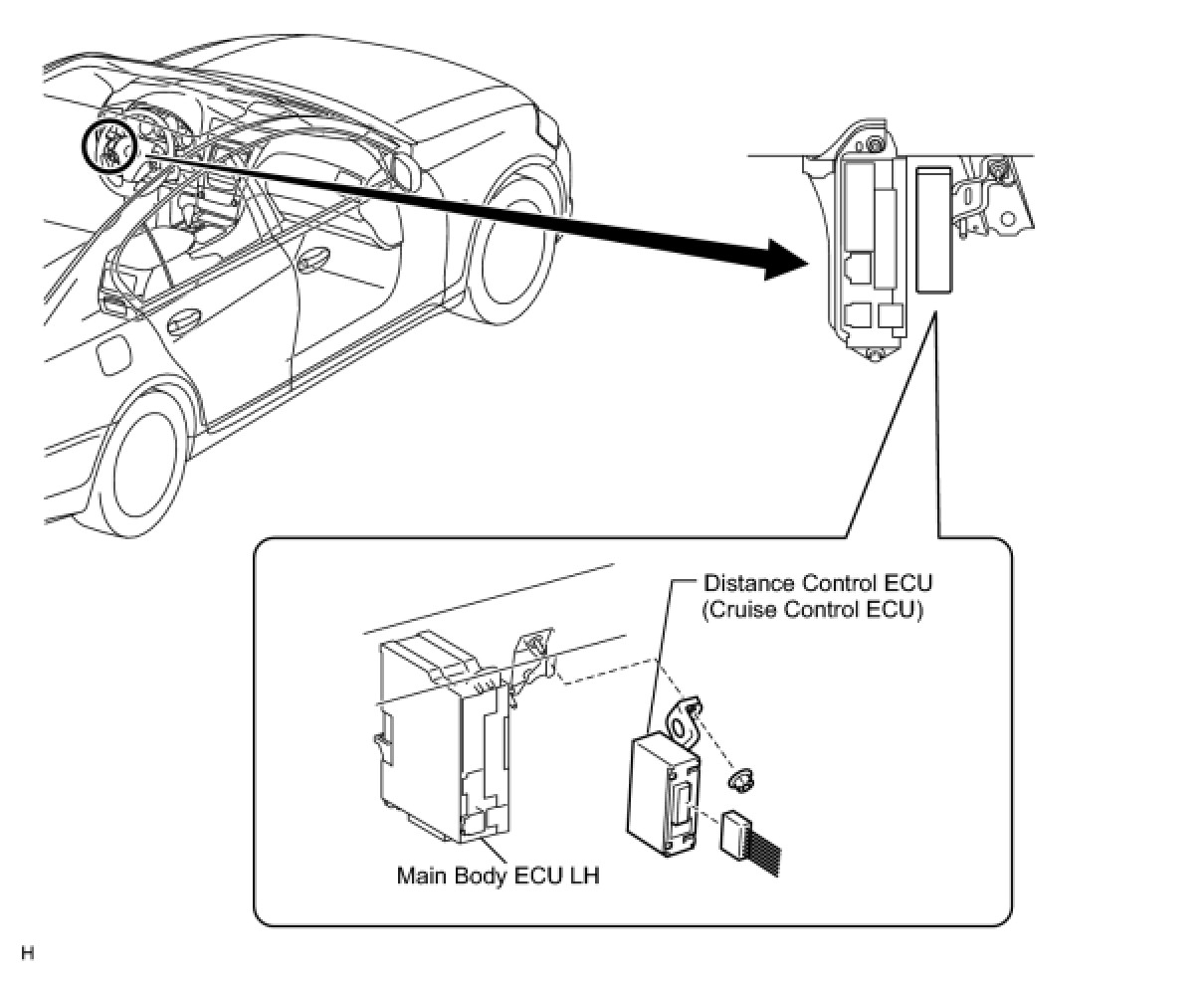

REMOVE DISTANCE CONTROL ECU
(a)
Disconnect the ECU connector.
(b)
Remove the nut and ECU.
