SERVICE SPECIFICATIONS: L110 HYBRID TRANSMISSION / TRANSAXLE: SERVICE DATA

SERVICE DATA





NOTICE:

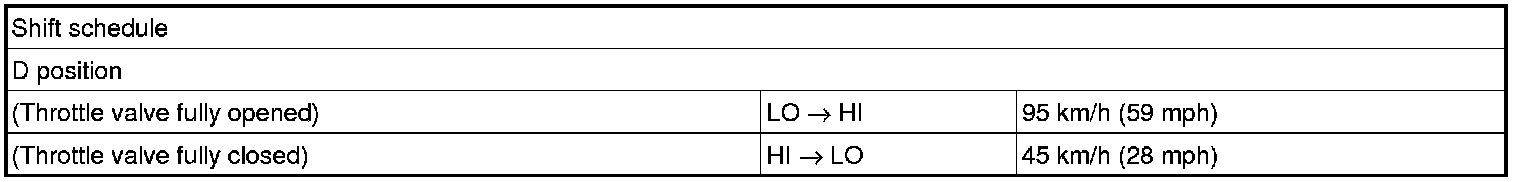

- All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
- If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

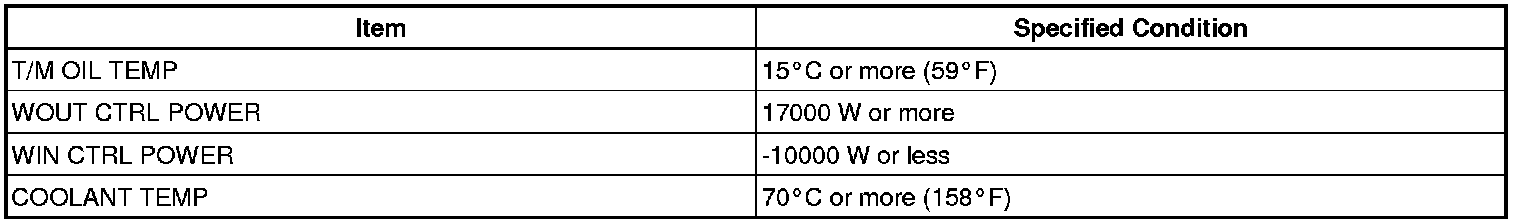

- Make sure that the following conditions are satisfied when checking the shift point.






- Make sure that the shift lever is in the D position when checking the shift point.
- The up shift point speed may not be as specified for the first check. If the up shift point speed is not as specified, check the shift point again. (Repeat the check within 2 hours of the first check.)
