Installation








BRAKE CONTROL: BRAKE CONTROL POWER SUPPLY: INSTALLATION

INSTALLATION

1. INSTALL BRAKE CONTROL POWER SUPPLY ASSEMBLY
(a) Install the 2 brackets with the 4 bolts.
Torque: 13.5 Nm (138 kgf-cm, 10 ft-lbf)

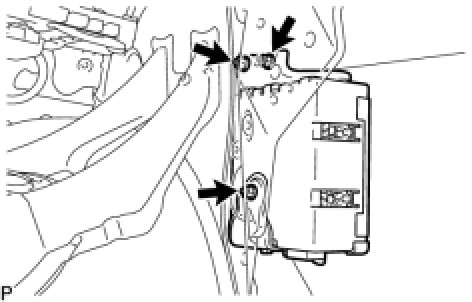

(b) Install the brake control power supply assembly with the 3 nuts.
Torque: 17 Nm (173 kgf-cm, 13 ft-lbf)
(c) Connect the connector to the brake control power supply assembly.
2. INSTALL LUGGAGE COMPARTMENT TRIM COVER SIDE RH
(a) Install the luggage compartment trim cover side RH with the clip.
(b) Install the rope hook assembly.
3. INSTALL LUGGAGE COMPARTMENT TRIM COVER FRONT
(a) Install the luggage compartment trim cover front with the clip.
4. INSTALL LUGGAGE COMPARTMENT TRIM NO.2 HOOK
(a) Install the 2 luggage compartment trim No.2 hooks.
5. INSTALL ROPE HOOK
(a) Install the 2 rope hooks.
6. INSTALL REAR FLOOR FINISH PLATE
(a) Install the rear floor finish plate with the clip.
7. INSTALL ROPE HOOK ASSEMBLY
(a) Install the 2 rope hook assembly.
8. INSTALL LUGGAGE COMPARTMENT TRIM NO.1 COVER
(a) Install the luggage compartment trim No.1 cover
9. INSTALL LUGGAGE COMPARTMENT FLOOR MAT
(a) Install the luggage compartment floor mat.
10. CONNECT BATTERY CABLE TO BATTERY NEGATIVE TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

11. CHECK AND CLEAR DTC
Electronically Controlled Brake System
