Installation
2UZ-FE ENGINE MECHANICAL: DRIVE BELT: INSTALLATIONINSTALLATION 1.
INSTALL FAN AND GENERATOR V BELT
(a)

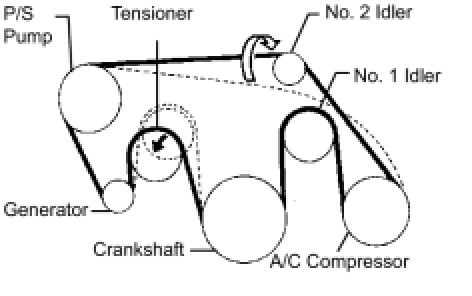

Set the V belt onto every parts except the No. 2 idler pulley, as shown in the illustration.
(b)
Loosen the V belt by turning the belt tensioner counterclockwise.
(c)
Set the V belt to the No. 2 idler pulley.
(d)

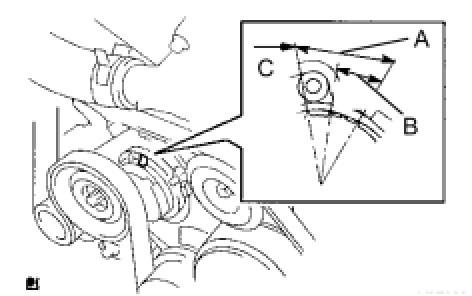

After installing a new belt, check that the mark is within the B range as shown in the illustration.
