Disassembly

INSTRUMENT PANEL: REAR CONSOLE BOX: DISASSEMBLY

DISASSEMBLY

1. REMOVE CONSOLE BOX CUP HOLDER SUB-ASSEMBLY

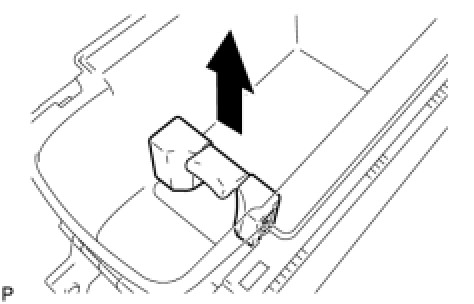

(a) Remove the console box cup holder sub-assembly.
NOTE:
When removing the console box cup holder sub-assembly, do not hold the center part of the sub-assembly in order to prevent the cup holder from breaking.

2. REMOVE FRONT UPPER CONSOLE PANEL GARNISH

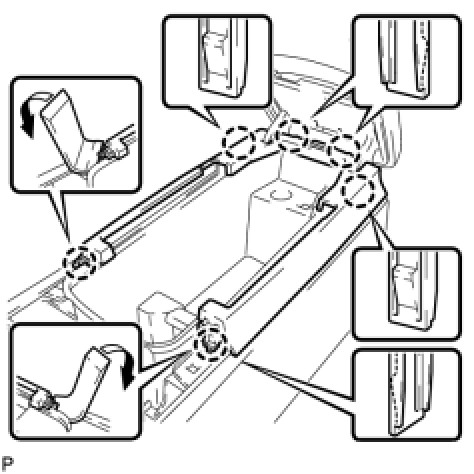

(a) Using a moulding remover, disengage the 2 claws.
(b) Disengage the 4 claws and remove the front upper console panel garnish.
3. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

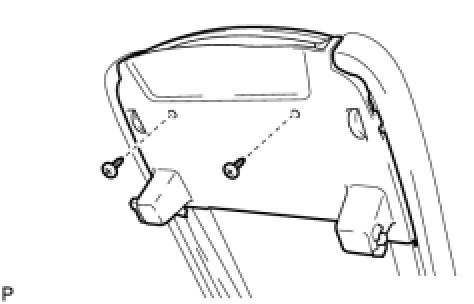

(a) Remove the 2 screws.

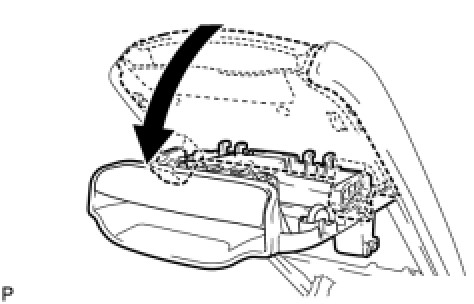

(b) Open the console compartment door lock sub-assembly in the direction indicated by the arrow to remove it.
4. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

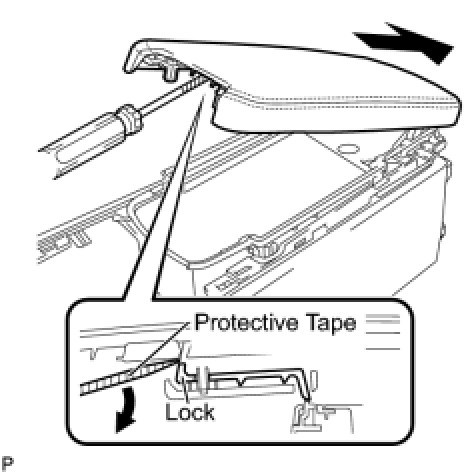

(a) While pushing down on the lock using a screwdriver with its tip taped, slide the console door in the direction shown by the arrow to remove it.
5. REMOVE CONSOLE COMPARTMENT DOOR CUSHION
(a) Remove the 2 console compartment door cushions from the console box.
6. REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

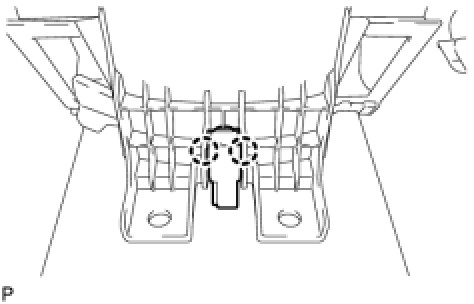

(a) Disengage the 2 claws and remove the console box illumination light assembly.
7. REMOVE POWER OUTLET SOCKET ASSEMBLY Removal
8. REMOVE POWER POINT SOCKET COVER
(a) Disengage the 2 claws and remove the power point socket cover.
9. REMOVE AUDIO TERMINAL Removal
