Torque Specifications
SERVICE SPECIFICATIONS: 4GR-FSE ENGINE MECHANICAL: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
DRIVE BELT
ENGINE FRONT OIL SEAL

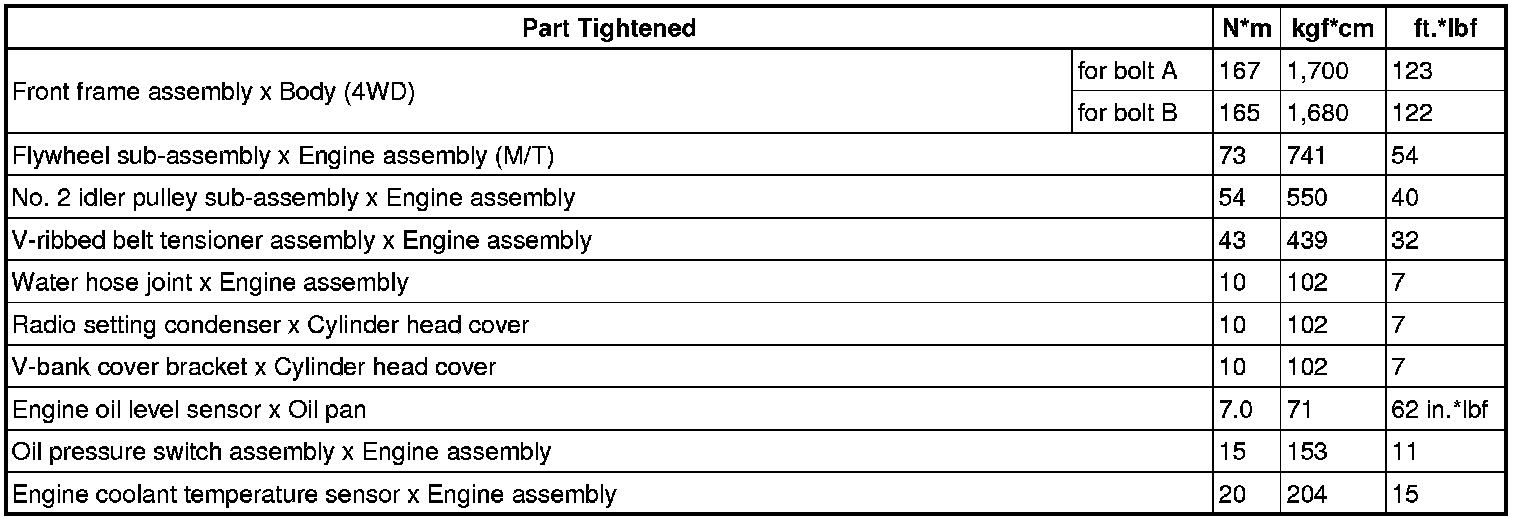

ENGINE ASSEMBLY

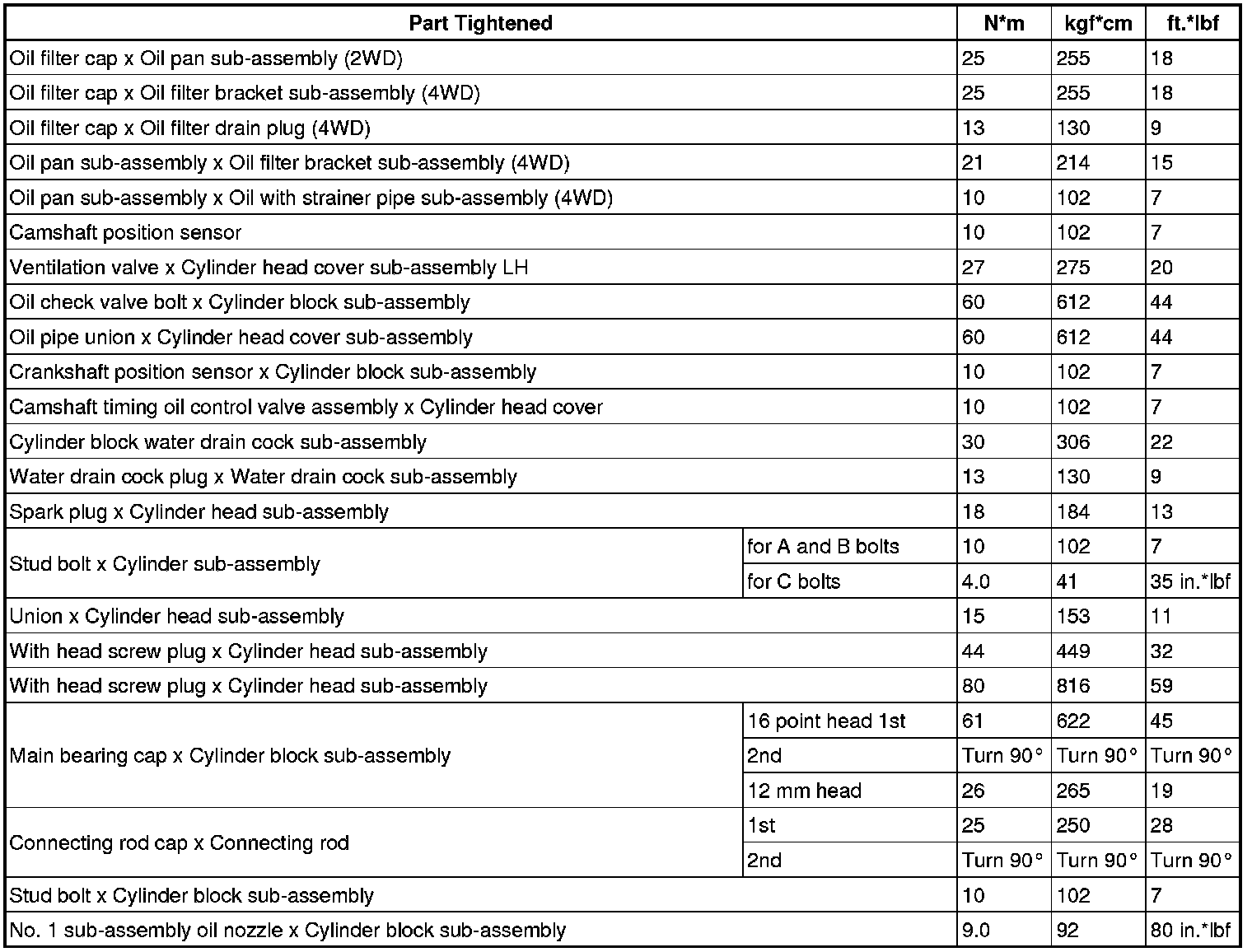

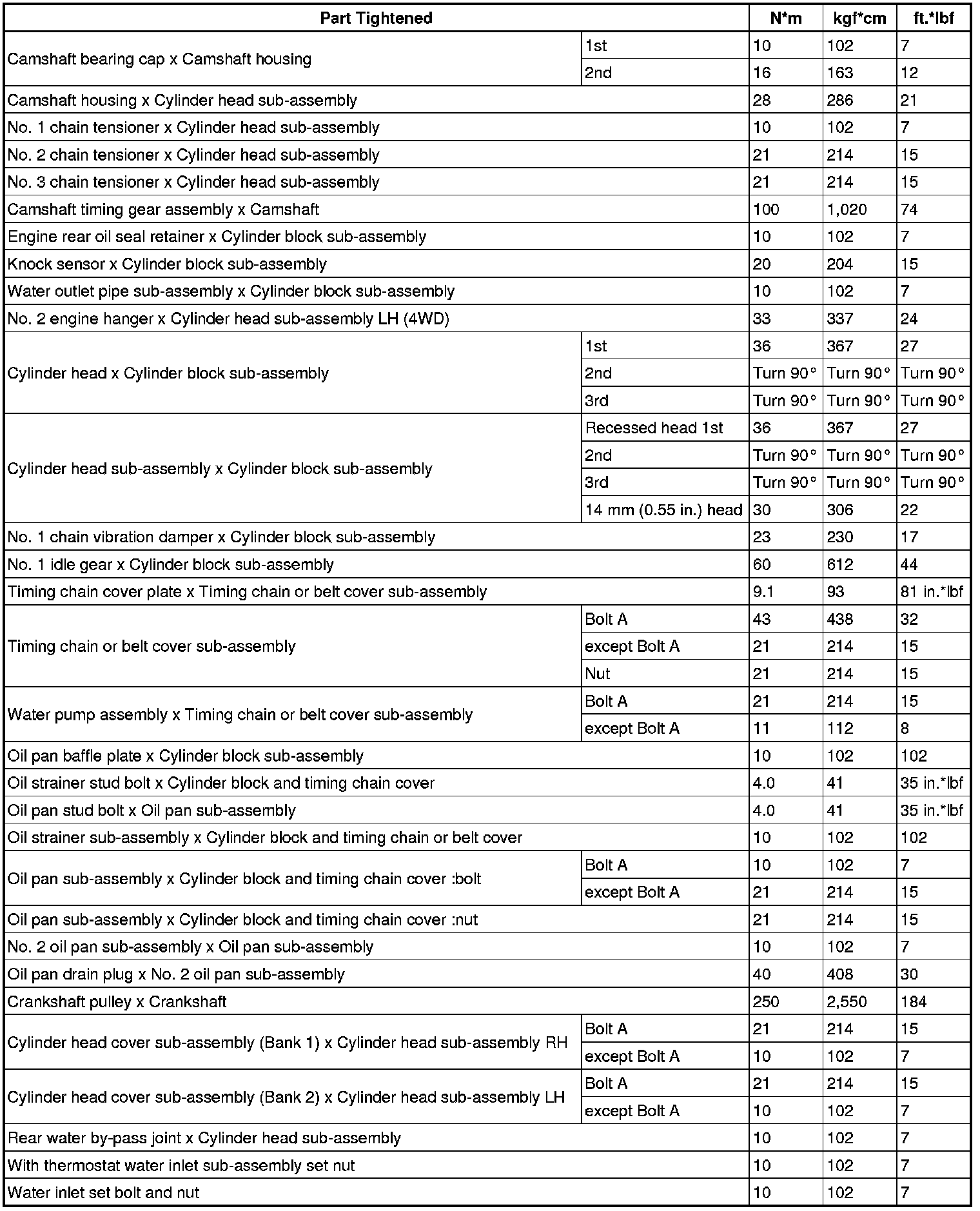

ENGINE UNIT
Intake Manifold Nuts and Bolts 21 Nm (214 kgf-cm, 15 ft-lbf)
Cylinder Head Bolt Reusability
Standard outside diameter: 10.85 to 11.00 mm (0.4272 to 0.4331 in.)
Minimum outside diameter: 10.70 mm (0.4213 in.)
Measuring Point: 100 mm (3.94 in.)
If the diameter is less than the minimum, replace the cylinder head bolt.
