Installation








AIR CONDITIONING: WATER HOSE JOINT: INSTALLATION

INSTALLATION

1. INSTALL WATER HOSE JOINT

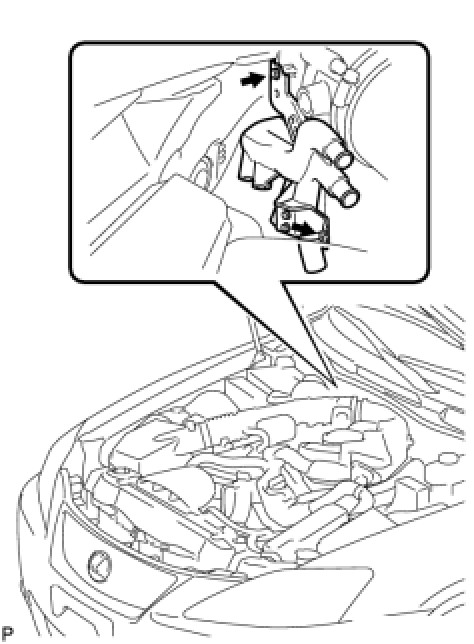

(a) Connect the 2 hoses, and install the water hose joint with the 2 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
2. INSTALL WATER BY-PASS GLOW PLUG Installation
3. INSTALL HEATER WATER INLET HOSE Installation
4. INSTALL HEATER WATER OUTLET HOSE Installation
5. INSTALL V-BANK COVER Installation
6. ADD ENGINE COOLANT Testing and Inspection
7. WARM UP ENGINE Service and Repair
8. CHECK FOR ENGINE COOLANT LEAKS Testing and Inspection
