Camshaft Bearing


IS350 - V6-3.5L (2GR-FSE)

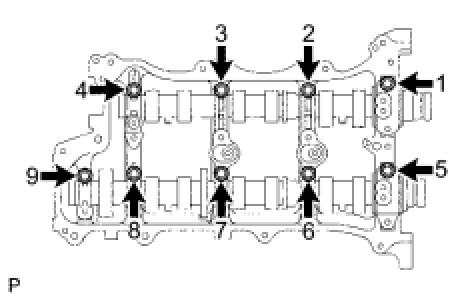

Camshaft Bearing Caps (Bank 1):






Camshaft Bearing Caps (Bank 2):






IS250 - V6-2.5L (4GR-FSE)

Camshaft Bearing Caps (Bank 1):






Camshaft Bearing Caps (Bank 2):






Camshaft bearing cap x Camshaft housing
1st Pass: 10 Nm (102 kgf-cm, 7 ft.lbf)
2nd Pass: 16 Nm (163 kgf-cm, 12 ft.lbf)
