DOOR LOCK: DOOR CONTROL RECEIVER (for Luggage Compartment): REMOVAL

REMOVAL

1. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM COVER
2. REMOVE DECK SIDE TRIM BOX LH
3. REMOVE DECK SIDE TRIM BOX RH

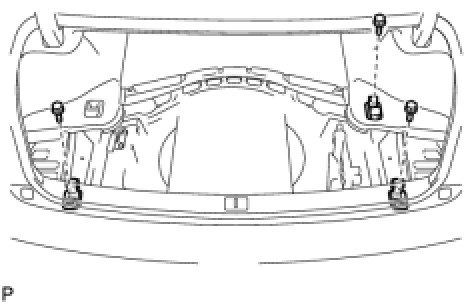

4. REMOVE ROPE HOOK ASSEMBLY





(a) Remove the 3 bolts and 3 rope hook assemblies.
5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER Removal
6. REMOVE NO. 2 ROOM LIGHT ASSEMBLY Removal
7. REMOVE ROPE HOOK Removal
8. REMOVE NO. 2 LUGGAGE COMPARTMENT TRIM HOOK Removal
9. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER Removal
10. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK





(a) Remove the screw and the No. 1 luggage compartment trim hook.

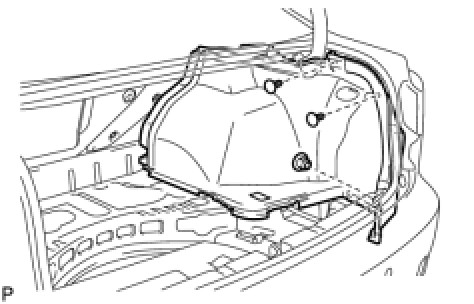

11. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER RH





(a) Using a clip remover, remove the 3 clips and side luggage compartment trim cover RH.

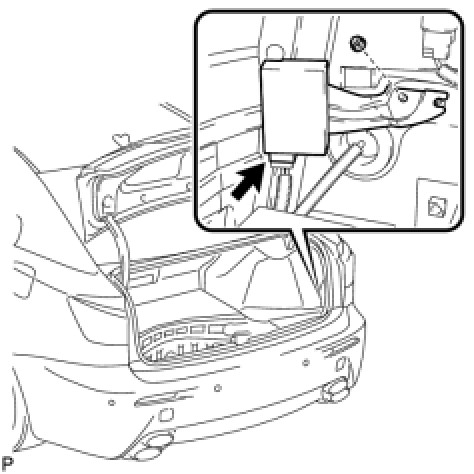

12. REMOVE NO. 2 DOOR CONTROL RECEIVER





(a) Disconnect the connector.
(b) Remove the nut and No. 2 door control receiver.
