Installation








CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: INSTALLATION

INSTALLATION

1. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY

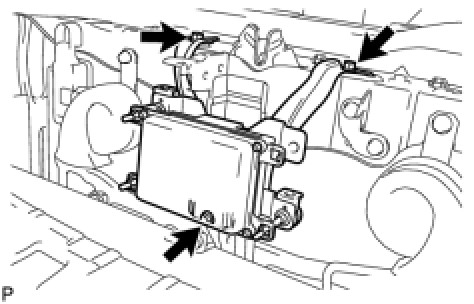

(a) Install the millimeter wave radar sensor with the 3 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
(b) Connect the connector.
2. INSTALL FRONT BUMPER ASSEMBLY Installation
3. INSTALL RADIATOR GRILLE PROTECTOR Installation
4. INSTALL COOL AIR INTAKE DUCT SEAL Installation
5. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY Adjustments
6. ADD WASHER FLUID (w/ Headlight Cleaner System) Installation
7. VEHICLE PREPARATION FOR FOG LIGHT AIMING ADJUSTMENT Adjustments
8. PREPARATION FOR FOG LIGHT AIMING Adjustments
9. INSPECT FOG LIGHT AIMING Adjustments
10. ADJUST FOG LIGHT AIMING Adjustments
