Installation








TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING RECEIVER ASSEMBLY





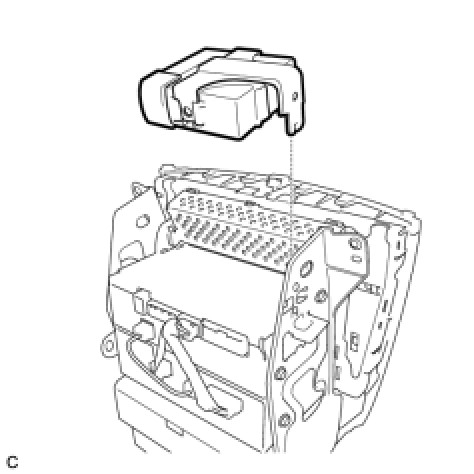

(a) Install the tire pressure warning receiver assembly.

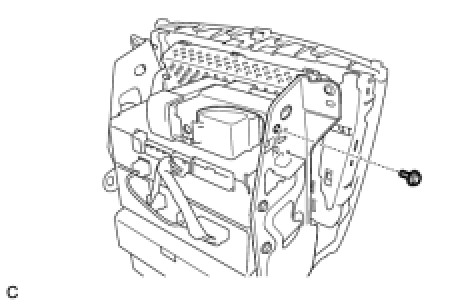

(b) Install the bolt.
Torque: 3.5 Nm (36 kgf-cm, 31 in-lbf)
2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) Installation
3. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) Installation
4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL Installation
5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
6. INSTALL FRONT ASH RECEPTACLE ASSEMBLY Installation
7. INSTALL CONSOLE PANEL SUB-ASSEMBLY Installation
8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH Installation
9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH Installation
10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. REGISTER OF TRANSMITTER ID
Registration.
13. INSPECT TIRE PRESSURE WARNING SYSTEM
Test Mode Procedure.
