Installation
2UR-GSE ENGINE CONTROL: MASS AIR FLOW METER: INSTALLATIONINSTALLATION 1.

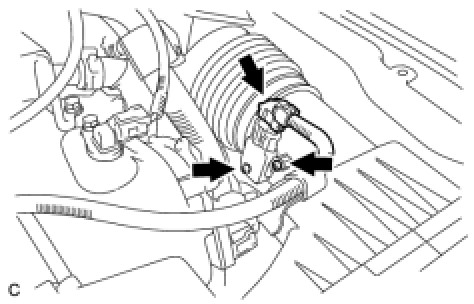

INSTALL MASS AIR FLOW METER
(a)
Install the MAF meter with the 2 screws.
Torque: 1.0 Nm (10 kgf-cm, 9 in-lbf) NOTE: Make sure that the O-ring is not pinched.
(b)
Connect the MAF meter connector.
2.
INSTALL ENGINE ROOM SIDE COVER RH
Installation 3.
INSTALL COOL AIR INTAKE DUCT SEAL
Installation 4.
INSTALL V-BANK COVER SUB-ASSEMBLY
Installation
